XR1-2400
XR1-2400

XR1-2400

FPVTHAI
420.00 ฿
420.00 ฿
Shipping calculated at checkout.

Specification

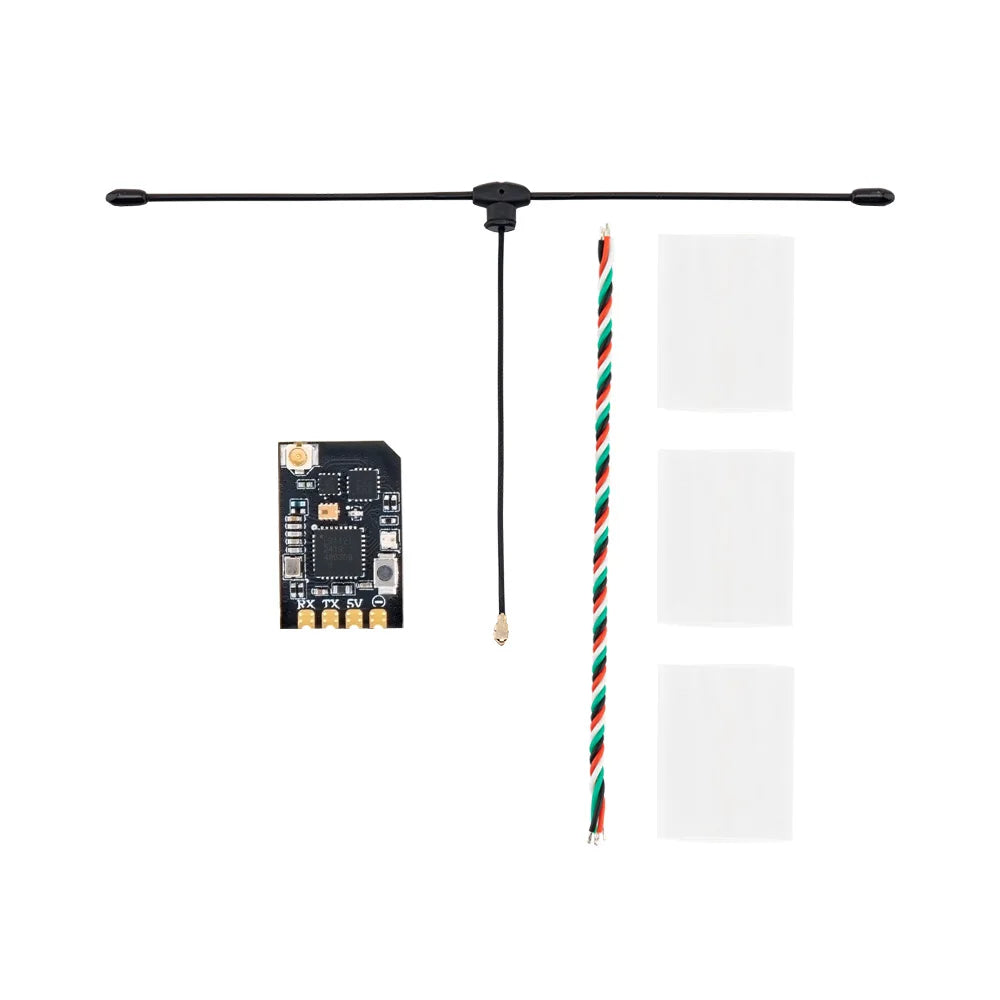

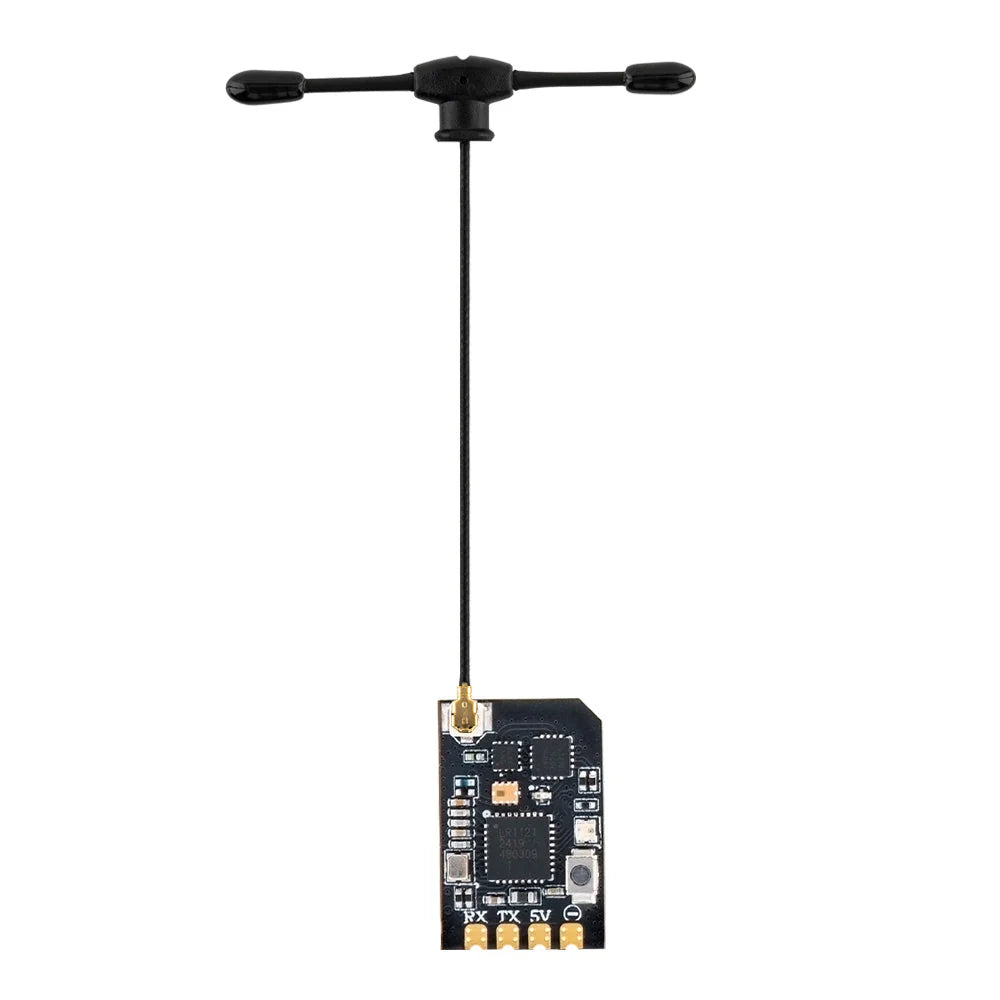

  • Item: XR1 Nano Multi-Frequency  ExpressLRS Receiver
  • Type: ISM2.4 or CE868
  • MCU: ESP32C3
  • RF chip: Semtech LR1121
  • RF connector: IPEX-1
  • Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
  • Frequency Range: 2.4GHz or Sub-G 900MHz
  • Telemetry Power: 100mW
  • Maximum Packet rate: DK500Hz / K1000Hz
  • Minimum Packet refresh rate: 50Hz
  • Working voltage: 5V
  • Weight: 1.0g (without antenna)
  • Dimension: 20mm * 13mm * 3mm
  • Firmware Version: ExpressLRS v3.5.1 pre-installed
  • FW Target:  RadioMaster XR1 2.4/900 RX
  • Bus interface 1: CRSF
  • Bus interface 2: UART
