PRODUCT DESCRIPTION
iFlightRC is privileged to announce the release of the XL Series V4 Frames, the XL Series V4 frames are the achievement of Team iFlight Pilots, customers experience in FPV and the advancements of flight technology and improvement to onboard electronics. In the past few years, so many electronics advances make the XL frames to be updated again. In order to keep things compact, light and simple to be assembled. We kept 2 options for the flystack mounting(20*20mm & 30.5*30.5mm) to ensure the perfect fit for any and all of your flight hardware. Kept the arms swaps much more easily.
The main advantages of the XL Series V4 are in the flight performance, the stronger and thicker arms. The XL Series V4 frames fly balanced because of the true X configuration and wide stance. This main changings makes flight stability in the air.
Main Features:
-Full 3K Carbon Fiber airframe

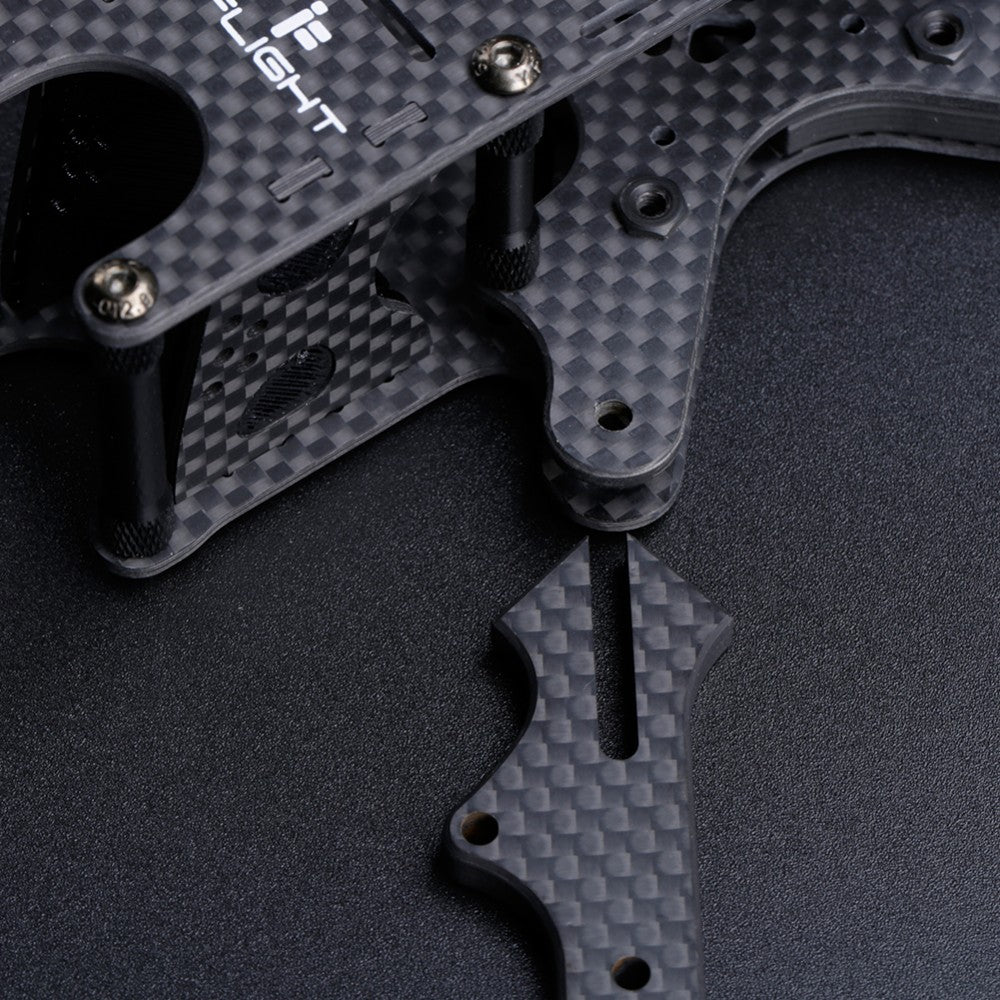

-Easy arm swaps
-7" version fits popular 7" style propellers
-Popular True-X configuration

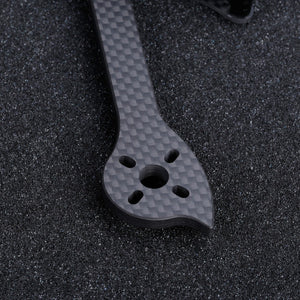

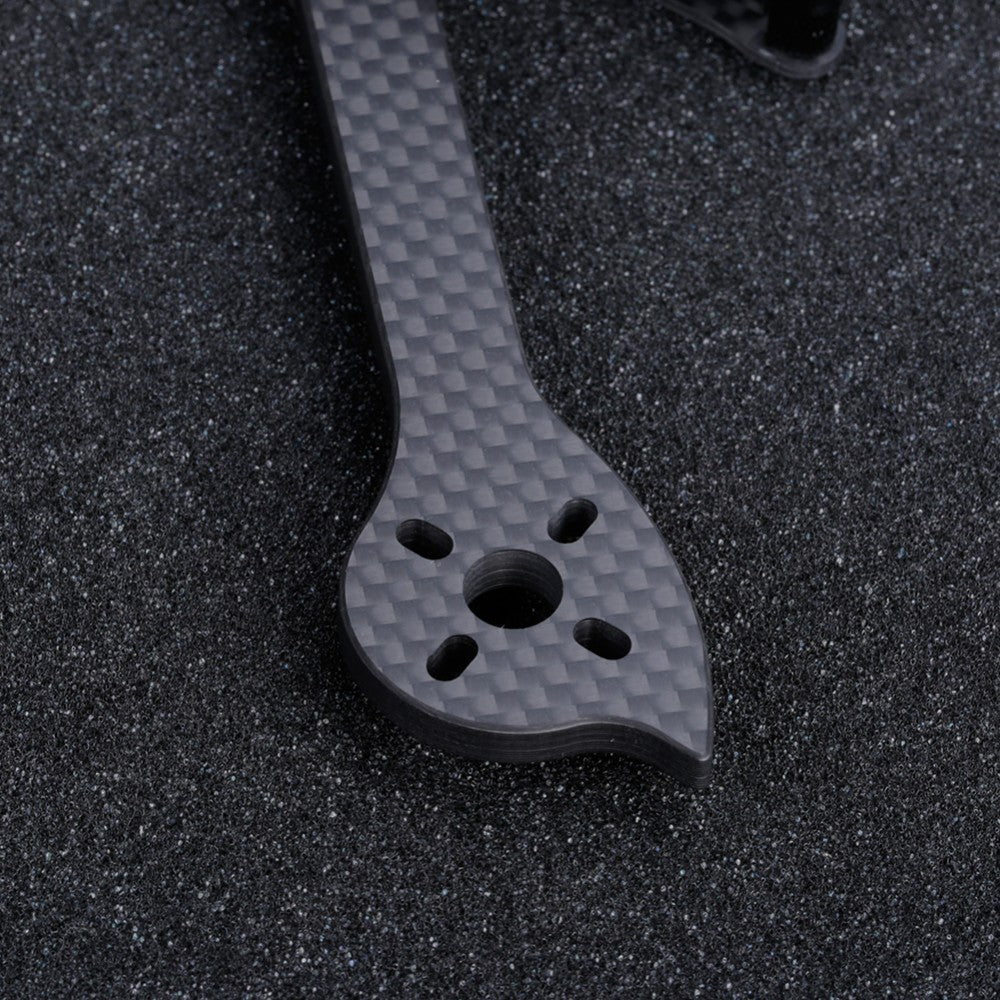

-The motor guard on the end of the arms to protect the motor during a crash
-Fits both 30.5x30.5 and 20x20 stacks
Specifications:
- Frame weight:119.1g approx
- Wheelbase: 285mm
- Body Dimensions: 202x202mm

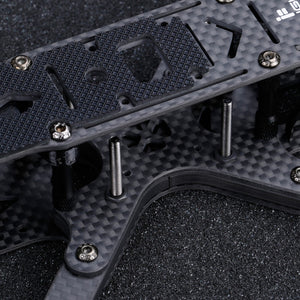

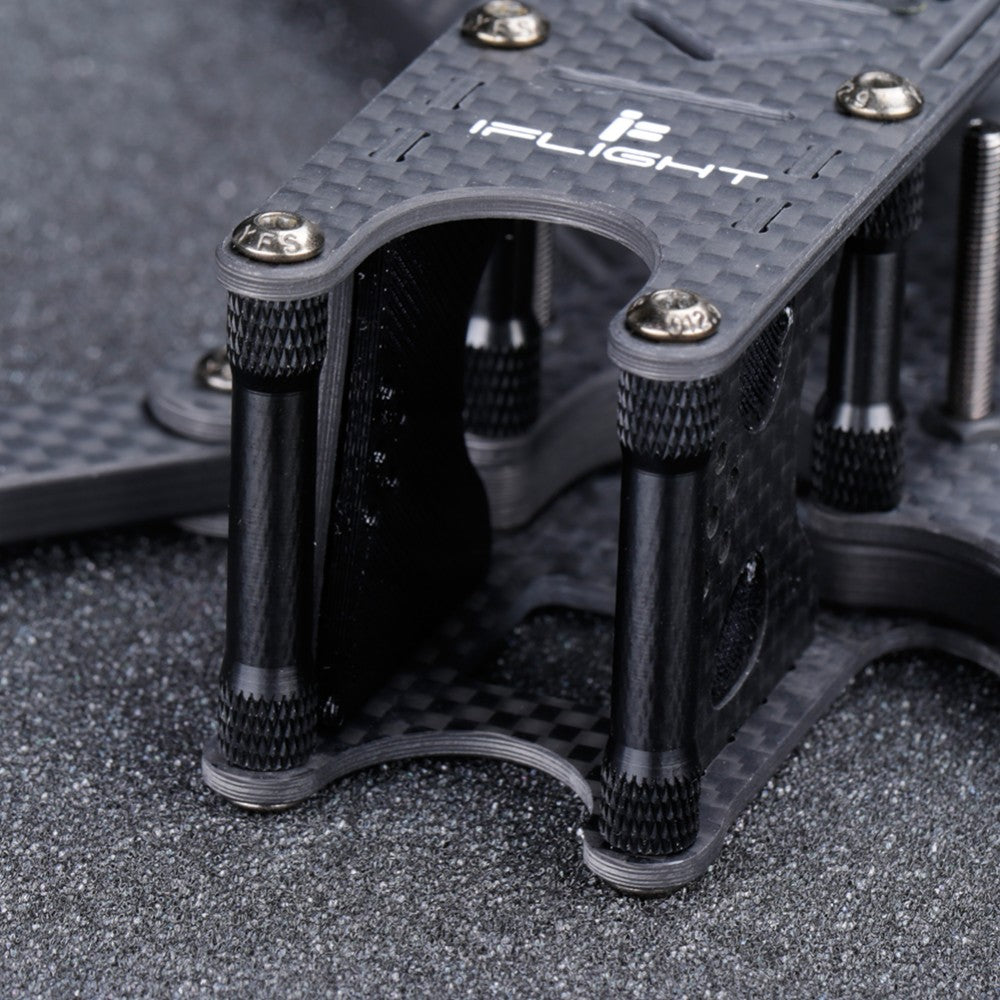

- Standoff Height: 25mm (4pcs), 32mm(4pcs)
- 5mm arms, 1.5mm vertical side plates
- 2mm top, upper & bottom plate
- Mounting Holes: 30.5*30.5mm, 20*20mm
Recommended parts (not included):
Flight controller (30.5*30.5mm, 20*20mm):
SucceX F7 TwinG V2.1
SucceX F4 TwinG V2.1
Flight tower system without VTX: 30.5*30.5:
SucceX F7 V2.1 TwinG + 60A V2 Plus ESC
SucceX F4 V2.1 TwinG +50A ESC
SucceX Flytower system with VTX: (20*20MM)
SucceX Mini F4 V3 TwinG
SucceX Mini F7 V3 TwinG
Motor:
XING-E 2207 2208 2306
XING 2206 2207 2208 2308:
XING CAMO 2207 2208 2306
Propeller: 7 inch
Camera: 22mm & 19mm width
VTX: 500mW, the Force Long-range 1W VTX
Battery: 4S Lipo batteries

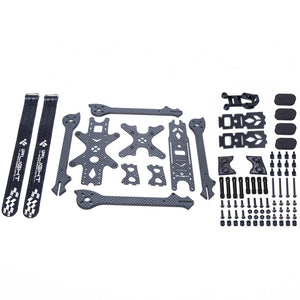

Package included:
1set x XL7 V4 frame
1pack x screws
1set x TPU Camera mount adapters
1pc x TPU VTX antenna mount
2pcs x battery anti-slip mat
2pcs x battery straps (the color will be shipped randomly)
