PRODUCT DESCRIPTION
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.

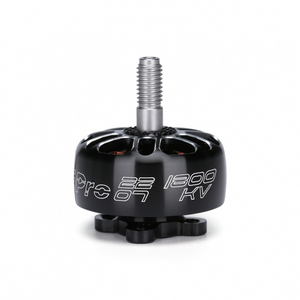

This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features
-High-strength 4mm Steel shaft
-N52H High-temperature magnets, NSK bearings
-16x16mm hole pattern
-Single strand copper winding
-Hex bolt shaft set screw
Specifications
-Configuration: 12N14P
-Stator Diameter: 22mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 4mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension: 28.5x19.7mm
-Weight: 33.8g (150mm wires)
-Idle Current @12.6v (Io): 1.2 A
-Cells (LiPo): 2-6S
-Max Burst Current <10s: 35.22A
-Max Power (W) 60s: 845W
-Internal Resistance (Rm): 81.5mΩ
-Motor Wire Length: 150mm / 20AWG
Package included:
1pc x MOTOR XING-E Pro 2207 motor
