PRODUCT DESCRIPTION
Features:
*5mm outer titanium alloy shaft
*Japanese NSK φ8*φ3*4 bearings
*N52H curved magnets
*Motor wires protected
*Dynamically balanced
Specification

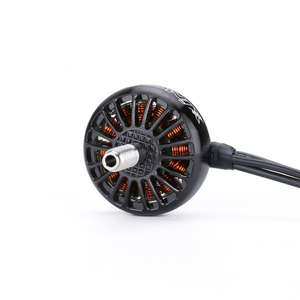

- Model: XING 2203.5
- KV: 3600kv
- Version: CW Screw Thread
- Input Voltage: 4S/6S Lipo
- Configuration: 12N14P
- Stator Diameter: 22mm
- Stator Length: 3.5mm
- Weight: 19.7g with short wire
- Wire length: 22AWG 150mm
- Mounting pattern: 12*12mm
Package includes:
1x XING 2203.5 Brushless Motor (KV is optional)
4x m2*6 screws
1x M5 Flanged Nylon Insert Lock Nut
NOTE: propeller does not include.
