Toothpick F4 2-4S AIO Brushless Flight
Controller 12A(BLHeli_S)

Toothpick F4 2-4S AIO Brushless Flight Controller 12A(BLHeli_S)

Vendor
BETAFPV
Regular price
Sold out
Sale price
2,400.00 ฿
Unit price
per
Shipping calculated at checkout.

  • New layout with whoop mounting pattern, designed real holes instead of notches, customized for Toothpick Drone
  • Adopt USB side-mount, easy to plug in
  • All of solder pads are at the edge of FC, which is a convenience to solder
  • Double-sided motor solder pad. Pins pad and wires pad are both built-in for motors connection
  • Integrated with a Betaflight MATEKF411RX processor FC, Betaflight OSD and 2-4S 12A ESC, support 4S battery for fast-flying experience

    Recommended Battery and Motor Combo

    Through multiple unit testing, we make a conclusion of the perfect match under various situation. If you set up your kit with the unmatch batteries and motor, the power and the performance will be inperfect.

    Comparison of F4 12A AIO FC and Toothpick 12A AIO FC

    Both borads are designed in the same size for micro whoop drone, we refine the toothpick 12A AIO FC with a real holes based the feedback of some of our customer and for better mount on the toothpick drone.

    Double-sided Motor Solder Pad
    Support connect with motors via connectors or solder directly

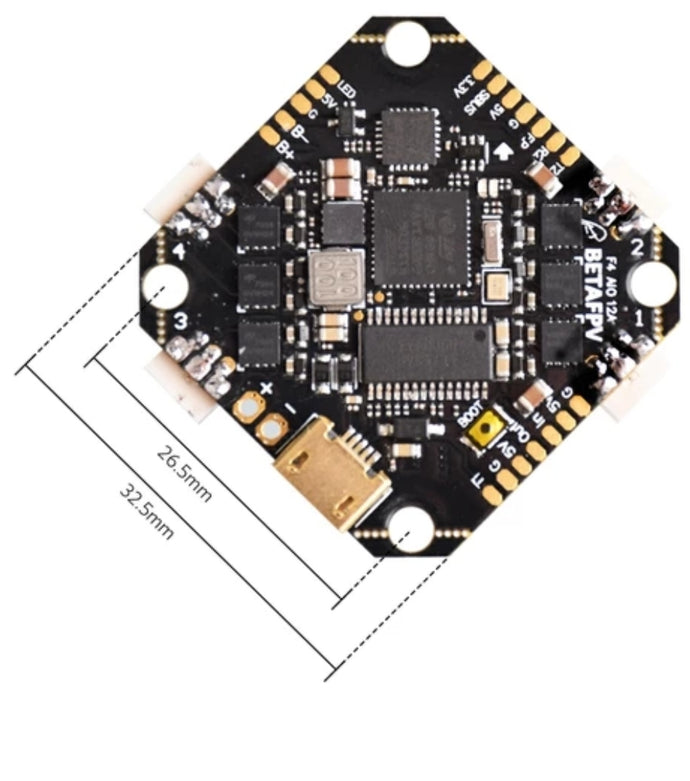

    Whoop Mounting Pattern and Real Holes of Mounting Holes
    Whoop size with 26.5*26.5mm mounting holes

    SPECIFICATIONS OF FC

      • CPU: STM32F411CEU6 (100MHZ)
      • Six-Axis: MPU6000 (SPI connection)
      • Size: 32.5*32.5mm (26.5mm mounting holes)
      • Firmware version: Betaflight MATEKF411 (MK41)
      • OSD: Build-in BetaFlight OSD (OSD chip: AT7456E)
      • Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver.
      • Support programmable LED like WS2812 etc
      • Built-in current sensor
      • Weight: 6.2g(Without Pins), 6.5g(Pins Pre-solder)

      SPECIFICATIONS OF ESC

      • Support BLheli/BLHELI_S suite Pass-through ready
      • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
      • Input voltage: 2S-4S Lipo
      • Continue current: 12A
      • Peak current: 15A
      • Firmware: BLHELI_S
      • Processor: SILABS EFM8BB21F16G-C
      • Motor Connectors: 1.25mm header pins connector
      • Factory firmware: G-H-30-16.7

      DIAGRAM FOR Toothpick F4 2-4S AIO FC
