Vendor
iFlight
Regular price
2,600.00 ฿
Sale price
2,600.00 ฿
Unit price
per
Shipping calculated at checkout.

PRODUCT DESCRIPTION

Kindly note : the original DJI FPV Air Unit MMCX 90° to SMA Cable is short for DC7 assembling, please select the choose option"MMCX to RP-SMA Female Adapter Cable (pair)".

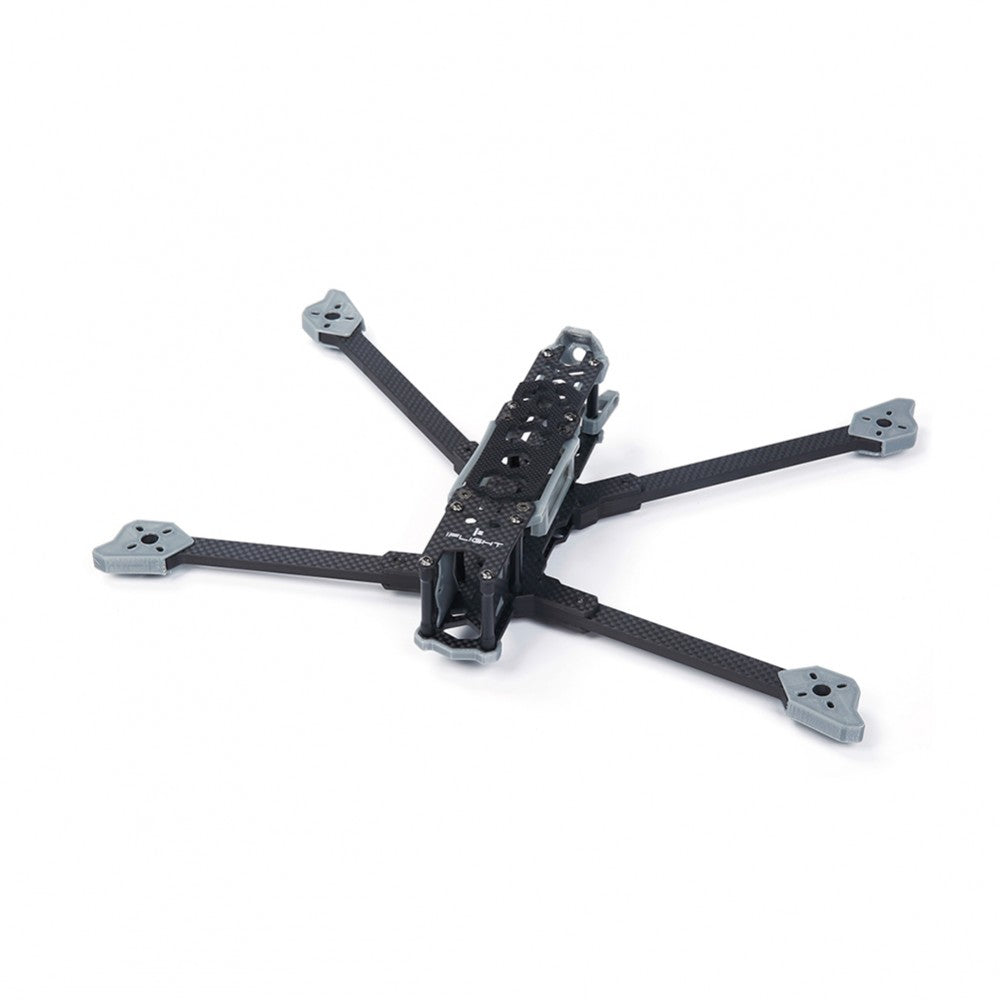

The TITAN DC7 HD Frame perfect fits the amazing new DJI FPV system with boomerang arms, this quad makes flying FPV truly breathtaking.

Features:

- Popular Deadcat style configuration, No prop in View

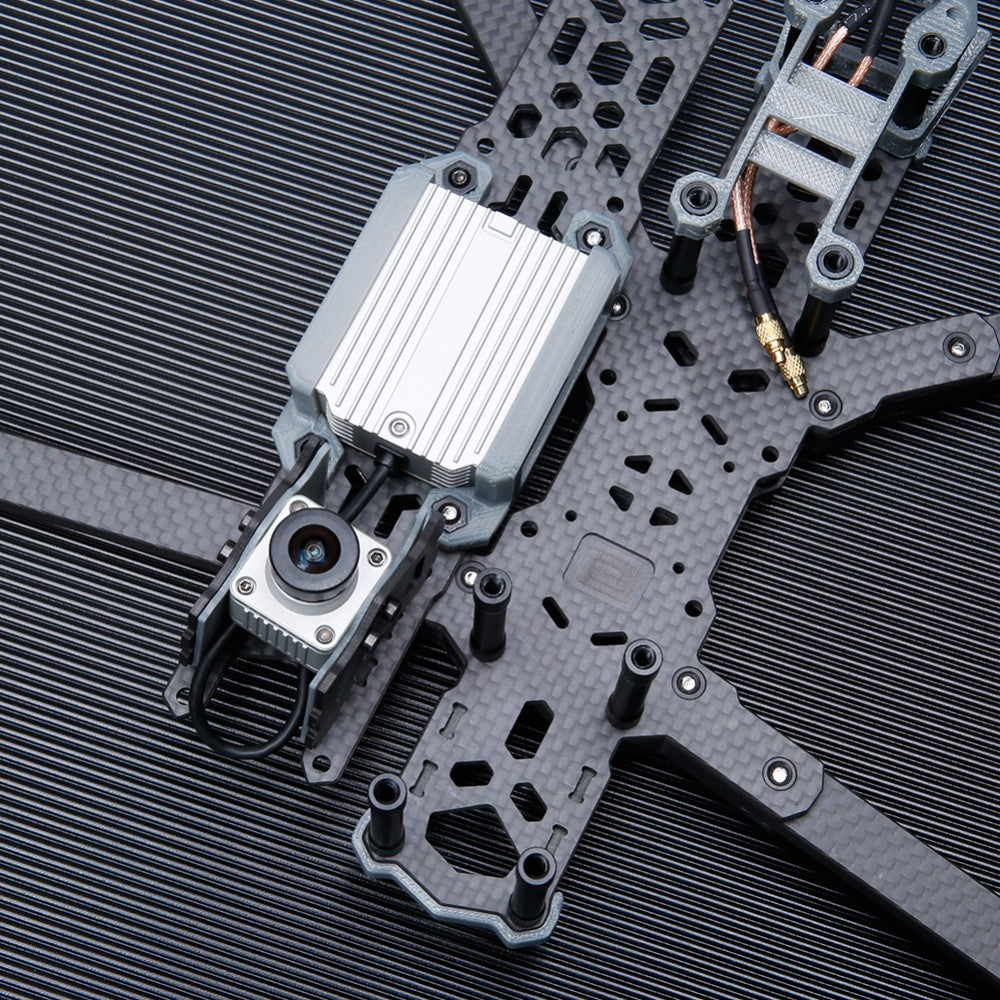

- Optimized weight distribution: DJI unit and Stack centered

- Fits both 30.5x and 20x stacks

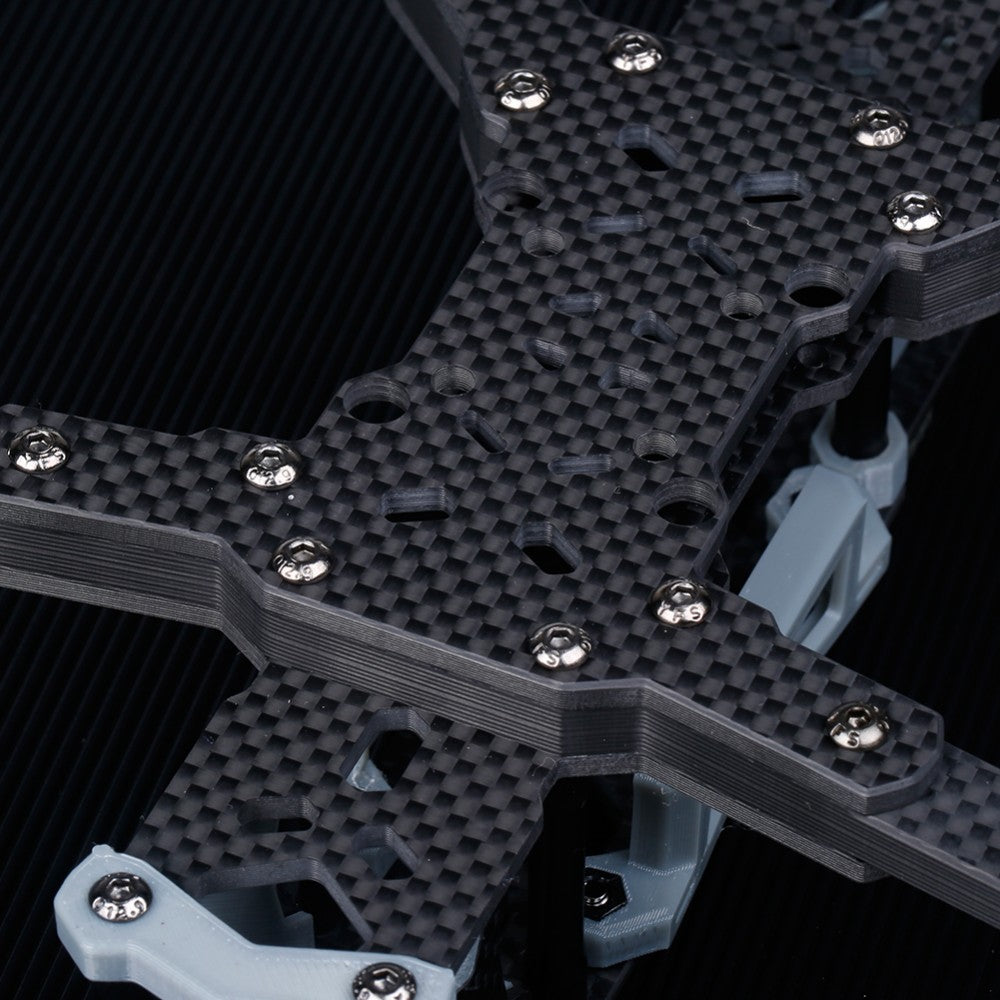

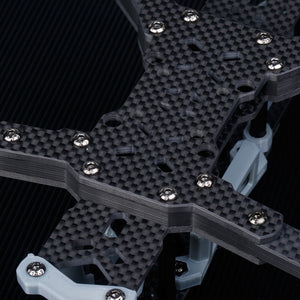

- Full 3K Carbon Fiber airframe with chamfered boomerang arm

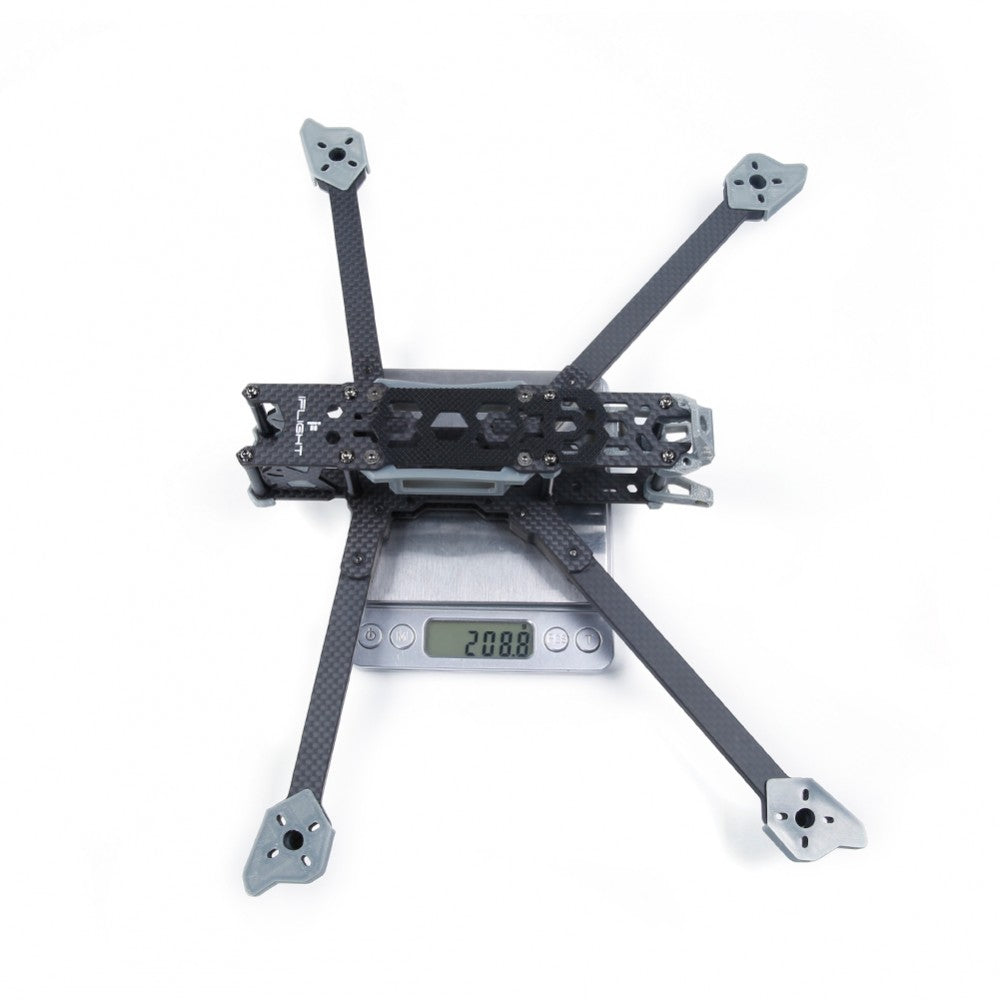

- 333mm wheelbase, weight: 208.8g dry with TPU parts

Specifications:

- Weight: 208.8 (with TPU parts, and battery anti-slip pads)

- Wheelbase: 333mm

- Main body dimension: 330*223mm

- Bottom to top distance: 35mm

- Arm thickness: 6mm

- Bottom plate thickness: 3mm

- Top plate thickness: 2.5mm

- Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)

- Mounting Holes: 30.5*30.5mm / 20*20mm

- Support camera size: 19*19mm 22*22mm

- Recommended motors: 22xx, 23xx

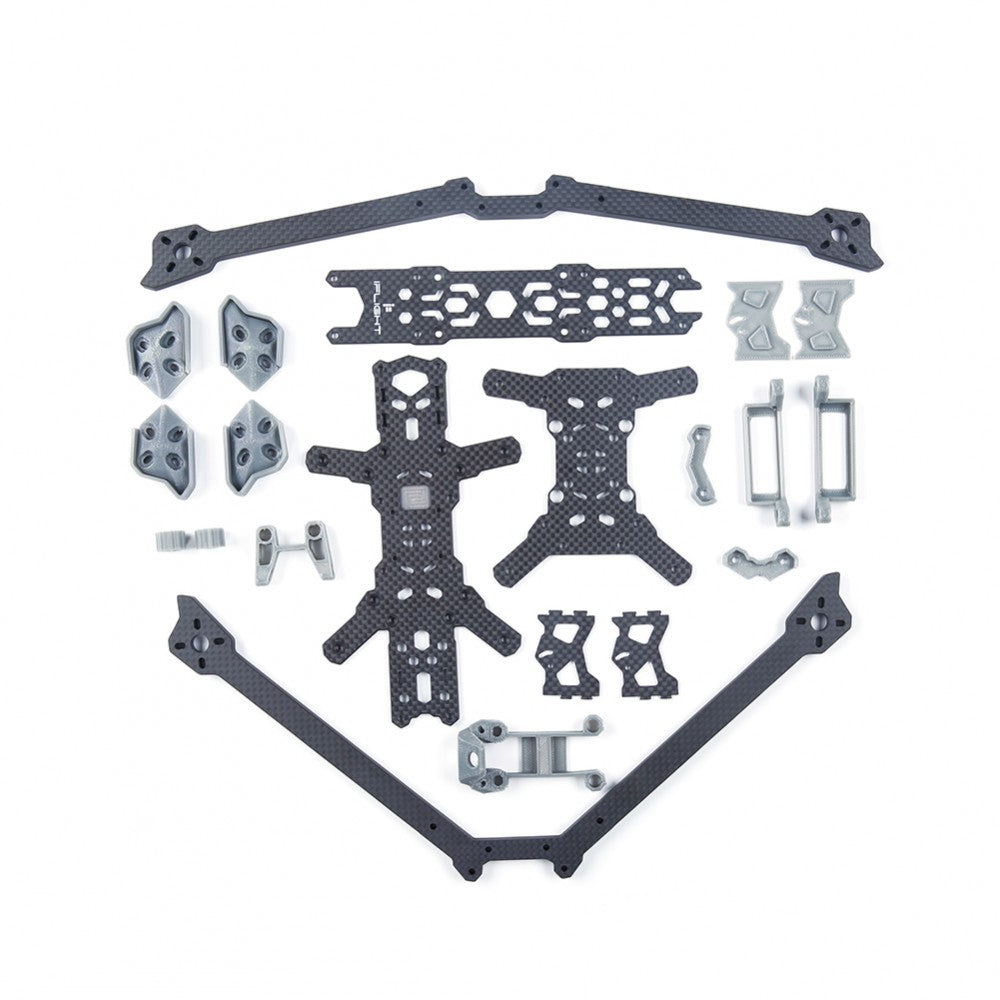

Package included:

-1 x TITAN DC7 HD Frame

-1 x Screw Bag

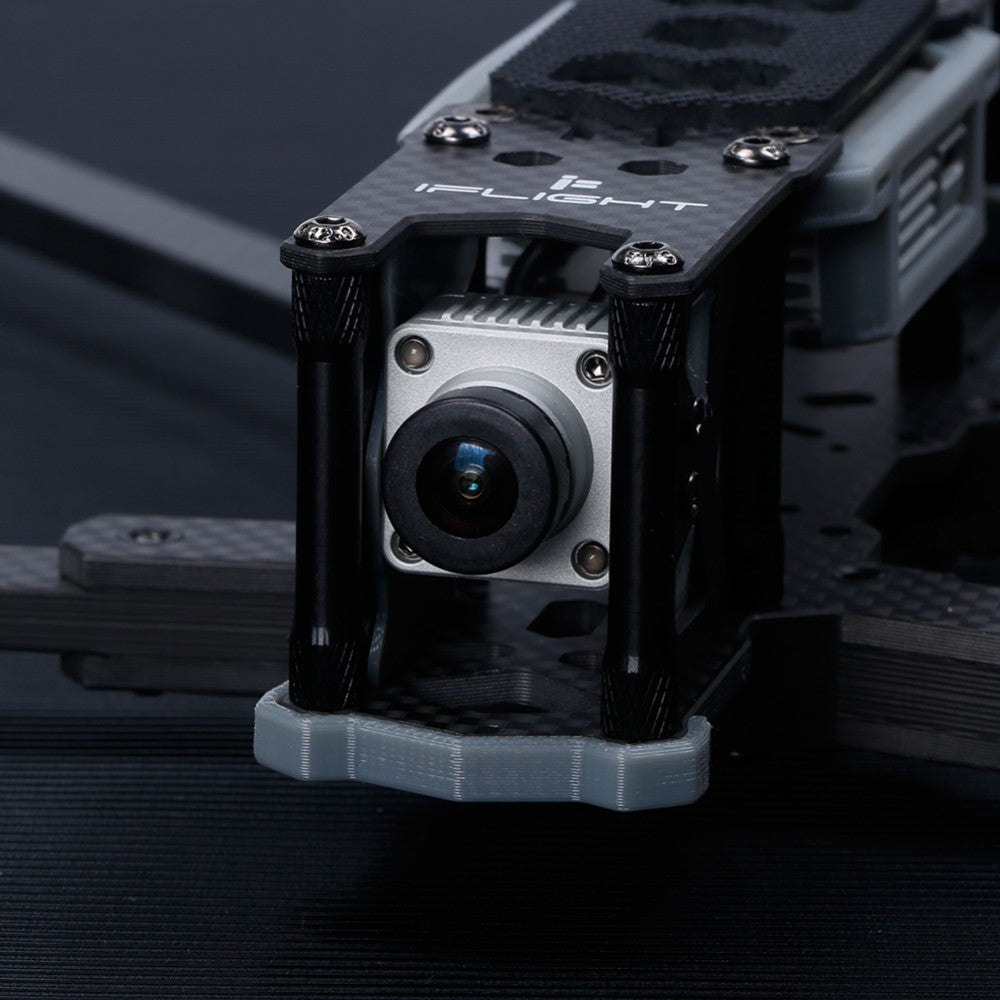

-1 x TPU Camera mount adapters

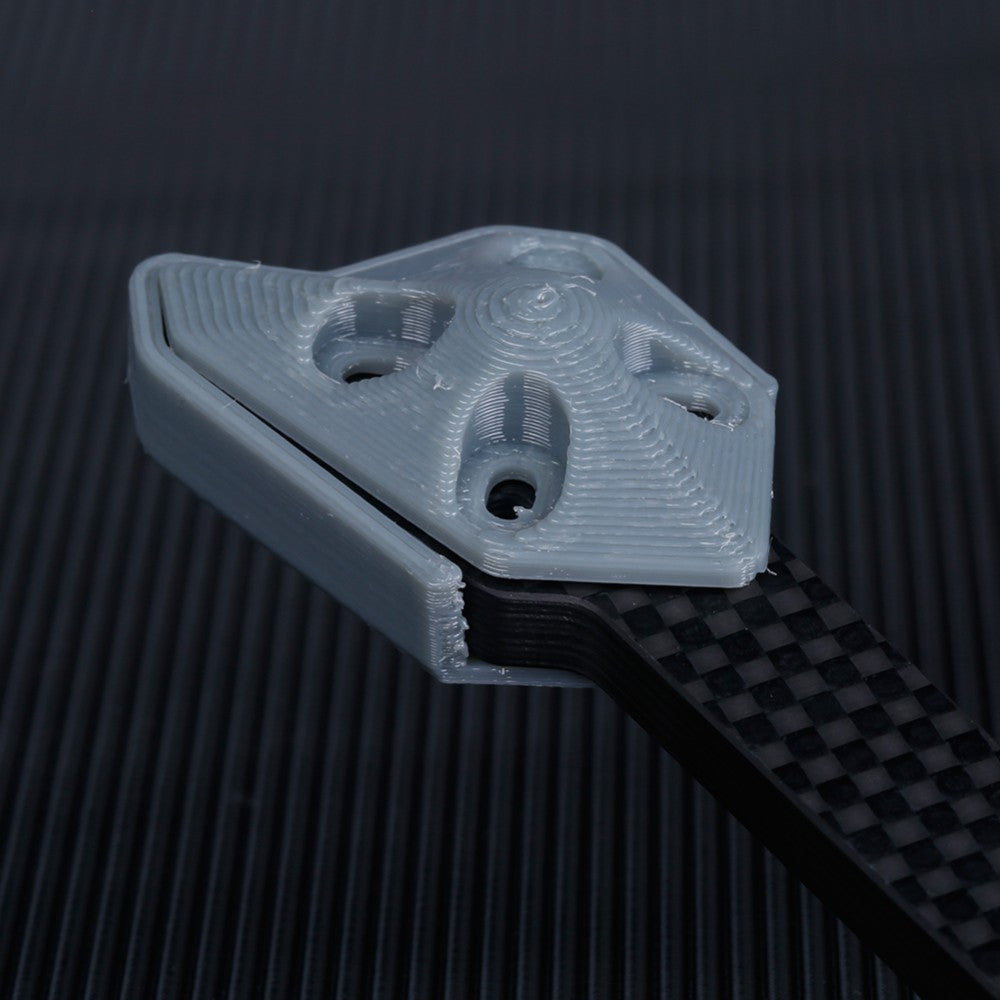

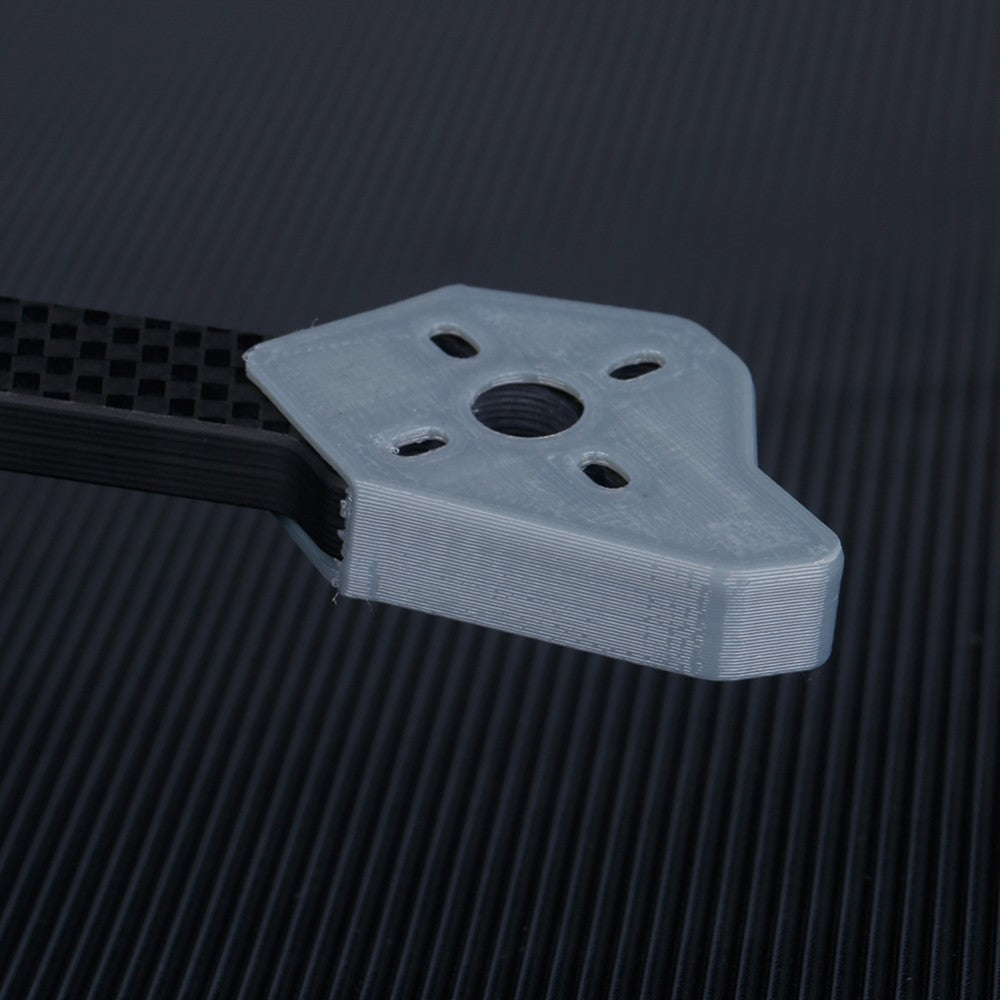

-4 x Arm guard/Motor mount

-1 x TPU DJI Air Unit Bracket Mount

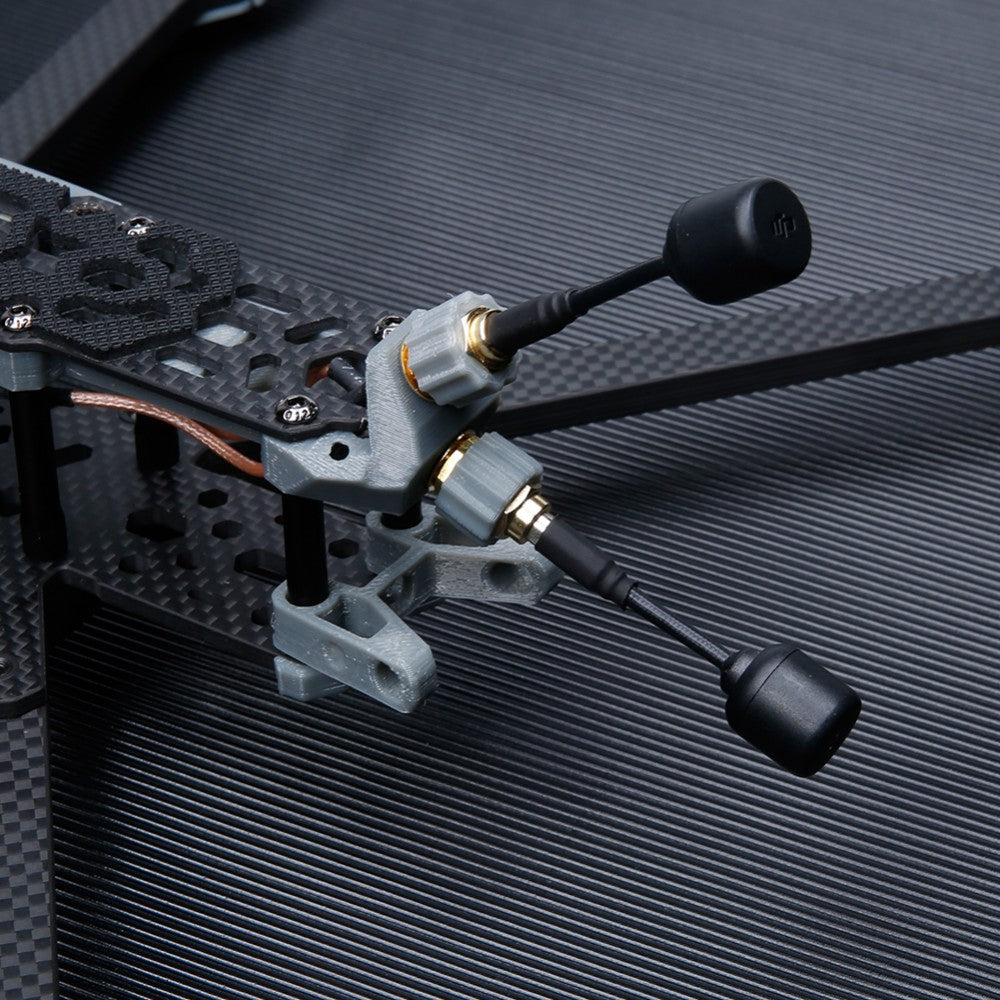

-1 x TPU DJI Air Unit Antenna Mount

-1 x TPU bottom plate front protective mount

-1 x TPU bottom plate rear protective mount

-1 x Battery Anti-slip Mat

-2 x Battery Straps

NOTE: frame with TPU parts only, the DJI air unit, antenna, propellers, motors, flight stacks all do not include.
