SucceX 50A 2-6S BLHeli_32 Dshot1200 4-in-1 ESC
SucceX 50A 2-6S BLHeli_32 Dshot1200 4-in-1 ESC
SucceX 50A 2-6S BLHeli_32 Dshot1200 4-in-1 ESC
SucceX 50A 2-6S BLHeli_32 Dshot1200 4-in-1 ESC

SucceX 50A 2-6S BLHeli_32 Dshot1200 4-in-1 ESC

Vendor
iFlight
Regular price
Sold out
Sale price
1,750.00 ฿
Unit price
per
Shipping calculated at checkout.

PDUCT DESCRIPTION

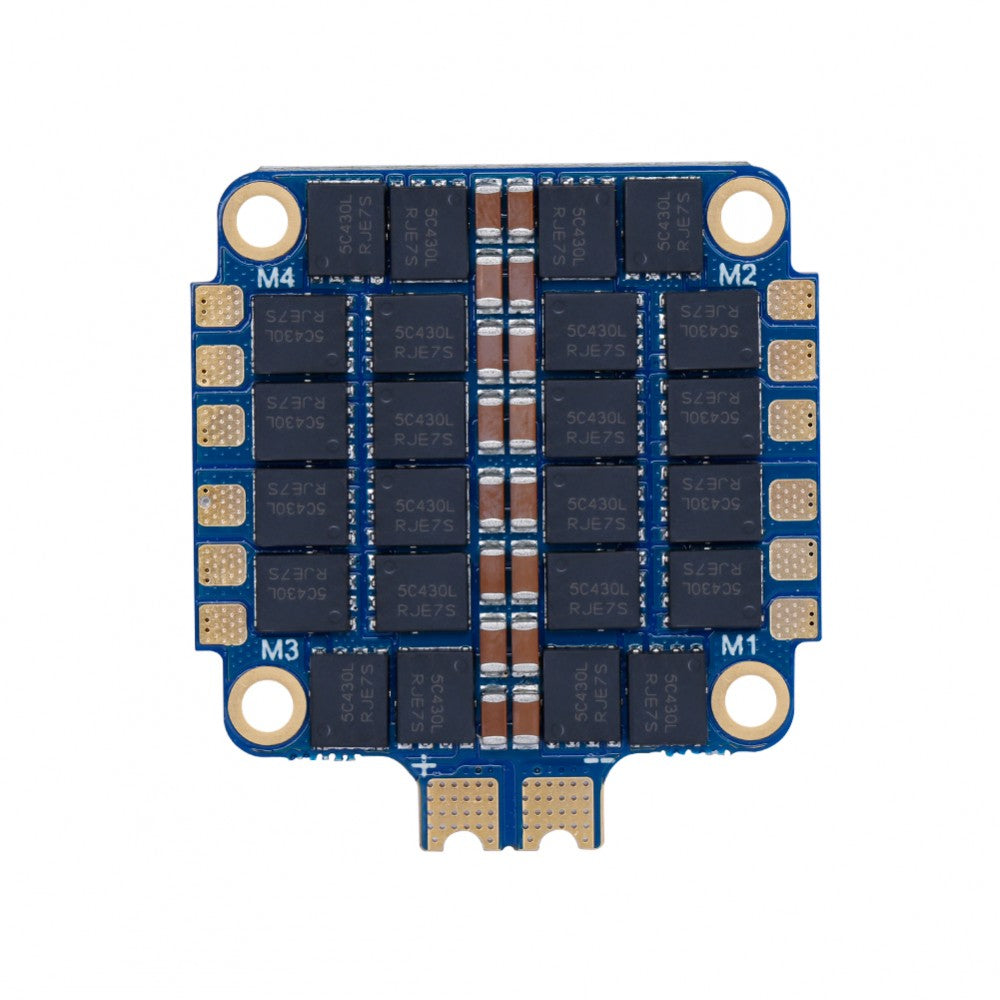

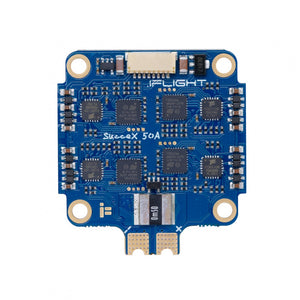

SucceX 50A 2-6S BLHeli_32 Dshot 1200 4-in-1 ESC

Features:

- 8 layers double-sided PCB board;

- 4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;

- 32bit FO51K86 MCU, 48mHz maximum clock speed;

- TDK MLCC Low ESR ceramic capacitors;

- Top grade NTMFS5C430NL MOSFET;

- Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

Specification:

- Dimension: 43*39mm

- Mounting Holes: 30.5*30.5mm/Φ3mm

- Weight:14.4g

- Volts input: 2-6S

- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware

- Current sensor: Yes

-Telemetry:Supported

- BEC: No

- Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.

- Target: iFlight-BL32-4IN1

- BLHeliSuite download (BL32):http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

Package included:

- 1 x SucceX 50A 2-6S 4-in-1 ESC Dshot1200
