Rekon 5
Concept
The Rekon 5 is based on the original Dave_C FPV MiniLongRange design. This five-inch platform is an evolution of the MicroLongRange concept adapted to carry more payload. Like its smaller 4" cousin, this 5" platform can reach flight times of over 25 minutes while being very quiet, efficient, and relatively low cost compared to 7" quads that are usually used for long-range flights. The main advantage of 5" compared to the 4" is the ability to carry loads like GoPros and Lithium-Ion batteries without affecting flight performance and noise level too much. On top of that, the cruising speed is increased and the ability to do acrobatic freestyle maneuvers is noticeably improved. This platform can also be used with a wider variety of batteries depending on the intended use: 850-1800mAh on the 4S version and 550-1300mAh on the 6S version will work without issues. Both versions are also compatible with 3000mAh 4S Li-Ion packs if you are looking for maximum flight time.
Frame Design
The Rekon 5 features an innovative frame design using single-piece front and rear arms locked by an aluminum bolt. The bolt is used to create a strong and stiff center section of the frame, locking the arms and de-coupling forces from the rest of the frame. This allows the use of use very light M2 hardware and thin carbon plates on the other parts of the frame, reducing the overall weight for maximum efficiency. On top of that, the bolt makes it possible to apply much more torque and it's not prone to break or strip like M2 or M3 hardware often does. A lot of attention was also put toward the design of the front and camera mount. Dead cat frames are inherently prone to take heavy impacts in this area since the arms are swept backward and the front is exposed. This is why the Rekon 5 uses a flexible, 3D printed canopy supported by a carbon brace to absorb impact energy and protect the camera in case of a crash.
Key Features
- Lightweight frame with 10mm aluminum bolt construction, compact 25/20mm standoff split deck main body for double 20x20 stacks
- Shock absorbing TPU front with integrated GoPro mount
- Foldable crossfire immortal T-mount inspired by Alexandre Arvinte (@ledrone.club)
- Mild dead cat design reducing the props in view while not affecting flight performance
- Optional braces for improved vibration dampening and crash resistance
- Optimized for 2004 - 2204 motors with 12x12 M2 mounts
- GPS mount for M80 GPS
- External buzzer mount for Soter Buzzer
Optional insurance
The REKON FPV Failsafe Insurance
What is your worst fear when flying long range?
Right, you lose your quad in a no recovery zone.
And now it's gone forever!
With our new REKON FPV Failsafe Insurance it's going to
be just half as bad. Literally half as bad! Check it out here
Specifications
Net Weight:223.5g(Weight without receiver)
Rekon 5 Freestyle Frame 5 inch
Type:5" frame
Wheelbase:210mm
Support for propellers:Up to 5 inches
Overall size:210 * 155mm
Weight:53g (Including TPU)
Zeus F722 mini Flight Controller
MPU:MPU6000
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
BEC Output:5V/3A,9V/1A
Weight:8.1g
Zeus 28A BL_S 3-6S 4in1 ESC
CPU:EFM8BB21F
Input Voltage:3-6S Lipo
Steady Current:28A
Peak Current:35A(10 Sec)
CADDX Nebula Nano
Operating Frequency:5.725-5.850 GHz
Input Power:7.4-26.2V
Channels:8
Rekon 2004 1800KV(6S) / 2600KV (4S) Brushless Motor
Recommended Prop(inch):5Inch
Weight:15.5g
M80 GPS
Power Supply:5V
Size:18.5mm x 18.5mm x 7.1mm
Weight:9.4g
Soter FPV drone buzzer
Input voltage: 5V
Size:22mm x 12mm x12mm
Weight:4g
GEMFAN 5125 5 Inch 3-Blades propeller
Quantity:4 CW & 4 CCW

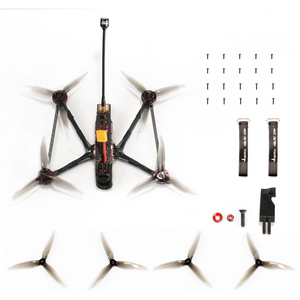

Package Included:
1x Rekon Freestyle Frame 5 inch
1x F722 mini Flight Controller
1x 28A BLHeli_S 3-6S 4in1 ESC
1x Caddx Nebula Nano Kit
4x 2004 1800KV Motors (6s)or 2004 2600KV Motors (4s)
1x M80 GPS
1x Soter FPV drone buzzer
8x GEMFAN 5125
1x IPEX Inner needle Small hammer antenna (LHCP)
2x Battery Straps
1x Naked Gopro mount TPU
1x Receiver(Optional)
* Action cameras shown in the pictures are not included.
