Specification

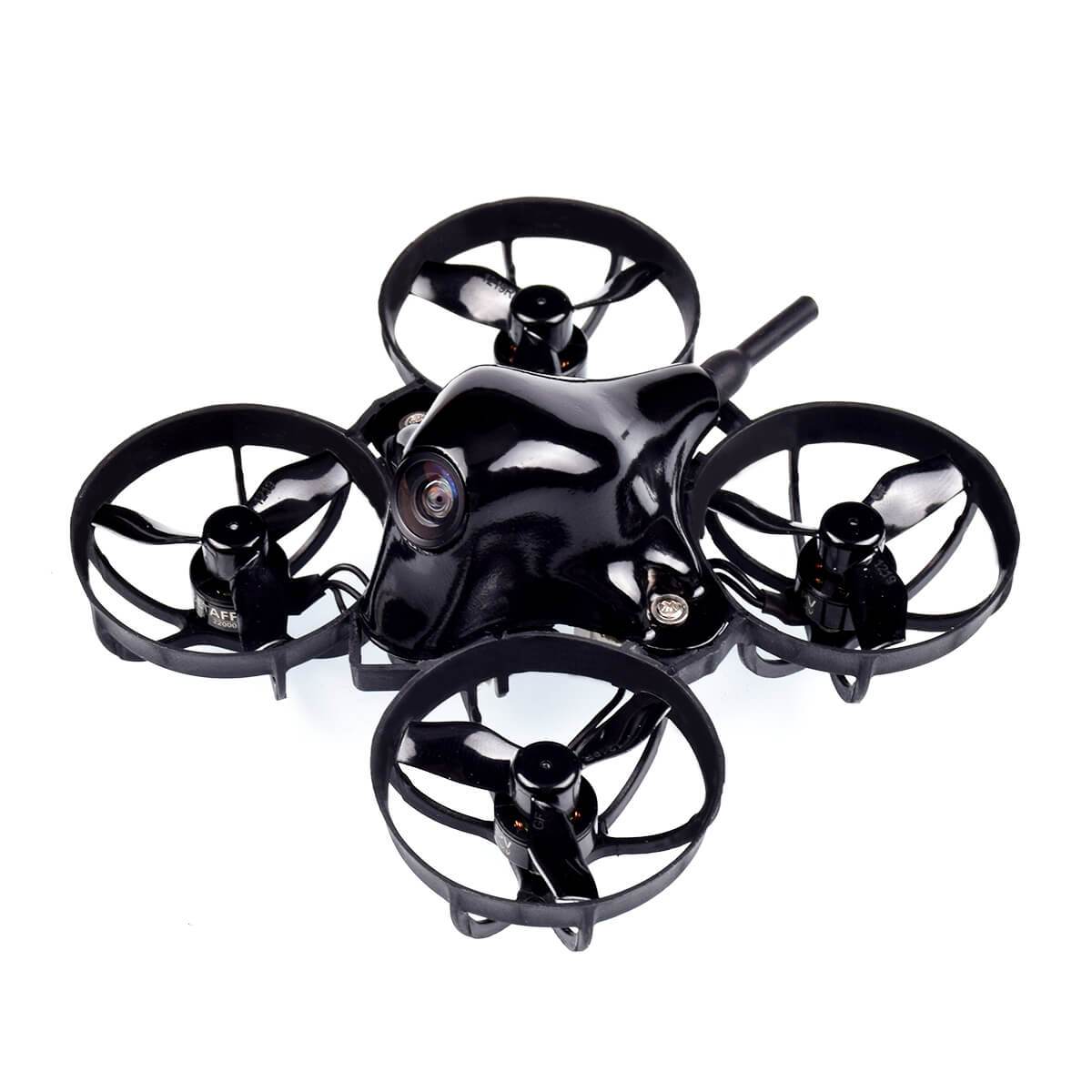

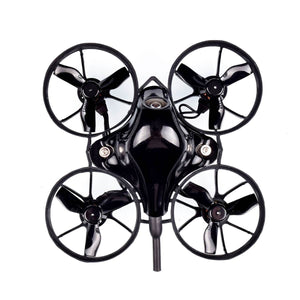

Item: Meteor65 1S Brushless Whoop
Weight: 22.84g (without battery)
FC&ESC: F4 1S Brushless Flight Controller V2.1
Frame: Meteor65 65mm 1S Brushless Frame
Motors: 0802 22000KV / 195000 Motors
Props: 31mm 3-blade props (1.0mm Shaft)
VTX&Camera: M01 AIO Camera VTX
Receiver Option: Frsky XM+ / DSMX / Futaba S-FHSS
Battery: BT2.0 300mah 1S Battery
Flight time: 2.5mins in a smooth indoor flight, 2 mins in full throttle indoor flight
BT2.0 Connector
BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector has decreased internal resistance of connector effectively allowing more current to be transferred, which means it supports 9A continuous current (15A burst). This means stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A. You can enjoy more flight time without disturb of low voltage warning due to reducing voltage sag. For more instruction,
See the graph below of comparing the BT2.0 connector and PH2.0 connector (solid pin version) in BETAFPV 1S 300mAh battery. The discharge current is 9A in this test. The BT2.0 has double the time (about 2 minutes) and a 0.2v improvement in voltage sag.
Meanwhile, we provide 200 sets of BT2.0 300mah 1S battery(2pcs) as a free gift for everybody.
Much more choices of BT2.0 series accessories.
We know some of pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 connectors for those people who want to convert the PH2.0 connector to BT2.0 connector.
Flight Controller
F4 1S brushless FC V2.1- This is the lightest FC in the current market. It has a
slim and sleek design, weighs just 2.69g and performs better giving it maximum weight savings, power, and responsiveness.
SPECIFICATIONS OF FC & ESC
- CPU: STM32F411CEU6 ( 100MHZ )
- Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
- Firmware version: Betaflight MATEKF411RX (MK41R)
- OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
- Current: 5A continuous and peak 6A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: O_L_5_REV16_6.HEX
Camera & VTX
M01 AIO Camera VTX- The unit is ultra-lightweight only 3g, perfect for Meteor65. It comes with a super Mini 5.8GHz FPV Transmitter + 600TVL FPV Camera + RG178 Antenna, features 6 bands and 48 channels on the 5.8GHz band with Raceband. For more instruction, click here to reach.
Motors
0802 22000KV motors using ball bearing instead of brass bushings, and PCB connector. More durable and easier to repair once disconnection.
