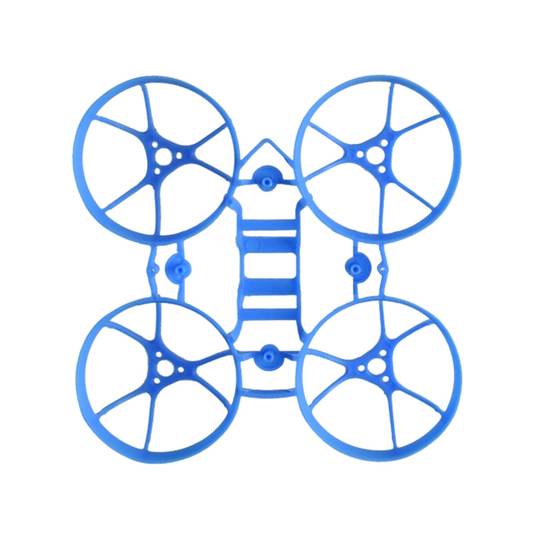

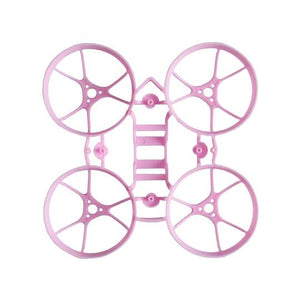

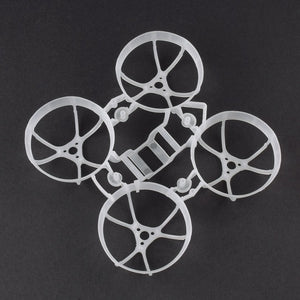

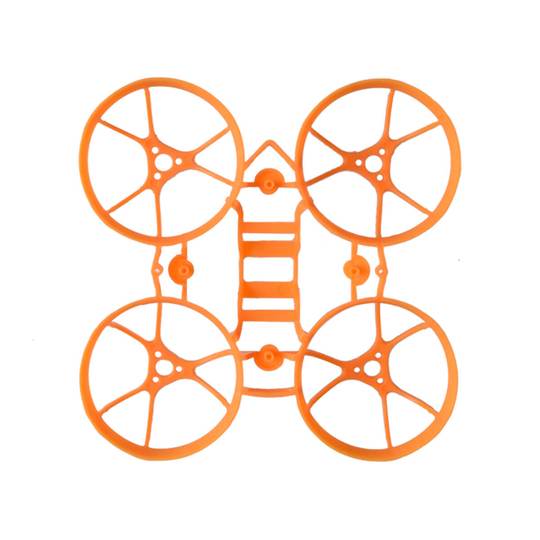

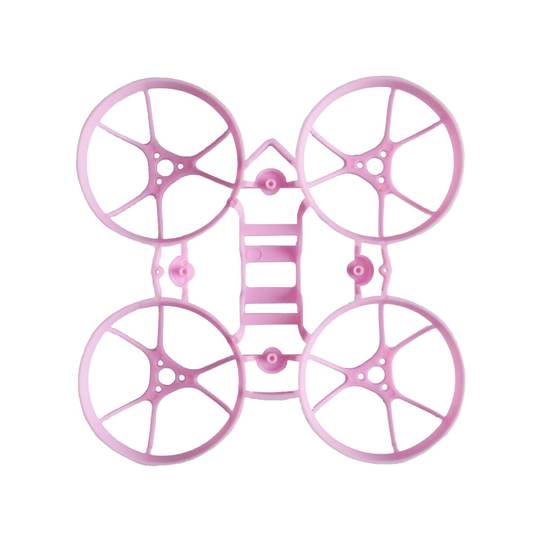

Latest appearance of 65mm 1S brushless frame for Meteor65 Brushless Whoop Quadcopter. With a marvellous design on battery slot which keeps a low profile and triangle bilateral stretch structure of motor mounting position, this frame wights 3.14g only.
BULLET POINTS
- Compared to previous 65mm brushless frames, with the low profile of battery slot height, the drone's gravity center is reduced and improved the sense of compactness.
- Meteor65 1S brushless frame’s motor mounting position uses triangle bilateral stretch structure, makes frame more aesthetic. It provides you more durable and smoother flight experience.
- The ultra-light and durable frame is PP material only 3.14g, which is one of the lightest frames with 26mm*26mm FC mounting columns can match whoop style flight controller.
- The material of 31mm 3-blade props is PC plastic with the 1.0mm shaft inner diameter. Suitable for 0603 and 080X series brushless motors.
SPECIFICATION
- Item: Meteor65 frame
- Material: PP
- Size: 65mm
- Weight: 3.14/pc
- Color: Transparent/Blue/Black/Green/Pink/Orange
- Motor mounting hole: For 0603 motor and 080X Series Motors
- FC mounting hole: 26mm x 26mm, fully compatible with whoop style FC board mounting pattern
Upgrade
- With the low profile of battery slot height, the drone's gravity center is reduced and improved the sense of compactness.
- Using triangle bilateral stretch structure, makes frame more aesthetic.
- Lightest frame weights 3.14g only, with 26mm*26mm FC mounting columns can match whoop style flight controller.
RECOMMENDED PARTS
- Propellers:31mm 3-blade props
- Motors: 0603 and 080X Series Brushless Motors.
- Batteries: BT2.0 300mAh 1S Battery
- FC: F4 1S Brushless FC
