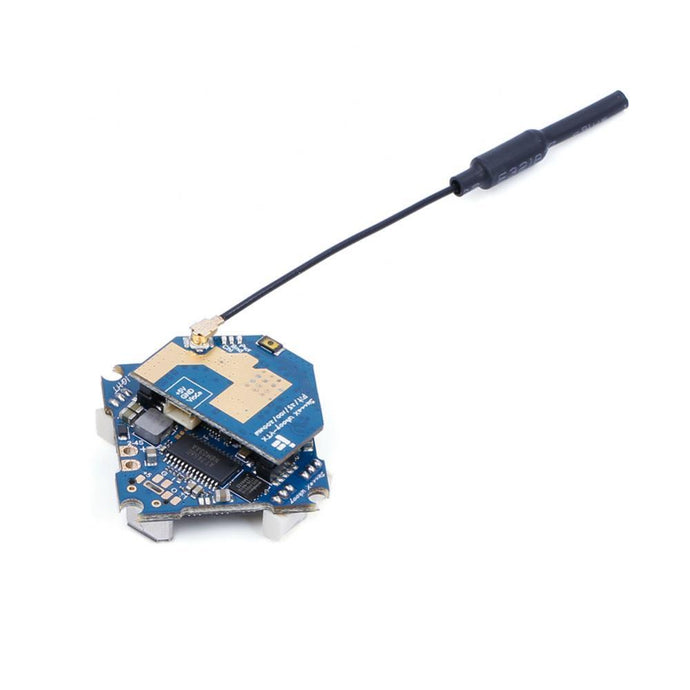

iFlight SucceX Whoop F4 Flight Controller Built-in 12A ESC & FPV Transmitter Stack for RC Drone FPV Racing
Diagram Picture
Introduction:
Ultra tiny, advanced PCB layout and super light. Get reliable performance without overheating ESC mosfets or smoking whoops!
Most powerful micro design on the market with all the performance it needs.
Brand Name: iFlight
Model: SucceX Whoop F4 VTX Stack
Item Name: F4 Flight Controller Built-in 12A ESC & VTX Flytower
SucceX F4 Flight Controller
Package Included:
1x F4 Flight Controller Built-in ESC Board
1x VTX Board
1x Antenna
Diagram Picture
Introduction:
Ultra tiny, advanced PCB layout and super light. Get reliable performance without overheating ESC mosfets or smoking whoops!
Most powerful micro design on the market with all the performance it needs.
4S input voltage and 12A ESC continous current!
A 4-corner soft mount pattern to reduce noise and damp impacts.
Well arranged hardware and strategically placed gyroscope, aimed to fly not to fix!
Specification:Flying distance? No problem anymore!
Get 200mW VTX power output on the UFL antenna port.
FIRST micro whoop 4S ESC with current sensing on the market!
Brand Name: iFlight
Model: SucceX Whoop F4 VTX Stack
Item Name: F4 Flight Controller Built-in 12A ESC & VTX Flytower
SucceX F4 Flight Controller
-STM32F411
-Input voltage 2-4S LIPO
-Gyroscope: ICM-20689
-2x UART ports
-OSD inbuilt
-Baro: NO
-Blackbox FLASH: 8MB
-BEC 5V 2A cont.
-Size:28.5*28.5mm
-Mounting holes:φ3mm 25.5*25.5mm
-Weight: 6.1g
-BF target : IFRC/IFF411PRO(STM32F411)
Current Scale: 210
Built-in SucceX Mirco 12A ESC
-Firmware: Blheli_S G-H-30
-Input voltage : 2-4S LIPO
-Continuous current: 12A
-MCU: BB21F16G
-BEC : None
-ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
SucceX Mirco VTX
-Power : PIT/25/100/200mW
-Antenna interface : IPEX (UFL)
-Telemetry: IRC Tramp
-Size: triangle 26mm*19mm
-Mounting holes: none
-Weight: 2g
Package Included:
1x F4 Flight Controller Built-in ESC Board
1x VTX Board
1x Antenna
