Iflight SucceX-E Mini F4 35A 2-6S Flight stack

Iflight SucceX-E Mini F4 35A 2-6S Flight stack

iFlight
Sold out
1,850.00 ฿
Shipping calculated at checkout.

Product Description

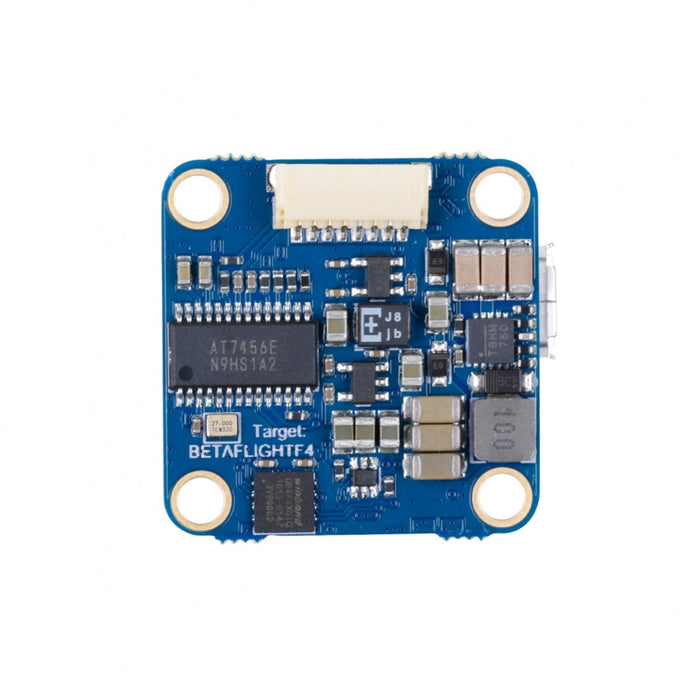

FC // SucceX-E Mini F4


Specifications:

- MCU：168MHz STM32F405

- Gyro：MPU6000

- Blackbox：8MB

- Betaflight OSD：YES

- BEC：5V 2.5A

- Uarts：5

- ESC Telemetry：yes

- INA Pad：nuart2

- Input voltage：2-6S

- Size:25*25mm /20*20mm φ3 mounting

- Weight: 4g

- Firmware：BETAFLIGHTF4

Physical

- Mounting hole：20*20mm，φ3mm

- Size：25*25mm

ESC // SucceX-E Mini 35A

Top Features:

- 6 layers double-sided PCB board

- 2oz 1.4mm thick power board

- TDK MLCC Low ESR ceramic capacitors

- Top grade 2R203 MOSFET

Specification:



  • MCU: BB21 F16G
  • BLHeliS
  • Capacitance: 470uF/50V
  • Current Sensor: Yes
  • Input: 2-6S LIPO
  • Constant: 35A / Burst: 40A
  • BEC: No
  • Supports up to Dshot600, Proshot, Oneshot, Multishot
  • Target: G-H-30
  • BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file
  • Weight:6.9g
  • Mounting pattern: 20*20, φ3mm with Grommets φ2mm
  • Dimensions: 31*30mm (including the power pads)
Package included:

-1pc x SucceX-E mini F4 Flight controller
-1pc x SucceX-E mini 35A 4in1 ESC
