Product Description

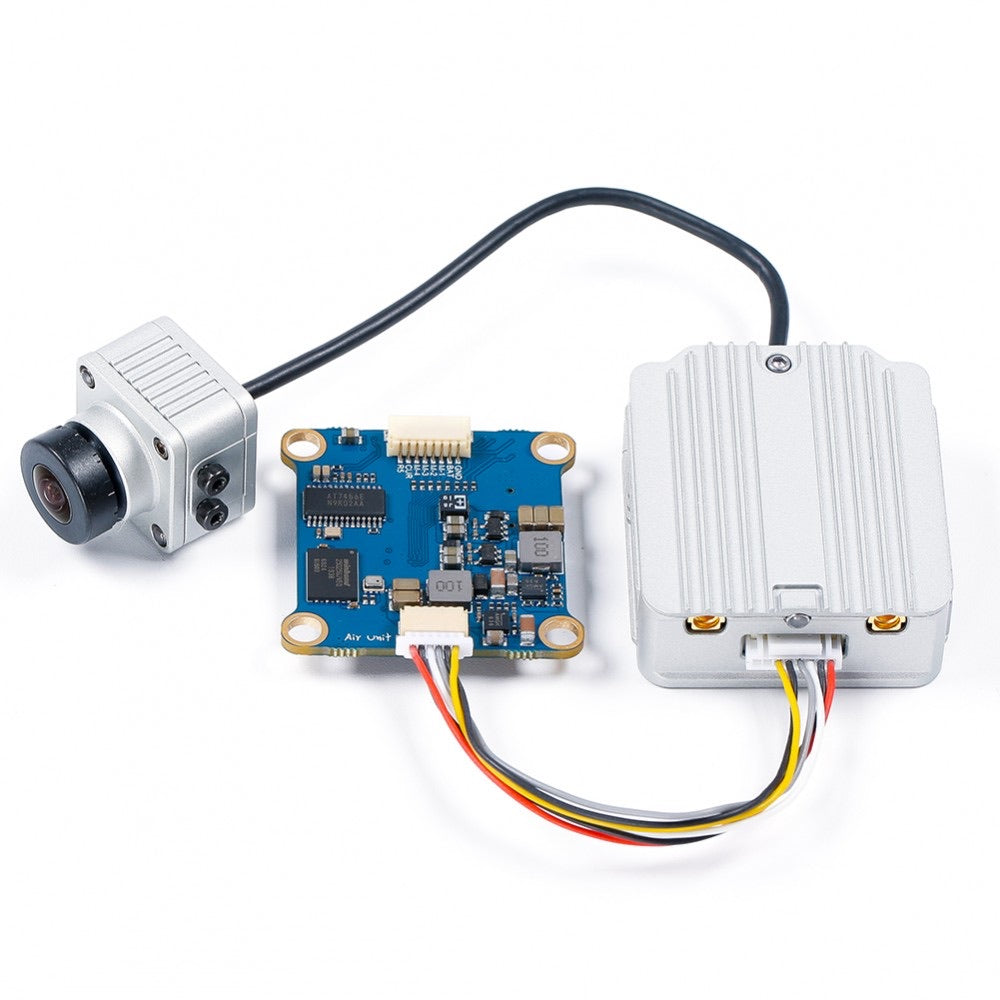

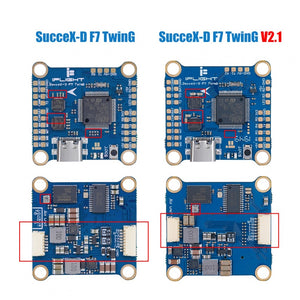

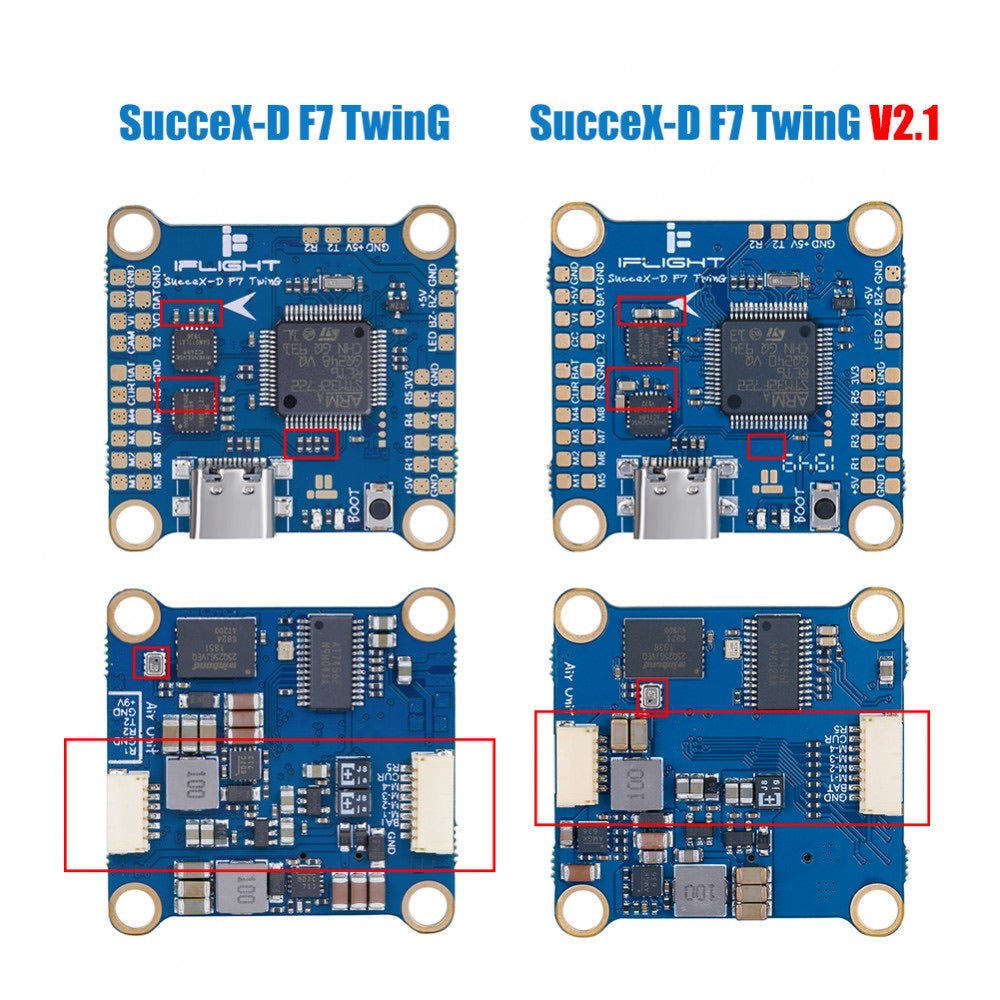

The SucceX-D F7 V2.1 is designed to work seamlessly with DJI’s new HD FPV system. To make things even simpler, the DJI Air unit can just be plugged into the FC with the included wire harness. In addition, we added the popular and reliable USB Type-C instead of Micro USB and therefore the same standard than your DJI module.
Features

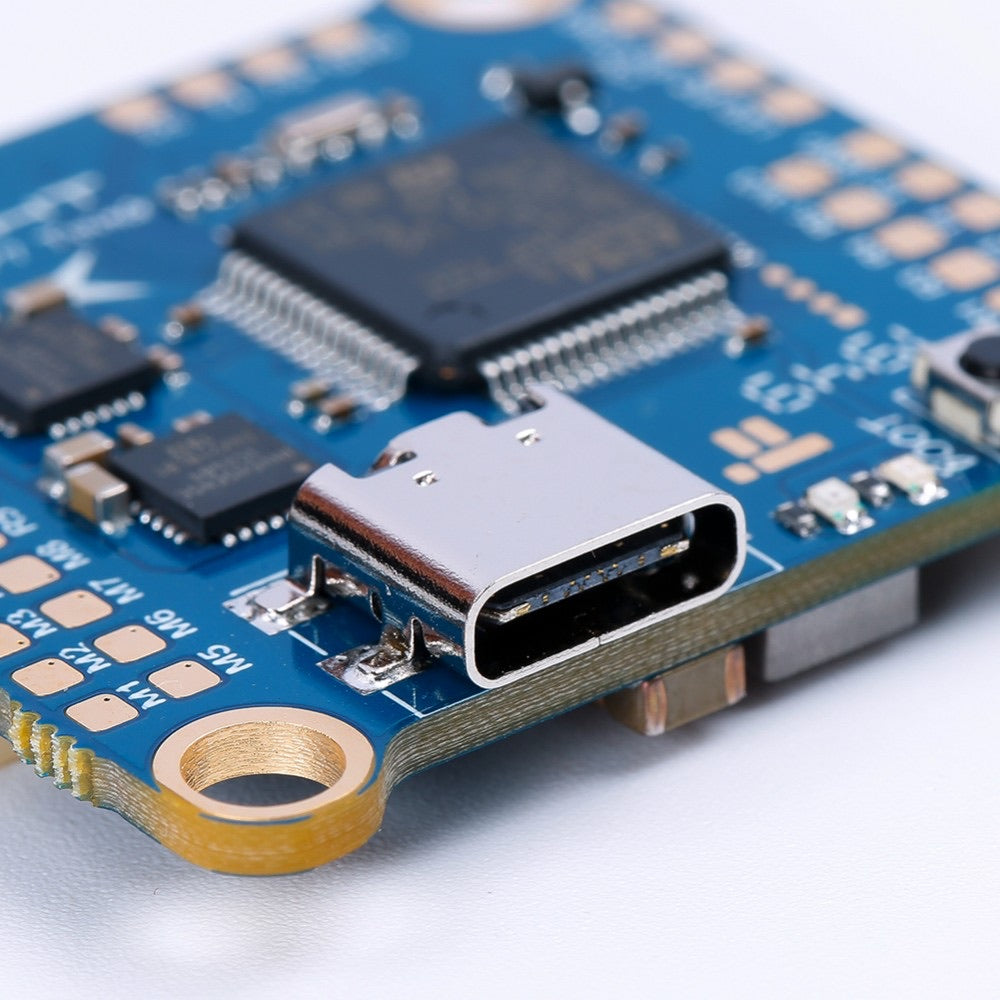

• Universal USB Type C connector instead of micro USB
• Plug-and-Play. No need to solder tiny wires.)
• Supports BLHeli pass-through for easy ESC upgrade and configuration.
• Designed to support DJI Digital FPV.

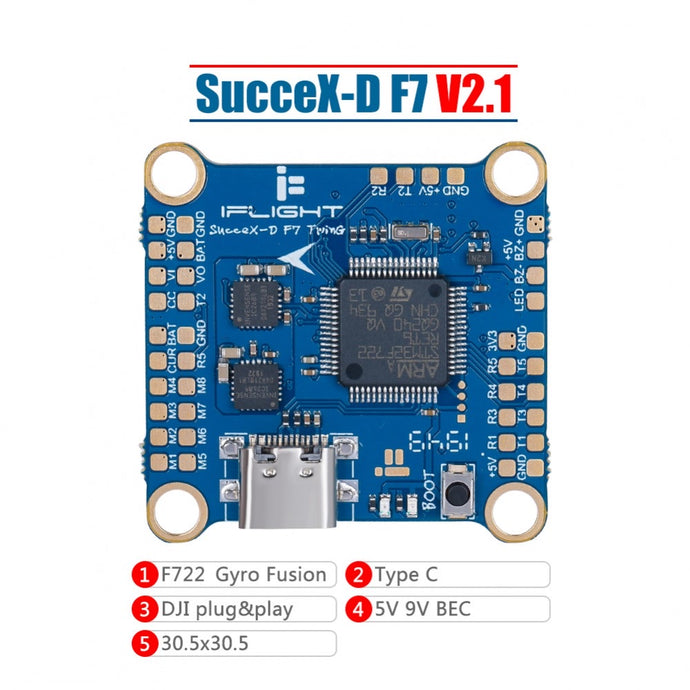

FC // SucceX-D F7 TwinG
- MCU: 216MHz STM32F722
- Gyro：2x ICM20689
- Baro: YES
- Blackbox：32MB
- Betaflight OSD: YES

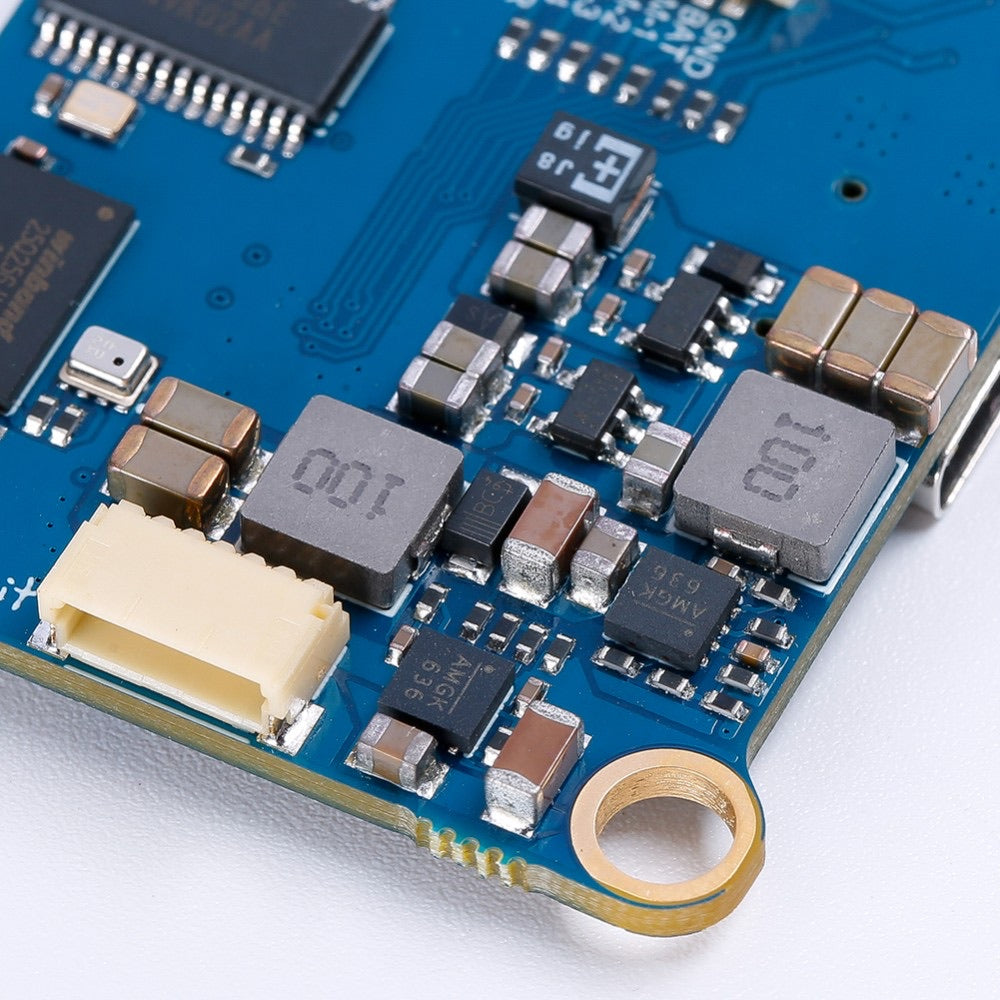

- BEC: 5V 2.5A / 9V 2.5A
- Current sensor scale: 100
- Inverter for SBUS input (UART2-RX)
- Smartaudio & Tramp VTX protocol supported
- Beeper pad : Yes
- RSSI input pad: No
- UARTs：5
- Motor outputs: 8

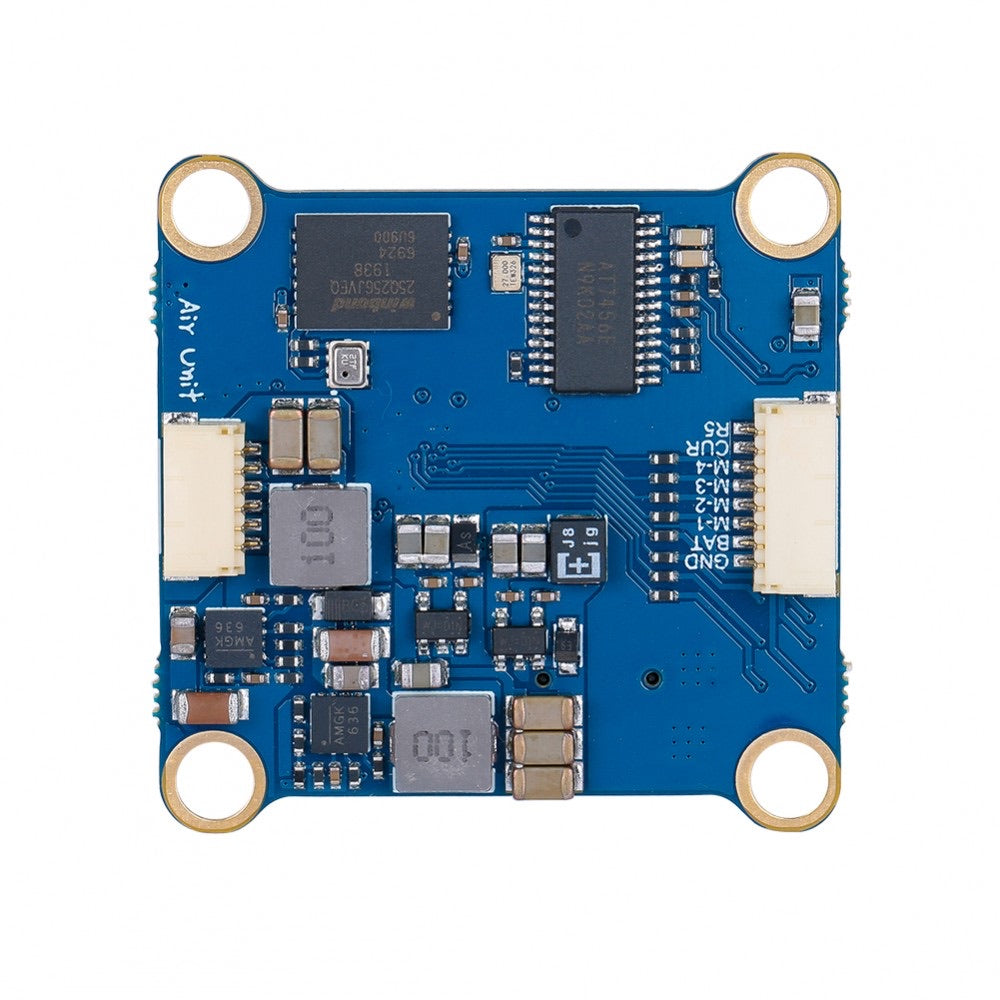

- 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
- 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)
- BLHeli32 Telemetry：RX5
- Input voltage：recommended 2-6S, MAX 8S
- Firmware: IFLIGHT_F722_TWING
- Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ3mm

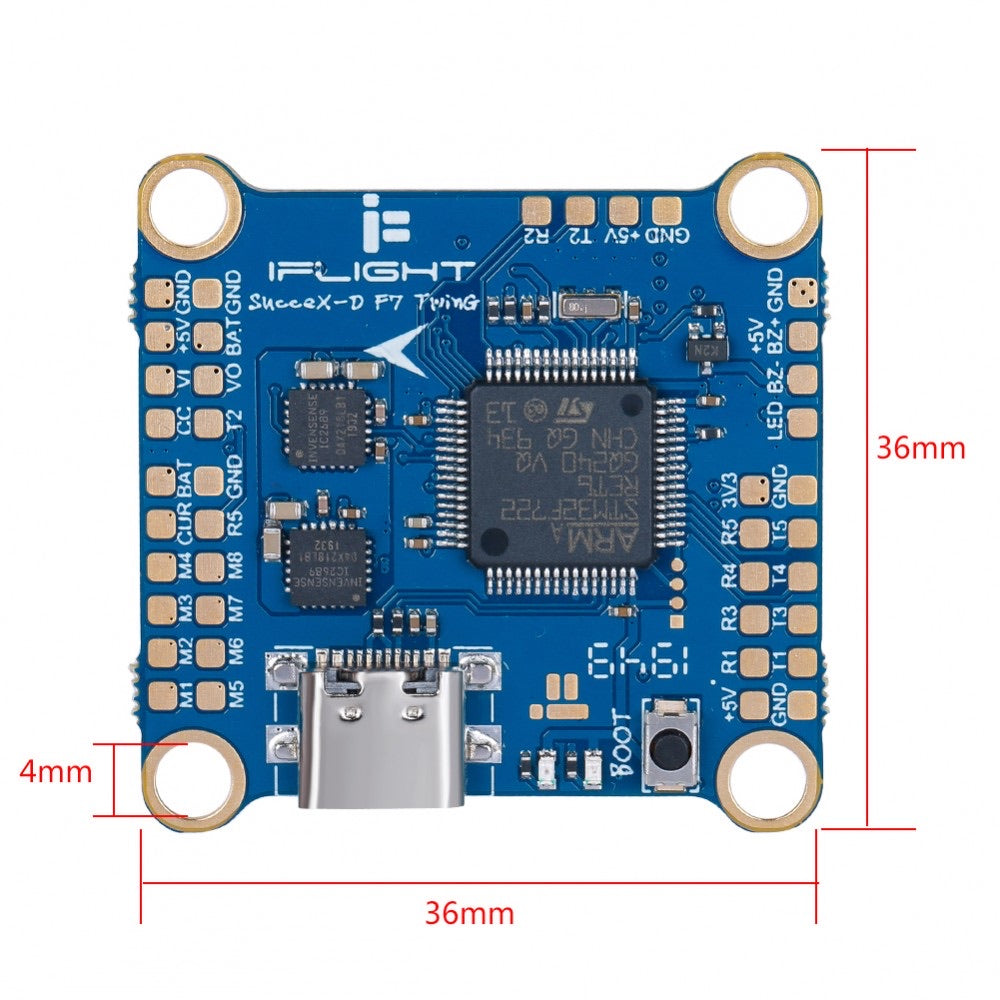

- Dimensions: 36*36mm

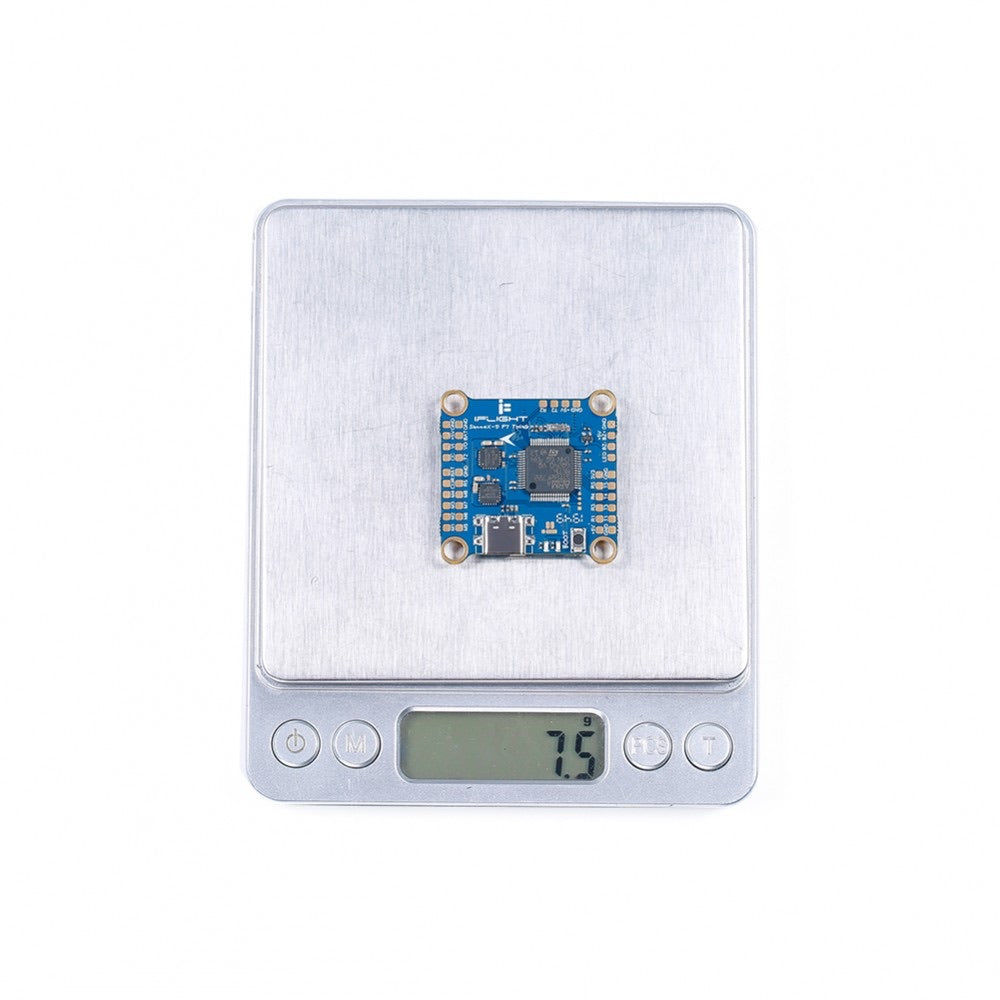

- Weight: 7.5g

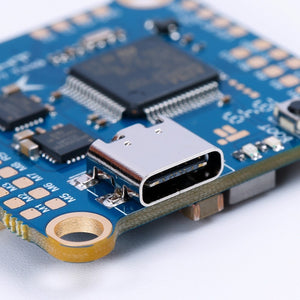

- USB type-C
Package included:
- SucceX-D F7 TwinG Flight Controller (HD Version)
NOTE:
The DJI Air Unit is not included in the package.
