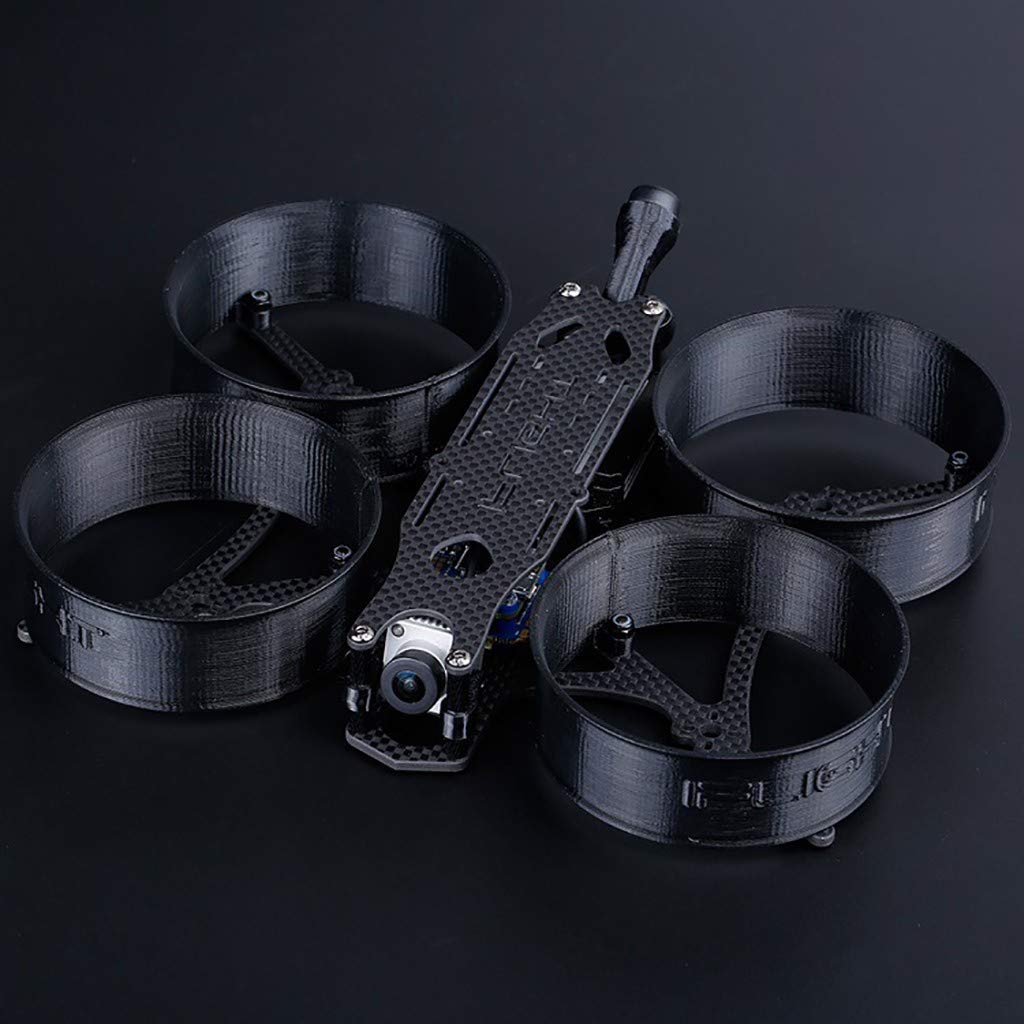

iFlight MegaBee 153mm Cinewhoop Frame for DJI FPV Air Unit RC Drone FPV Racing Features:
The MegaBee HD Frame was designed for the DJI Digital FPV System. It is also suited for a 3-inch propeller power system and flight controllers. The MegaBee HD Frame design makes installation and maintenance easy.With the 3-inch propeller power system, users are ensured a super great flying experience. Soft TPU material helps to protect the camera and antenna in the event of a crash.
Lightweight frame that can take some hits
Prop guards to protect the sensitive environment or yourself
Full-size mount + TPU case; DIY is out!
Full 3K Carbon Fiber airframe
Specification:
Diagonal wheelbase: 153mm
Overall frame size: 125x88mm
Floor thickness: 3mm
Roof thickness: 2mm
Arm thickness: 3mm
Arm width: 8mm
Installation height of electronic equipment: 25mm (aluminum column height 25mm)
Flight control hole distance: 20mmx20mm
Motor circlip hole position: 5.3mm
Motor: 11/13/14 series
Package include:
1 x MegaBee HD FPV Frame Kit 4 x MegaBee HD Ducts
4 x TPU landing mount
1 x Front low carbon protective mount
1 x TPU Antenna mount for DJI antennas
