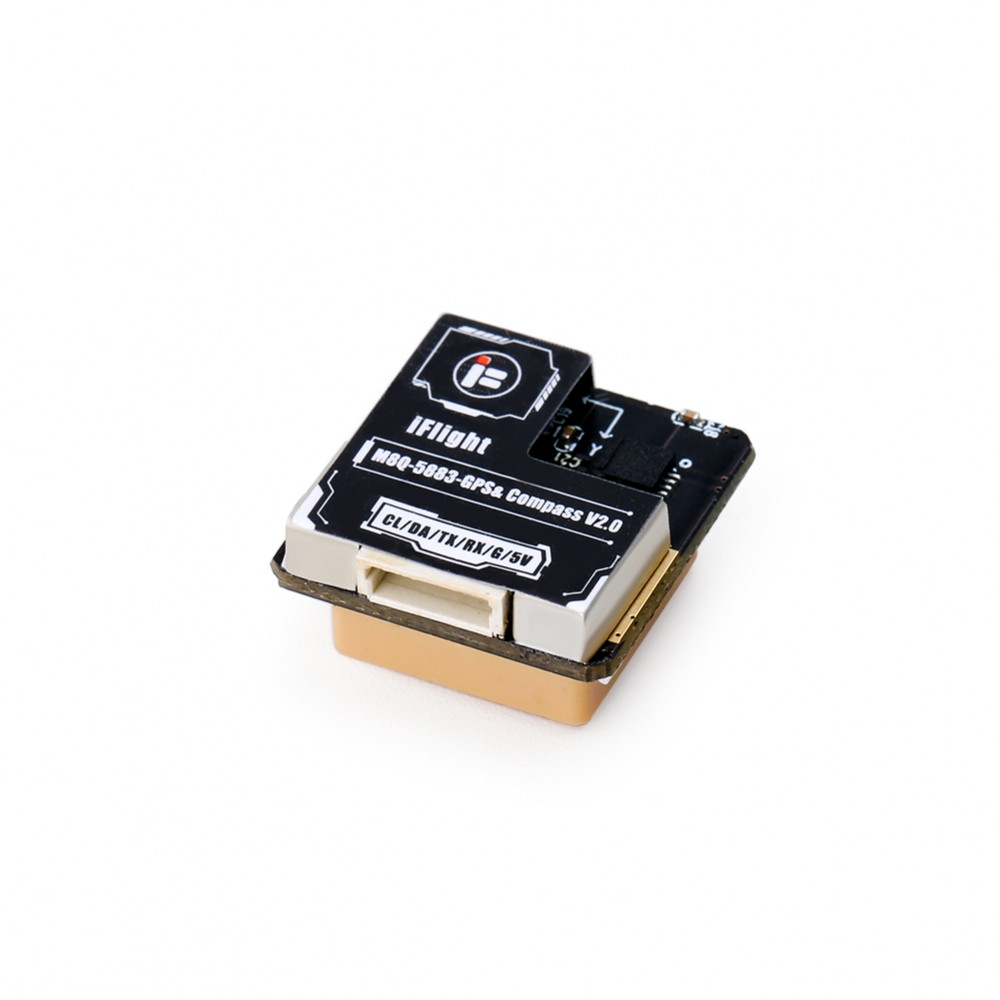

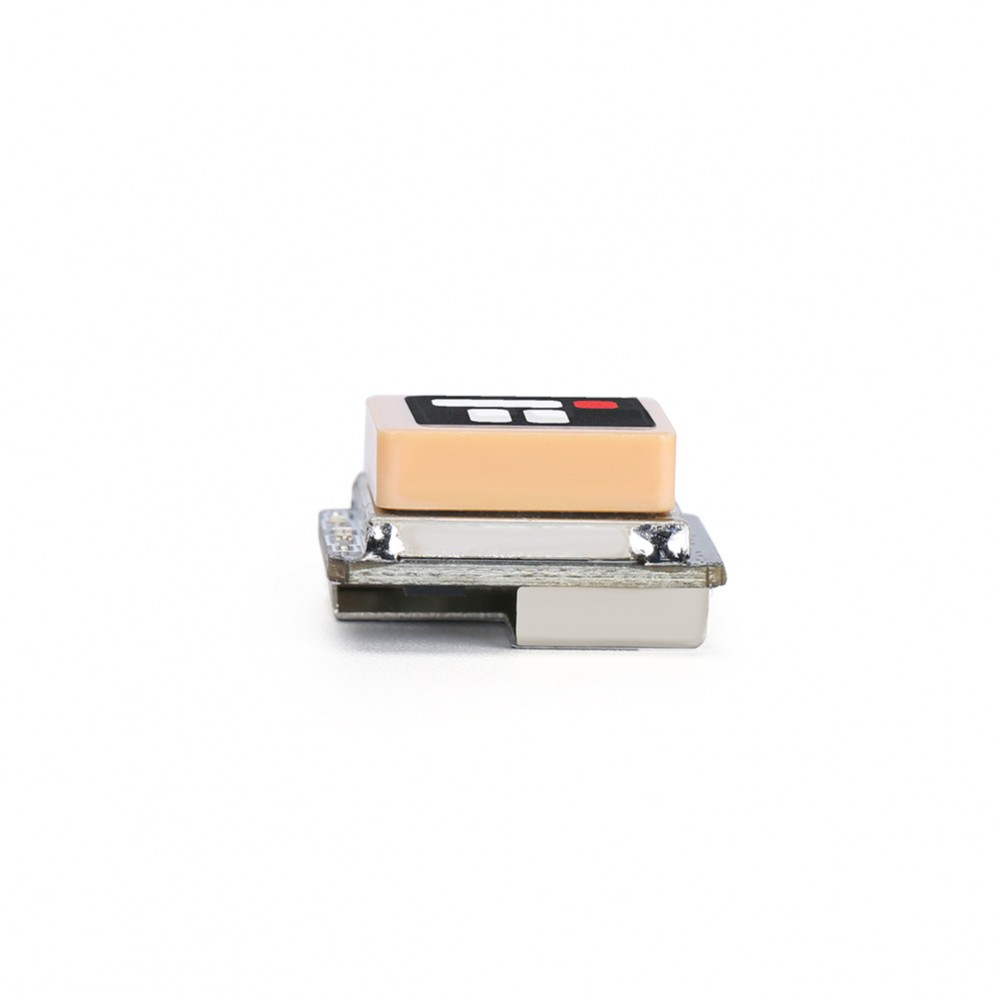

iFlight M8Q-5883-GPS Module V2.0
iFlight M8Q-5883-GPS Module V2.0
iFlight M8Q-5883-GPS Module V2.0
iFlight M8Q-5883-GPS Module V2.0
iFlight M8Q-5883-GPS Module V2.0

iFlight M8Q-5883-GPS Module V2.0

Vendor
iFlight
Regular price
Sold out
Sale price
990.00 ฿
Unit price
per
Shipping calculated at checkout.



PRODUCT DESCRIPTION

Features:

  • 10 Hz Refresh rate (600 times/second)
  • Additional front-end LNA (Low Noise Amplifier)
  • High sensitivity 15x15mm GPS patch antenna
  • Built-in TCXO crystal and farad capacitor for faster hot start
  • Compass module QMC5883L integrated


Specifications:

GPS module: GPSSAM-M8Q

Frequencies: 72 channel

Compass module: QMC5883L

Baud Rate:4800bps-115200bps (Default - 9600bps)

Sensitivity:  Tracking: -162dBm, Capture: -160dBm,Cold Start:-148dBm

Cold start:<29s

Hot start: <2s

Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns

Maximum height: 50.000m

Maximum speed: 500 m/s

Speed accuracy: 0.05 m/s

Maximum acceleration: ≦ 4G

Refresh Rate: 10 Hz

GPS patch antenna size: 15 x 15 mm

Total dimensions:20 x 20 x 10.5 mm

Weight:  8g

Input Voltage: 3.3V-5V,current 25mA

GPS pin definition: RX/TX UART

Compass pin definition: SDA/SLA

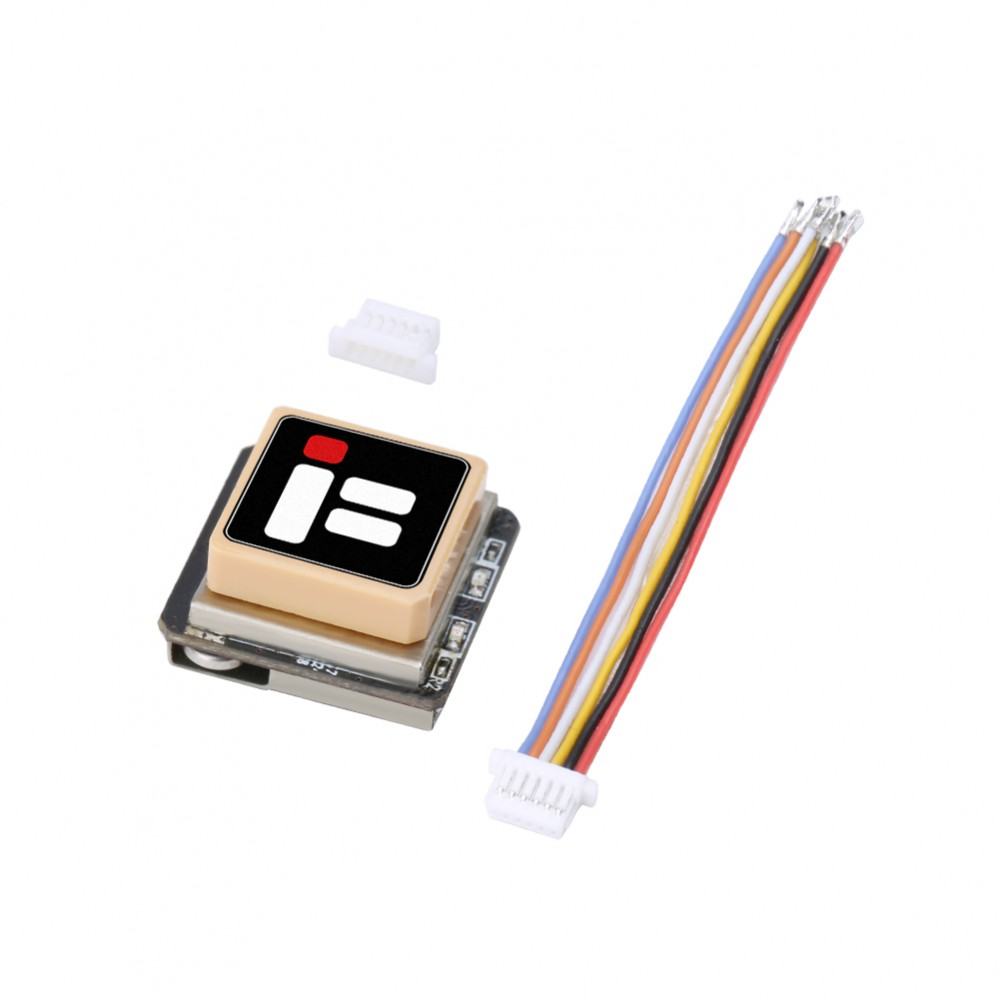

Package included:

iFlight M8Q-5883 GPS *1 pc
SH-1.0-4Pin silicon wire *1 pc
