What if you could get the combined MCU speed and ESC power of a big stack, but carefully arranged on a 25×25 whoop size board? That would be crazy right? Well, iFlight just did it…

This is our new iFlight BEAST series AIO FCs for your ultimate build. A future proof all-in-one FC to step up the game and make some more room for future flight

The Beast F7 45A AIO FC is iFlight’s new innovation! The Beast new series of AIO FCs combines MCU speed with ESC for a bigger stack! Features an onboard Barometer for possible long-range flights and much more! This lightweight AIO FC was designed to make room for flight firmware development like Betaflight, Emuflight, etc. iFlight used BGA chipsets instead of ordinary QFP (big size) MCUs and ultra-powerful Mosfets for almost any build. Solder your motor wires and you are good to go!

Compatible with digital and analog! – see notes at the end of this page for information about powering your DJI VTX.

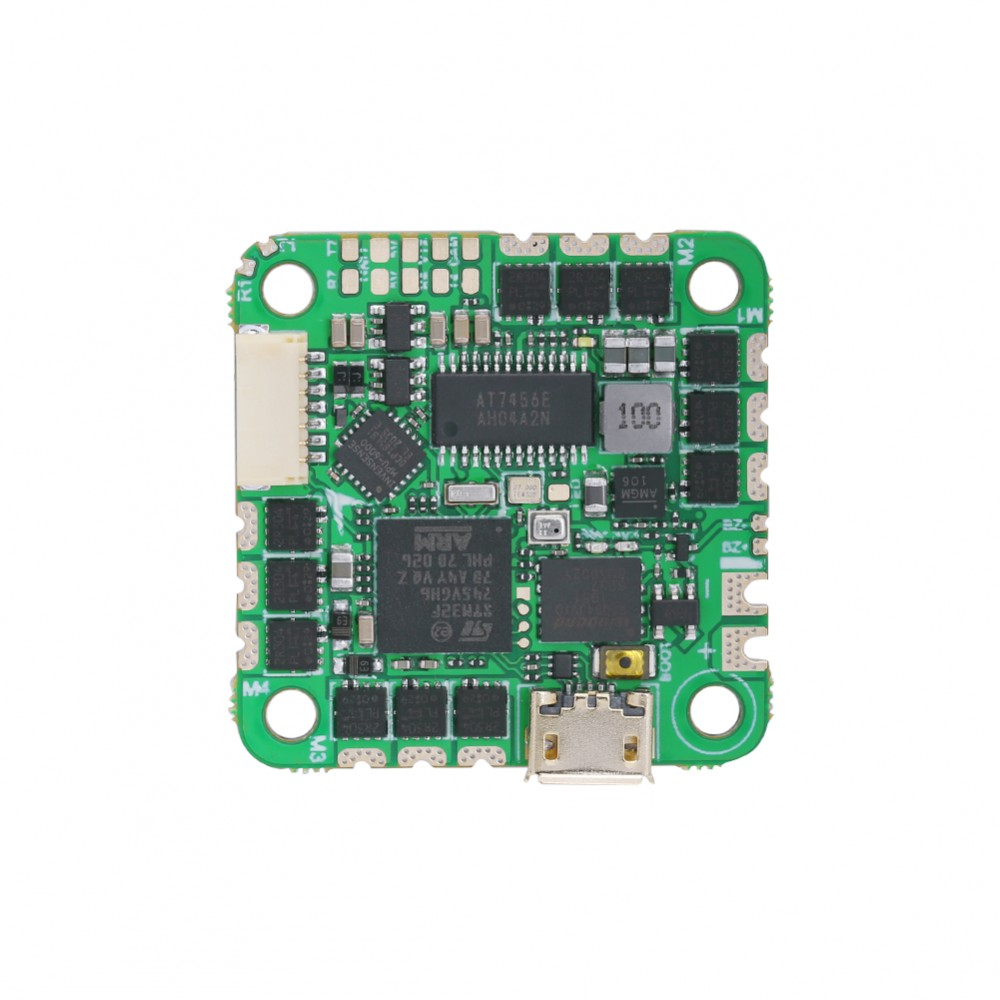

Beast F7 AIO FC

  • MCU: BGA-STM32F745
  • Gyro: MPU6000
  • Blackbox: 8Mb Onboard Flash
  • BEC output: 5V 2.5A
  • Barometer: BMP280
  • Connector: Micro-USB
  • OSD: AT7456E
  • FC Firmware:IFLIGHT_F745_AIO
  • Mounting pattern: 25.5*25.5mm φ3mm

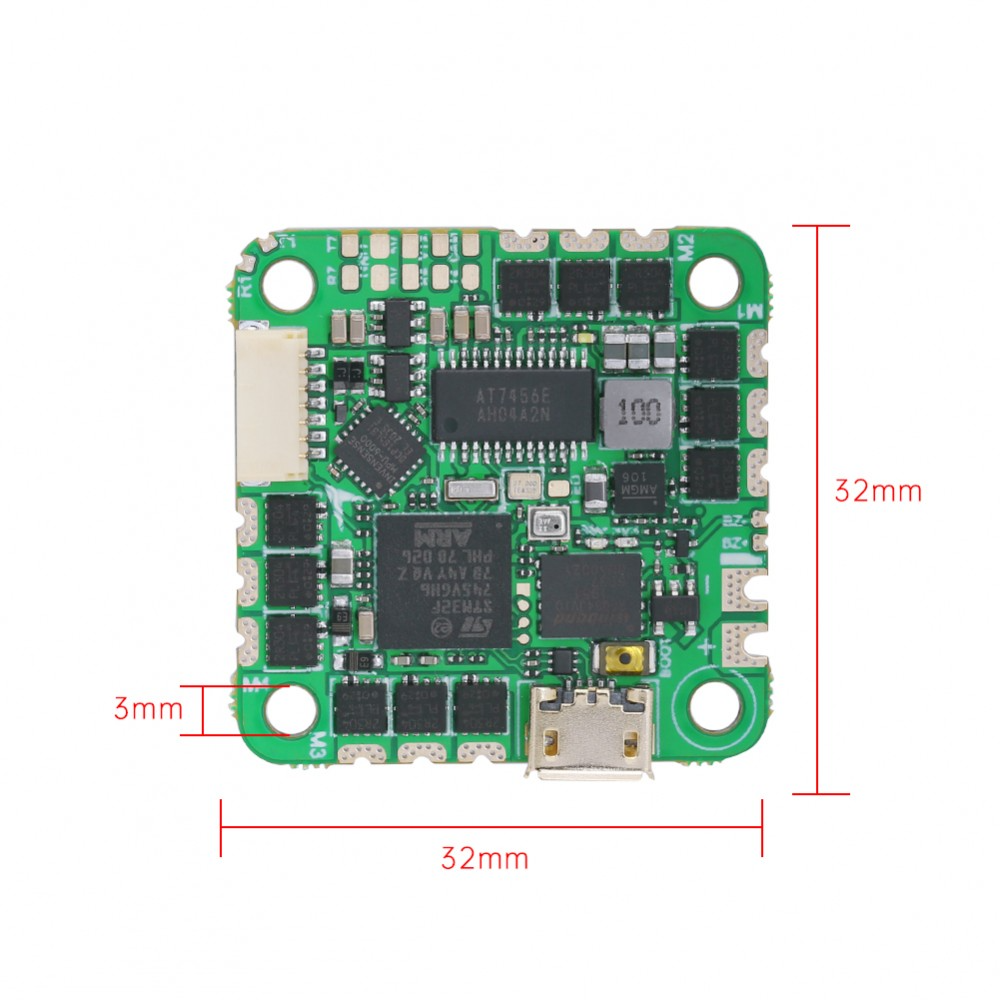

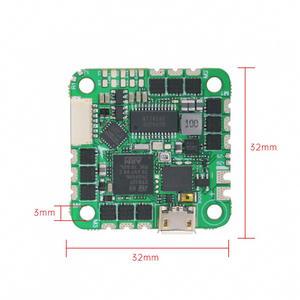

  • Dimensions: 32.5*32.5mm

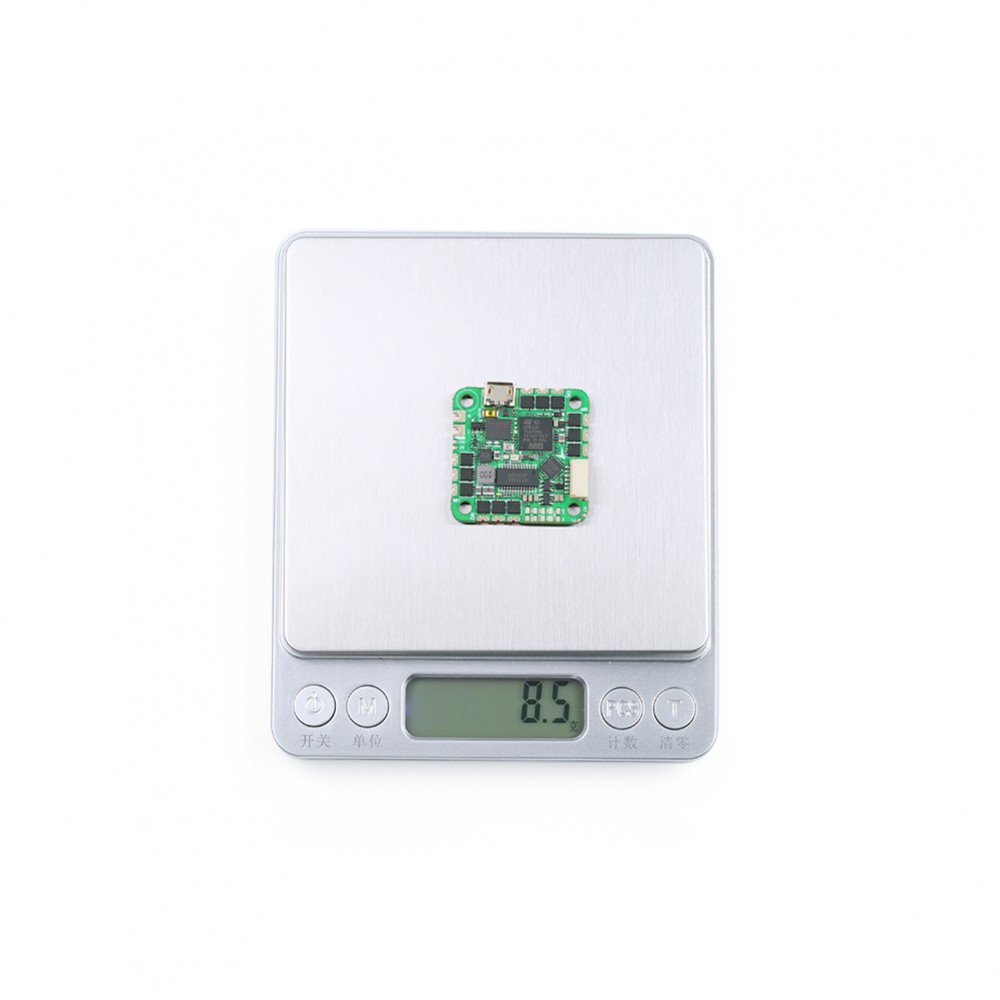

  • Weight: 8.5g

45A 2-6S ESC

  • Uarts: 5
  • Current Sensor: Yes
  • Input: 2-6S LIPO
  • Current scale: 200
  • Constant: 45A / Burst: 50A
  • BLHeli: BLHeli-S
  • Telemetry: no
  • ESC Firmware: BlheliS G-H-30
  • Mounting pattern: 25.5*25.5mm/Φ3mm
  • Dimensions: 32.5*32.5mm

Note:

The DJI plug&play port has no voltage regulator (BEC) and is passing through VBAT. The Caddx Vista goes up to 26.4V (6S), the DJI Air Unit goes up to 17.6V (4S). Make sure not to plug-in your DJI Air Unit directly when you’re flying 6S because this would fry it!

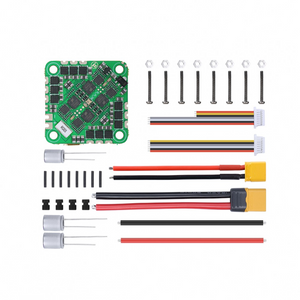

Small motor 4S builds should usually need an additional capacitor of at least 16V/220uF, for 6S go up to 35V or even 50V. Bigger motors have a bigger current draw, higher voltage spikes, and more serious back EMF (motor braking, works as a generator). Make sure to add big enough or even bigger low ESR capacitors on the AIO battery pad or on your battery lead the more aggressive motors you fly. There’s a choice of capacitors in the package, but it’s never a bad idea to make sure to protect your board. Smaller boards have less capacitance which has to be covered with external capacitors, there’s no way around it.
