1. Display Specifications
-
Screen Size: 10.2-inch (LED)
-
Resolution: 1024 × 600 pixels
-
Brightness: 1000 Lux (High brightness; excellent sunlight readability for outdoor use)
-
Aspect Ratio: 16:9 / 4:3 (Switchable)
-
Color System: PAL / NTSC
-
Response Time: <10ms (Low Latency)
รายละเอียดหน้าจอ (Display)
-
ขนาดหน้าจอ: 10.2 นิ้ว (LED)
-
ความละเอียด: 1024 × 600 พิกเซล
-
ความสว่าง: 1000 Lux (สู้แสงแดดได้ดีมาก เหมาะกับการใช้งานกลางแจ้ง)
-
อัตราส่วนภาพ: 16:9 / 4:3 (ปรับได้)
-
ระบบสี: PAL / NTSC
-
ความเร็วในการตอบสนอง: <10ms (Low Latency)
2. Receiver System
-
Frequency Bands: Covers 4.9GHz, 5.8GHz, and up to 6.0GHz.
-
Channels: Supports 96CH to 104CH depending on the sub-model (includes special bands like X-Band).
-
Sensitivity: -99dB (High Sensitivity for longer range and superior stability compared to standard receivers).
-
Receiver Type: Dual Diversity Receiver (simultaneously receives from two antennas to select the strongest signal).
-
Tracking Mode: Automatic signal search and tracking system, making it easier to scan for the strongest available channel.
2. ระบบรับสัญญาณ (Receiver)
-
ย่านความถี่: รองรับครอบคลุมตั้งแต่ 4.9GHz, 5.8GHz ถึง 6.0GHz
-
จำนวนช่องสัญญาณ: มีรุ่นย่อยที่ระบุตั้งแต่ 96CH ถึง 104CH (รวมย่านความถี่พิเศษอย่าง X-Band)
-
ความไวในการรับสัญญาณ: -99dB (High Sensitivity รับสัญญาณได้ไกลและนิ่งกว่ารุ่นทั่วไป)
-
ประเภทตัวรับ: Dual Receiver (Diversity) รับสัญญาณจากเสาอากาศ 2 ต้นพร้อมกันเพื่อเลือกสัญญาณที่ดีที่สุด
-
Tracking Mode: ระบบค้นหาและติดตามสัญญาณอัตโนมัติ ช่วยในการสแกนหาช่องสัญญาณที่แรงที่สุดได้ง่ายขึ้น
3. DVR & Connectivity
-
DVR: Supports video recording to Micro SD Card (Up to 64GB, Class 10 recommended).
-
Features instant Playback functionality.
-
Includes a "Video Buffer" feature to help locate lost drones using the last recorded coordinates.
-
-

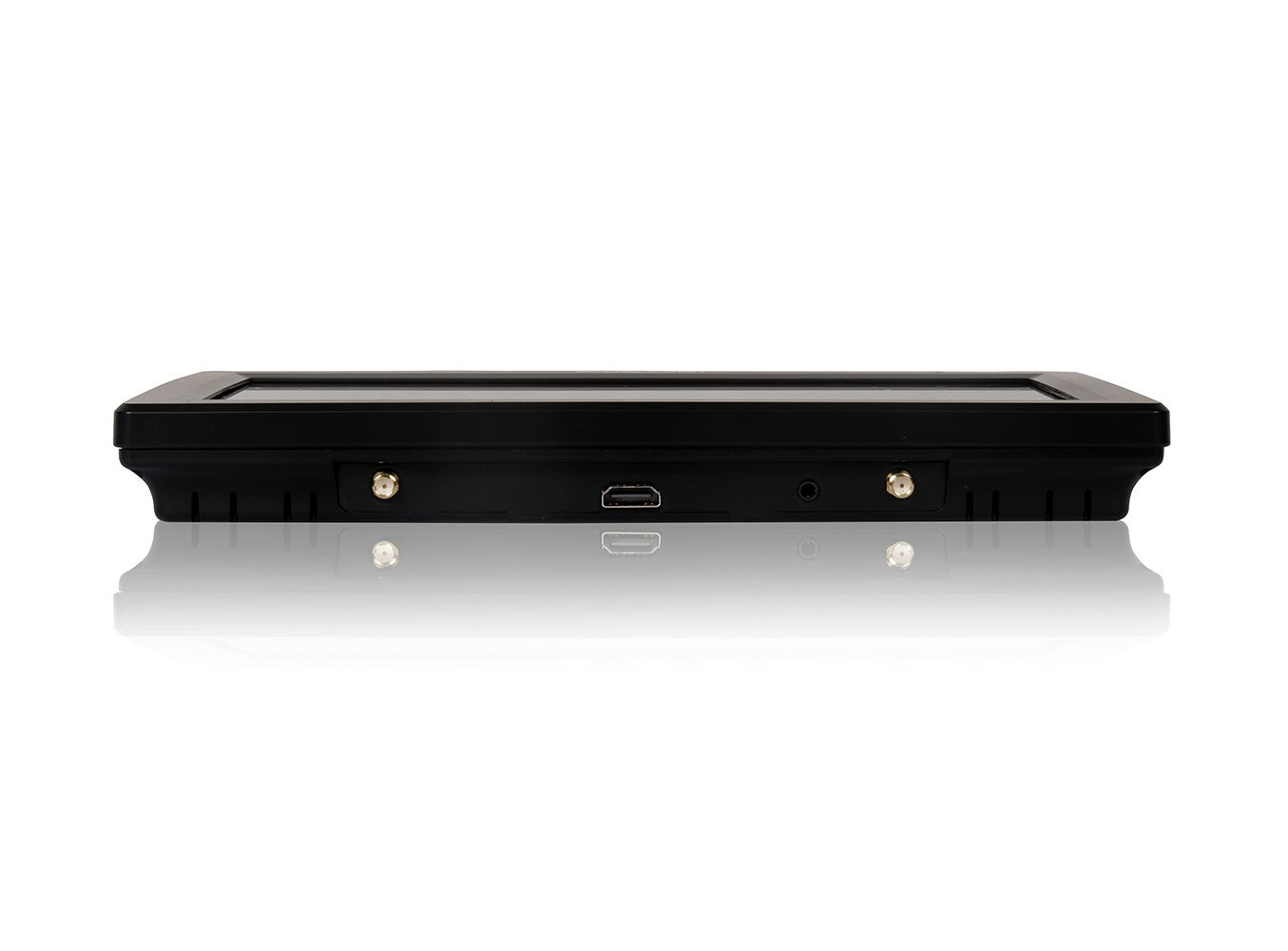

HDMI Input: Supports digital input (e.g., from Goggles or PC) up to 1080i/p.
-
AV Input/Output: 3.5mm jack for analog signals.
-
USB Output: 5V 1A (For charging mobile devices or powering external modules).
3. ฟังก์ชันการบันทึกและเชื่อมต่อ (DVR & Connectivity)
-
DVR: รองรับการบันทึกวิดีโอลง Micro SD Card (รองรับสูงสุด 64GB Class 10)
-
สามารถบันทึกและเปิดเล่นย้อนหลัง (Playback) ได้ทันที
-
มีฟังก์ชัน "Video Buffer" ช่วยในการติดตามโดรนที่ตกหายจากพิกัดล่าสุด
-
-
HDMI Input: รองรับการรับสัญญาณดิจิทัล (เช่น จาก Goggles หรือคอมพิวเตอร์) รองรับสูงสุด 1080i/p
-
AV Input/Output: มีช่องเสียบ 3.5mm สำหรับสัญญาณ Analog
-
USB Output: 5V 1A (สำหรับชาร์จอุปกรณ์อื่นหรือจ่ายไฟ)
4. Power & Physical Specs
-
Operating Voltage: 3S - 6S (10V - 26V).
-
Power Connector: Includes XT60 to DC adapter cable.
-
Cooling: Built-in cooling fan.
-
Dimensions: 265 × 170 × 31 mm.
-
Weight: Approx. 1.13 kg (Total package weight).
-
Antenna Connector: SMA.
4. พลังงานและขนาด (Power & Physical)
-
แรงดันไฟฟ้า: รองรับ 3S - 6S (10V - 26V)
-
หัวปลั๊กไฟ: มาพร้อมสายแปลง XT60 เป็น DC
-
การระบายความร้อน: มีพัดลมระบายความร้อนในตัว (Built-in Fan)
-
ขนาดเครื่อง: 265 × 170 × 31 มม.
-
น้ำหนัก: ประมาณ 1.13 กิโลกรัม (น้ำหนักรวมแพ็กเกจ)
-
ขั้วต่อเสาอากาศ: SMA
Key Highlights
-
No Blue Screen: When the signal weakens, the screen shows static rather than cutting to a blue or black screen. This allows pilots to maintain visual orientation and recover the drone.
-
Tracking Mode: Ideal for racing or environments requiring frequent channel changes; it automatically scans and locks onto the strongest signal in the area.
จุดเด่นที่น่าสนใจ:
-
No Blue Screen: สัญญาณอ่อนจะเป็นสัญญาณซ่า (Static) แทนที่จะตัดเป็นหน้าจอฟ้า/ดำ ทำให้ยังพอเห็นภาพเพื่อประคองโดรนได้
-
Tracking Mode: เหมาะมากสำหรับสนามแข่งหรือการใช้งานที่ต้องเปลี่ยนช่องบ่อยๆ เพราะสามารถสแกนหาคลื่นที่แรงที่สุดในพื้นที่ได้อัตโนมัติ

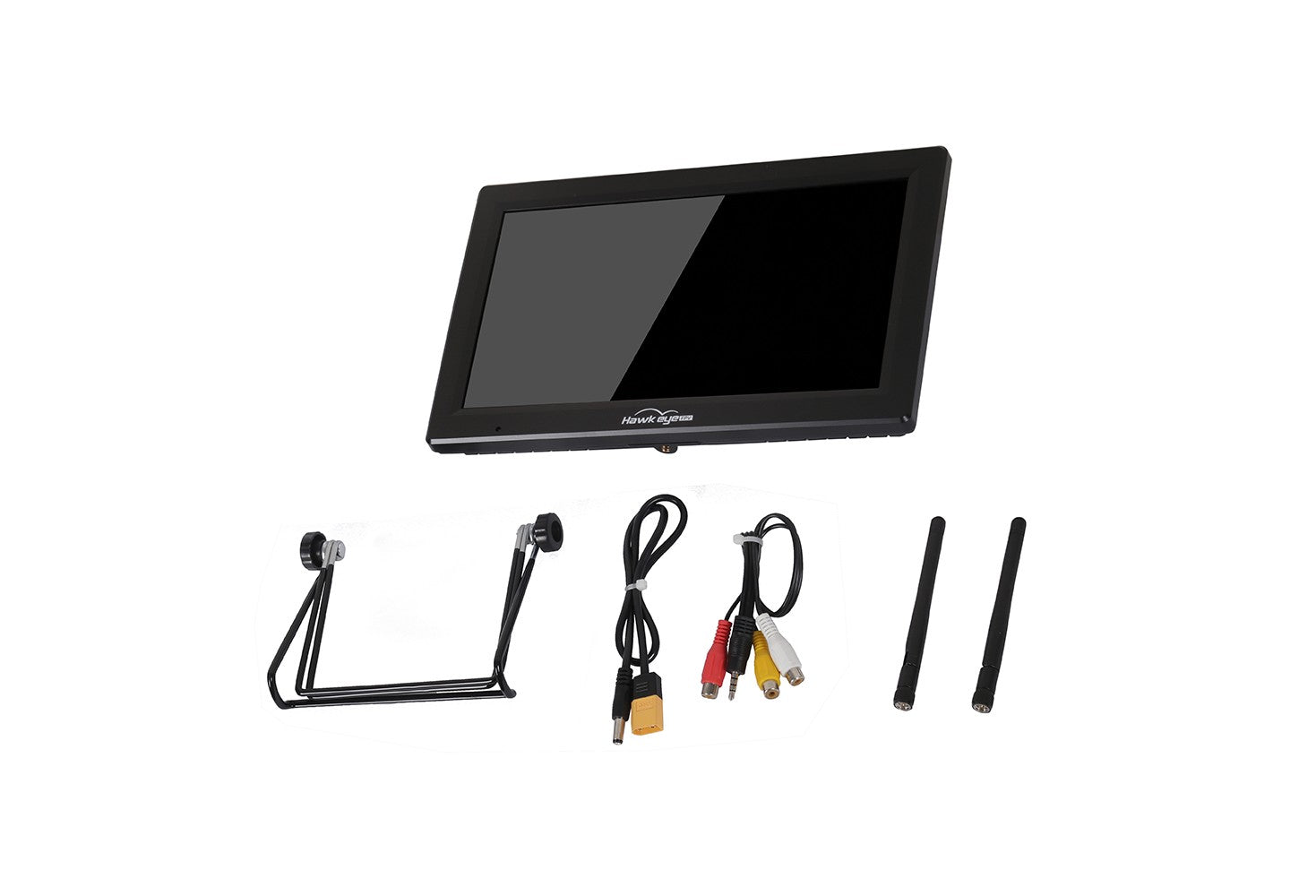

Standard Package Includes:
-

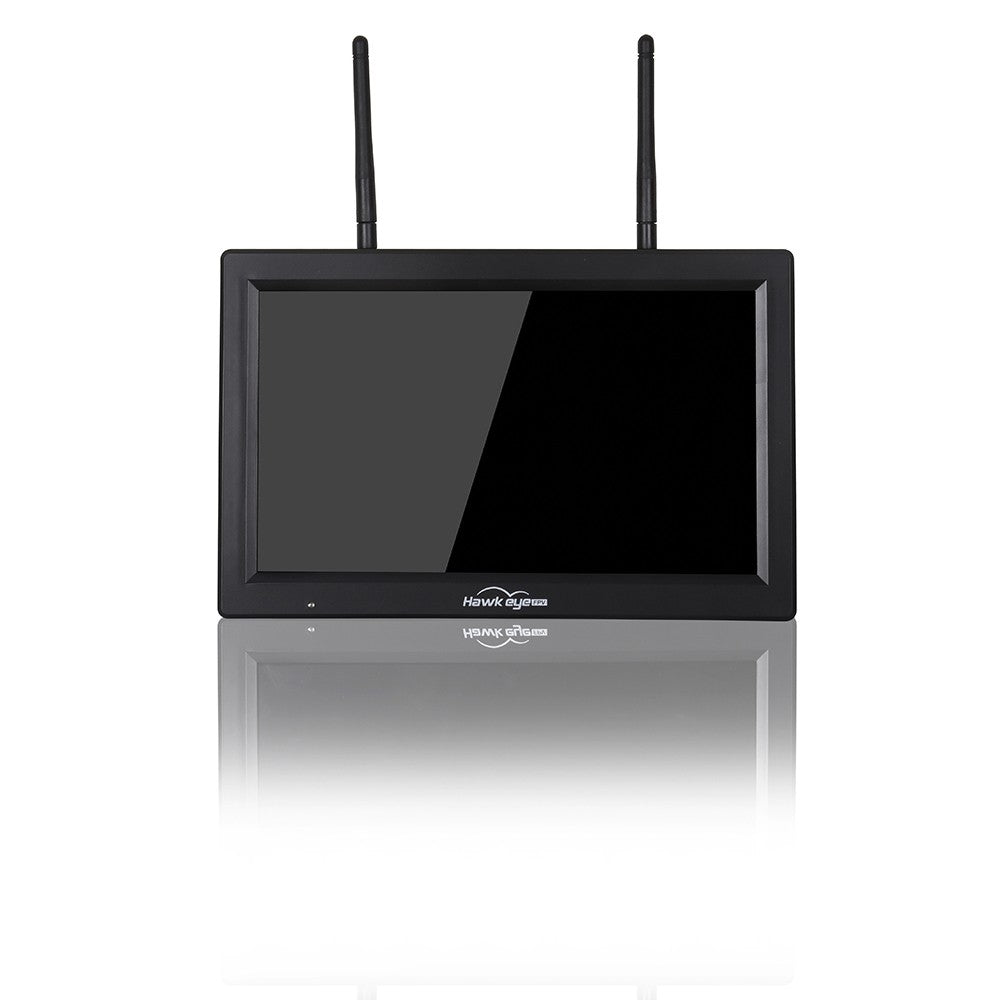

1x Hawkeye Captain X 10.2" Monitor
-
2x Linear Antennas
-
1x XT60 to DC Power Cable
-
1x AV Cable
-
1x Monitor Stand
อุปกรณ์ในชุดมาตรฐานมักจะประกอบด้วย:
-
ตัวจอ Hawkeye Captain X 10.2 นิ้ว
-
เสาอากาศ Linear 2 ต้น
-
สายไฟ XT60 to DC
-
สาย AV
-
ขาตั้งจอมอนิเตอร์
