Description
This model is specifically designed to solve the common challenge for pilots who need to share a live feed from DJI Goggles or utilize the OpenIPC system without the need for a separate smartphone or tablet.
รุ่นนี้ถูกออกแบบมาเพื่อแก้ปัญหาของนักบินที่ต้องการแชร์ภาพจากแว่น DJI Goggles หรือใช้งานระบบ OpenIPC โดยไม่ต้องพึ่งพาโทรศัพท์มือถือหรือแท็บเล็ตแยกต่างหาก
Specifications
Details
-
Operating SystemAndroid (Customized specifically for FPV)
-
Processor4GB RAM / 32GB ROM (Supports MicroSD up to 256GB)
-
Display10.2-inch IPS (Capacitive Touch Screen)
-
Resolution1024 x 600 (Supports scaling up to 1080P)
-
Brightness1000 Lux (High brightness for outdoor use)
-
Wireless ConnectivityBuilt-in 2.4GHz Wi-Fi
-
Analog ReceiverBuilt-in 5.8GHz Dual Diversity Receiver (SMA Connector)
-
Digital ConnectivityHDMI Input (1080P @ 60FPS) / USB Port for DJI
-
Voltage InputDC 10V - 26V (Supports 3S - 6S LiPo batteries)
-

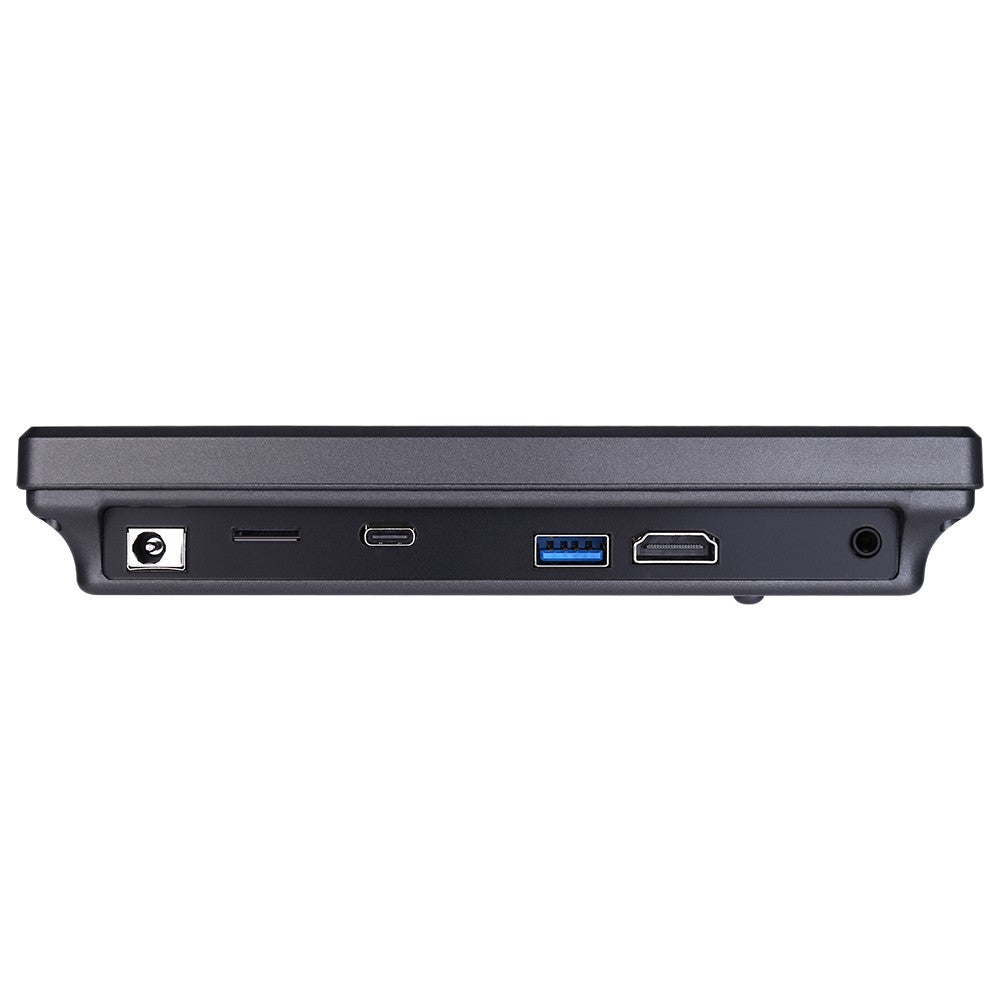

Expansion PortsUSB-A (for DJI V1/V2), Type-C (for Goggles 2/3)
รายละเอียด
-
ระบบปฏิบัติการ Android (ปรับแต่งมาเพื่อ FPV โดยเฉพาะ)
-
หน่วยประมวลผล RAM 4GB / ROM 32GB (รองรับ MicroSD สูงสุด 256GB)
-
หน้าจอ 10.2 นิ้ว IPS (Capacitive Touch Screen)
-
ความละเอียด 1024 x 600 (บางแหล่งระบุสเกลแสดงผลได้ถึง 1080P)
-
ความสว่าง 1000 Lux (High Brightness สำหรับใช้งานกลางแจ้ง)
-
การเชื่อมต่อไร้สาย Wi-Fi 2.4GHz ในตัว
-
การรับสัญญาณ Analog มีตัวรับ 5.8GHz Dual Diversity ในตัว (รองรับ SMA)
-
การเชื่อมต่อ Digital HDMI Input (1080P @ 60FPS) / USB Port สำหรับ DJI
-
แรงดันไฟฟ้า DC 10V - 26V (รองรับแบตเตอรี่ Lipo 3S - 6S)
-
พอร์ตเสริม USB-A (สำหรับ DJI V1/V2), Type-C (สำหรับ Goggles 2/3)
Compatibility & Features
DJI Goggles (V1, V2, G2, G3)
-
Simply connect a USB cable from the goggles directly to the monitor.
-
The monitor comes pre-installed with the FPVOut app (for V1/V2) and DJI Fly app (for Goggles 2/3), allowing for instant live-streaming onto the large screen.
OpenIPC Support
-
Built-in support for the OpenIPC system via the pre-installed PixelPilot app.
-
Includes a built-in RTL8812AU network card (on specific versions) to receive Digital HD video signals directly from OpenIPC-equipped drones.
HDMI Monitor
-
Can be used as a high-definition external monitor for other devices via the HDMI port.
ฟีเจอร์การใช้งานร่วมกับอุปกรณ์อื่น
-
DJI Goggles (V1, V2, G2, G3):
-
สามารถเสียบสาย USB จากแว่นเข้าที่จอมอนิเตอร์ได้เลย
-
ตัวจอจะมีแอป FPVOut (สำหรับ V1/V2) และ DJI Fly (สำหรับ Goggles 2/3) ติดตั้งมาให้พร้อมใช้งาน เพื่อดึงภาพจากแว่นมาโชว์บนจอใหญ่ทันที
-
-
OpenIPC Support:
-
รองรับการใช้งานร่วมกับระบบ OpenIPC ผ่านแอป PixelPilot ที่ติดตั้งมาในตัว
-
มีการ์ดเครือข่าย RTL8812AU ในตัว (ในบางเวอร์ชัน) เพื่อรับสัญญาณวิดีโอแบบ Digital HD จากโดรนที่ใช้ OpenIPC ได้โดยตรง
-
-
HDMI Monitor: * ใช้เป็นจอมอนิเตอร์ความคมชัดสูงสำหรับอุปกรณ์อื่นๆ ผ่านพอร์ต HDMI ได้

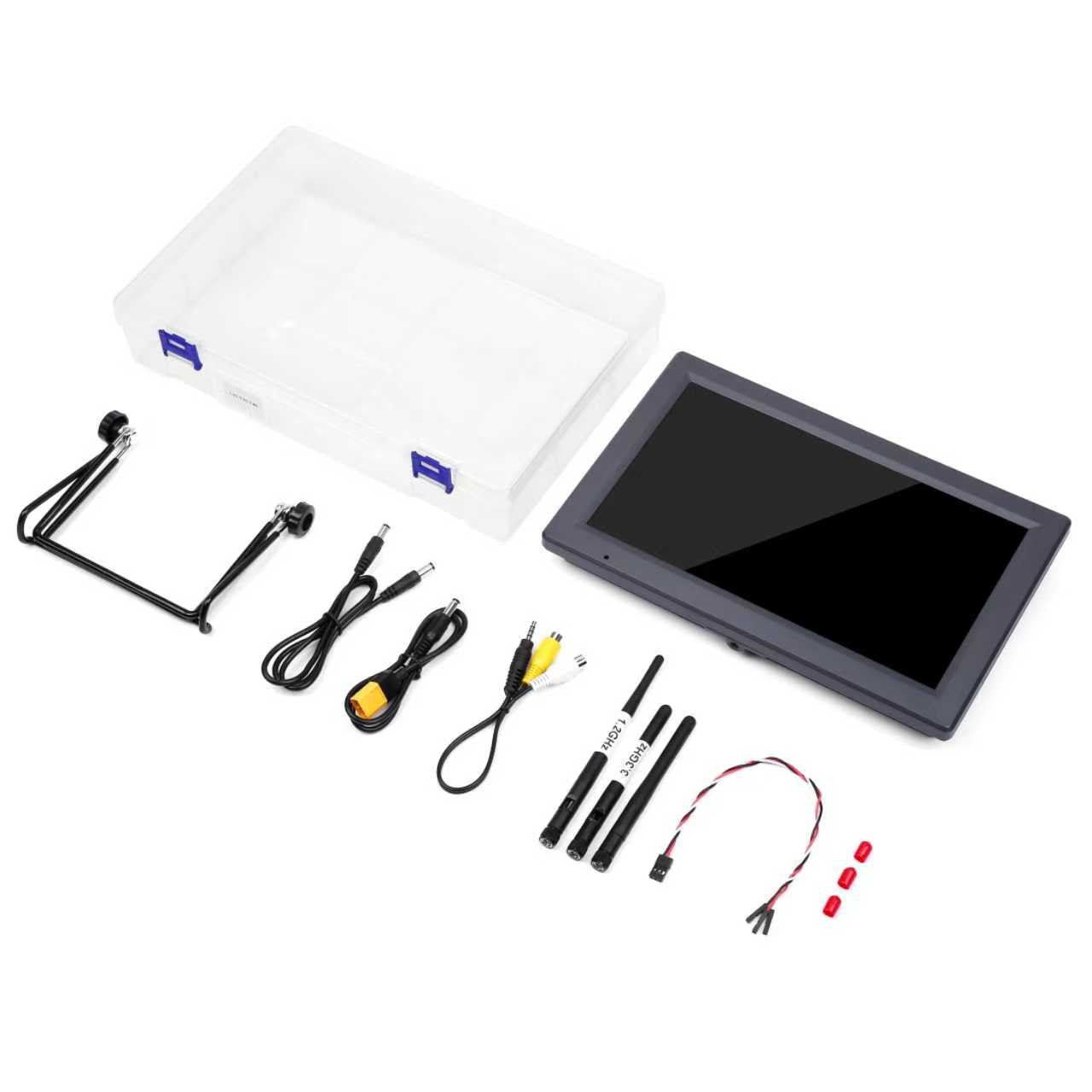

What's in the Box (Estimated)
-

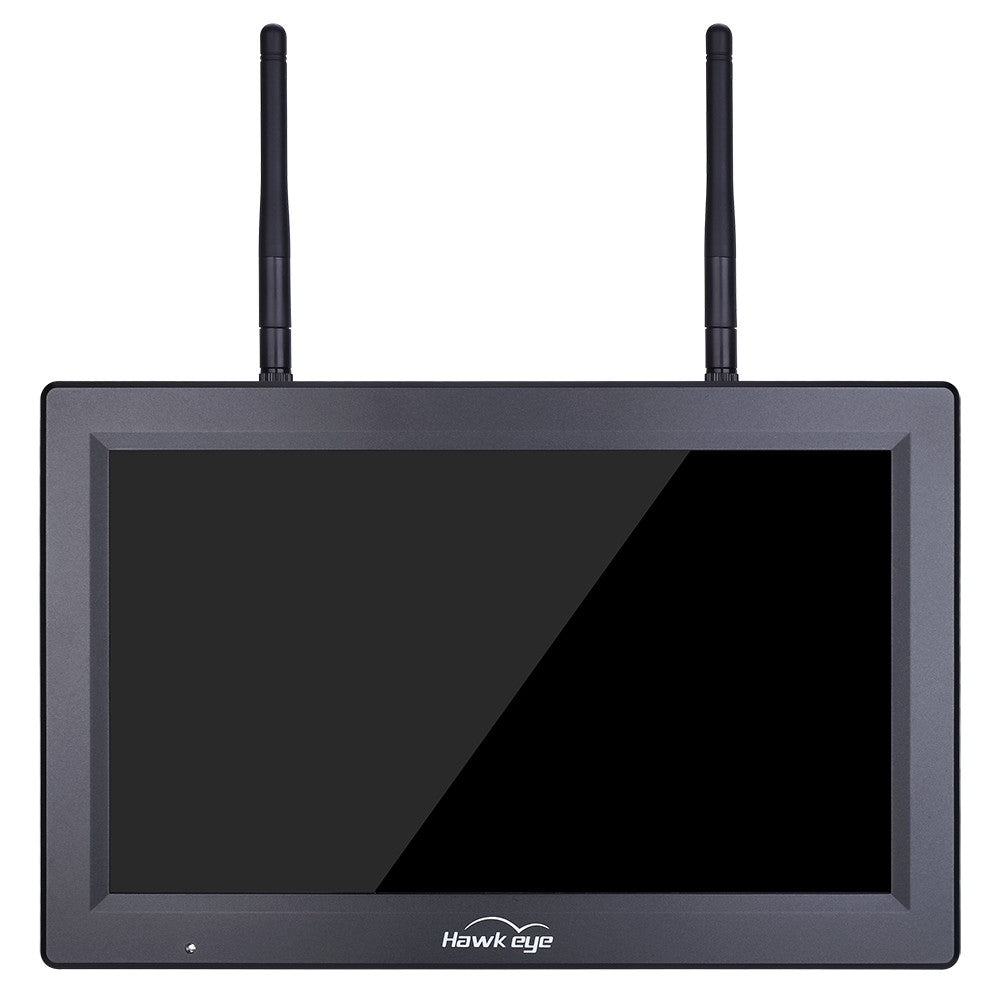

1x Hawkeye Captain Android 10.2" Monitor
-
5.8G Antennas (SMA)
-
DC Power Cable (XT60)
-
Monitor Stand / Tripod Mount
-
HDMI or AV Cables (depending on the specific bundle)
อุปกรณ์ในชุด (โดยประมาณ)
-
หน้าจอ Hawkeye Captain Android 10.2"
-
เสาสัญญาณ 5.8G (SMA)
-
สายไฟ DC (XT60)
-
ขาตั้งจอมอนิเตอร์ (Stand/Tripod Mount)
-
สาย HDMI หรือ AV ตามรุ่นที่จำหน่าย
