Notice before buy:According to DJI’s warranty policy, if there is a problem with the DJI O4 Air unit installed on the BNF Drone, it needs to be sent back to China mainland for warranty, please noticed.

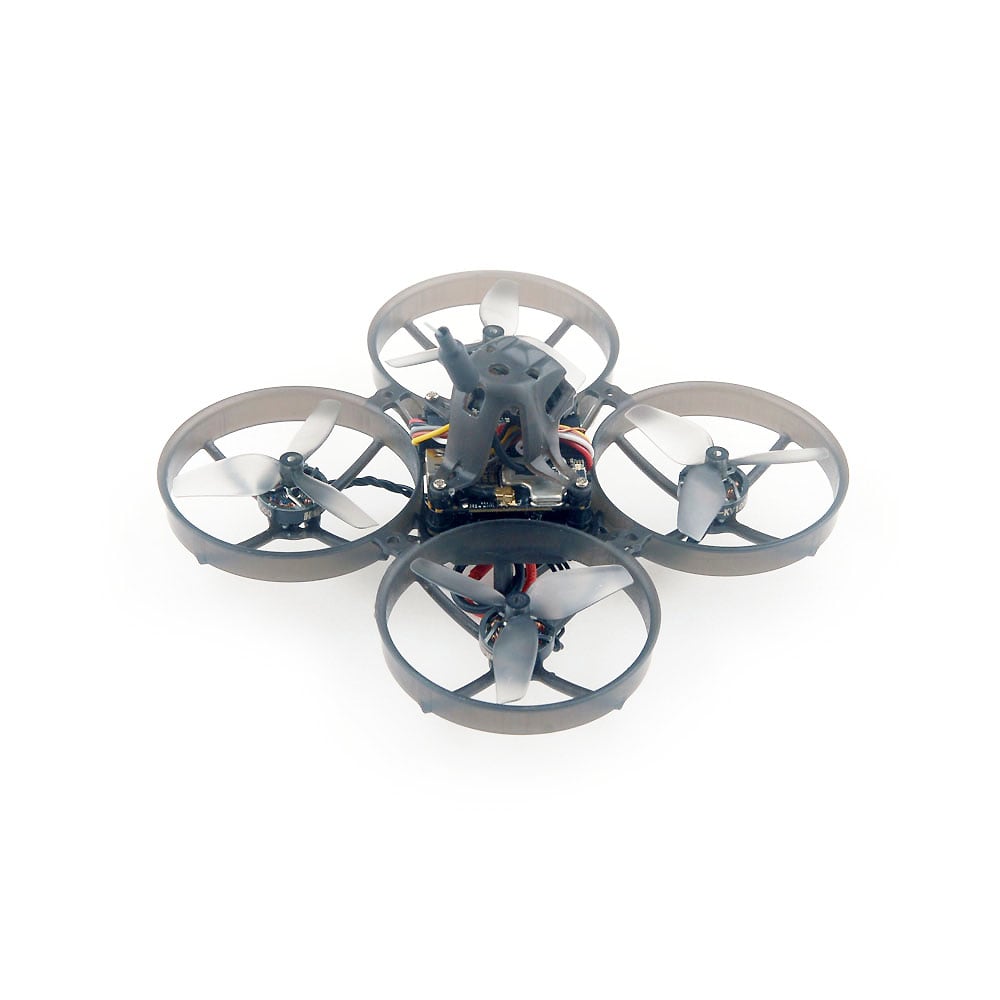

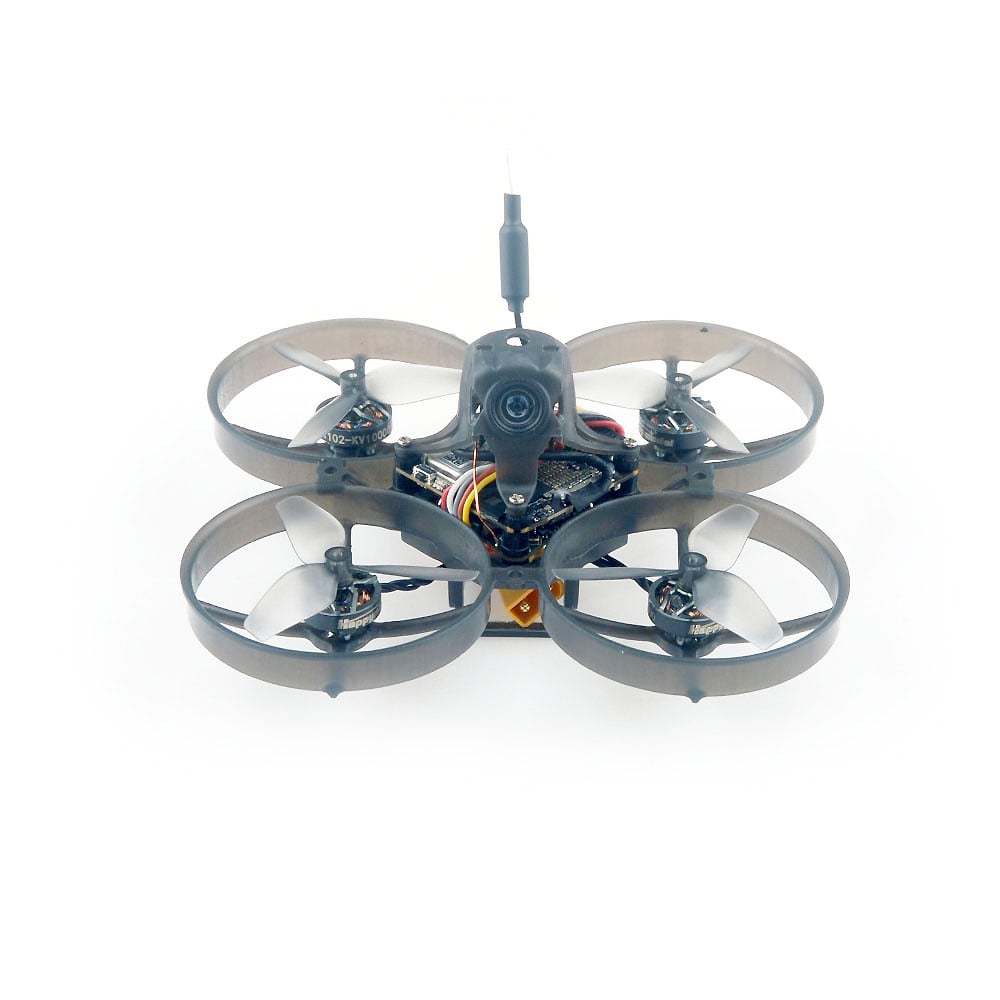

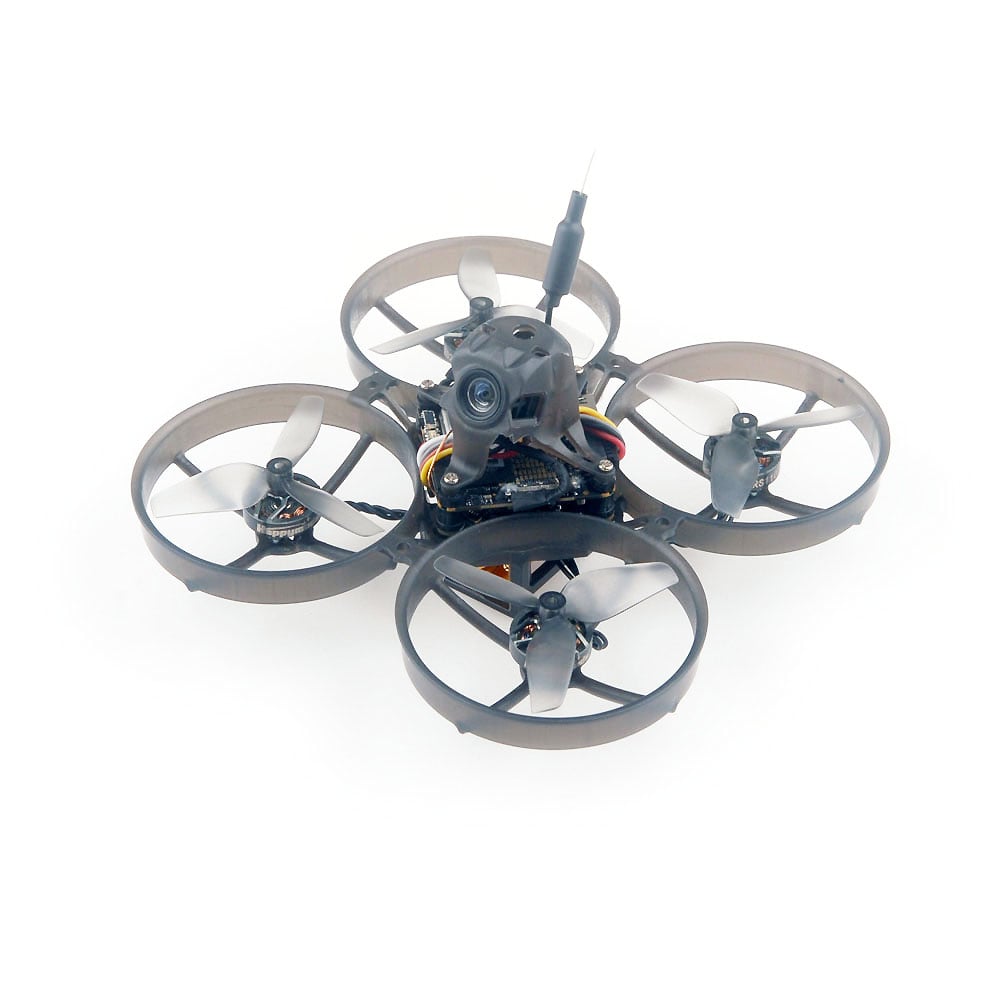

The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 air unit which would provide excellent and unbelievable FPV footage. And the new Happymodel RS1102 KV10000 motor with HQPROP 45mm propellers , bring a powerful and smooth flying experience. This would be a good option for indoor and backyard FPV flying.
Features
-
Equipment with New DJI O4 air unit
-
2S battery support Powerful and Smooth freestyle flying
-
UART ExpressLRS receiver support stable control link
-
Lighter and small for indoor FPV
-
Flight time: around 5 minutes
- Factory SKU: 5A10097
คุณสมบัติเด่น (Features)
- มาพร้อมระบบ DJI O4 Air Unit ใหม่ล่าสุด: ให้ภาพคมชัดระดับดิจิทัล
- รองรับแบตเตอรี่ 2S: ให้พลังการบินที่แรงและลื่นไหลสำหรับการบินสไตล์ Freestyle
- รีซีฟเวอร์ UART ExpressLRS: มั่นใจได้ในความเสถียรของสัญญาณควบคุม
- น้ำหนักเบาและขนาดเล็ก: เหมาะสำหรับการบิน FPV ภายในอาคาร (Indoor)
- ระยะเวลาบิน: ประมาณ 5 นาที
- รหัสสินค้าจากโรงงาน (Factory SKU): 5A10097

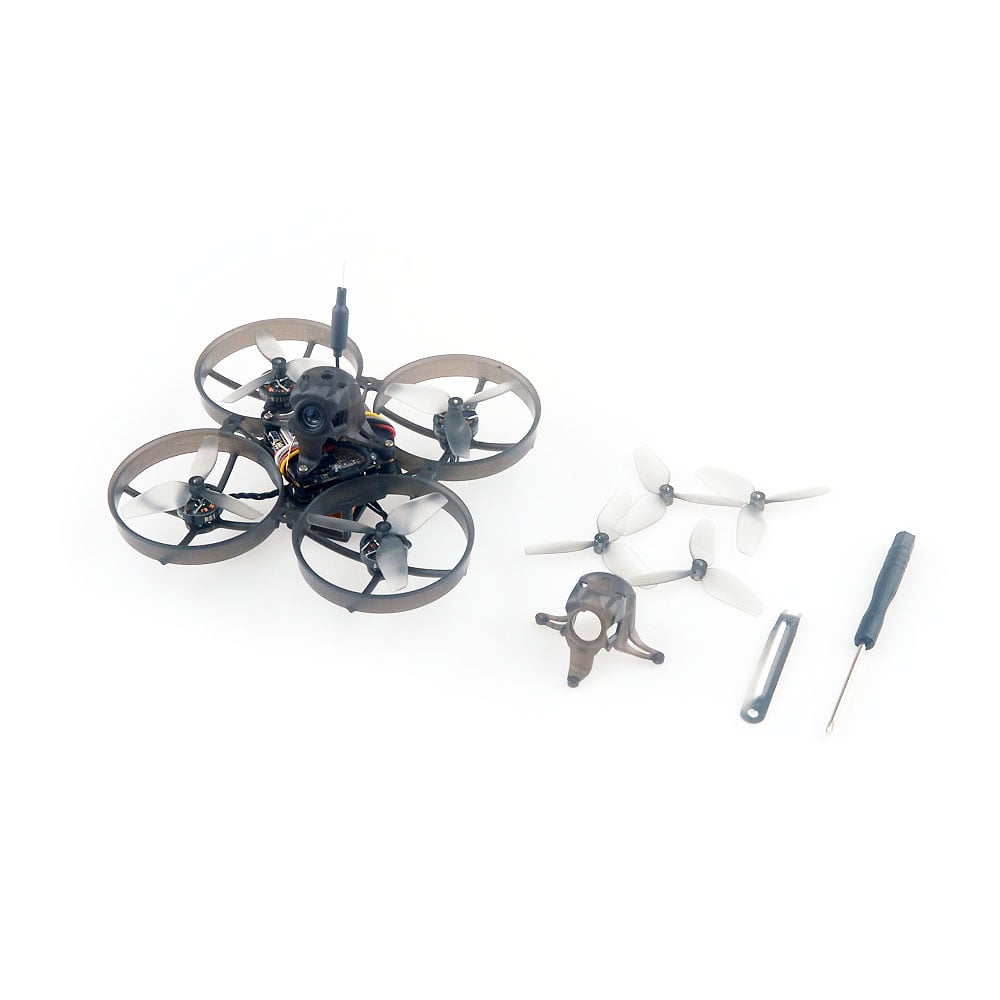

Package includes
-
Happymodel M80 Frame : 1
-
CrazyF405HD ELRS flight controller firmware target:CRAZYBEEF405 : 1
-
RS1102 KV10000 brushless motor : 4
-
HQPROP 45MMX3 tri-blade propellers(4cw+4ccw) : 1
-
DJI O4 Air unit : 1
-
Canopy : 1
- Screw driver : 1
อุปกรณ์ภายในกล่อง (Package Includes)
- เฟรม Happymodel M80 : 1
- ชุดคอนโทรลเลอร์ CrazyF405HD ELRS (Firmware: CRAZYBEEF405) : 1 ชุด
- มอเตอร์บรัชเลส RS1102 KV10000 : 4 ตัว
- ใบพัด HQPROP 45mm แบบ 3 แฉก (4CW + 4CCW) : 1 ชุด
- ชุดส่งภาพ DJI O4 Air Unit : 1 ชุด
- คาโนปี้ (ฝาครอบ) : 1 ชุด
- ไขควง : 1 อัน
Spare parts specifications:
Motor
-
Mode: RS1102 KV10000
-
Configu-ration:9N12P
-
Stator Diamter:11mm
-
Stator Length:2mm
-
Shaft Diameter:Φ1.5mm
-
Motor Dimension(Dia.*Len):Φ13.5mm*14mm
-
Weight(g):2.8g
- No.of Cells(Lipo):1-2S
มอเตอร์ (Motor)
- รุ่น: RS1102 KV10000
- โครงสร้าง: 9N12P
- ขนาดสเตเตอร์: เส้นผ่านศูนย์กลาง 11 มม. / ยาว 2 มม.
- ขนาดแกน (Shaft): 1.5 มม.
- น้ำหนัก: 2.8 กรัม
- รองรับแบตเตอรี่: 1-2S Lipo
Propellers
-
Weight: 0.33g
-
Material: Poly Carbonate
-
Pitch: 0.9
-
Props Dia: 45mm
-
Hub Thickness: 5mm
- Shaft: 1.5mm
ใบพัด (Propellers)
- น้ำหนัก: 0.33 กรัม
- วัสดุ: โพลีคาร์บอเนต (Poly Carbonate)
- ระยะพิตช์ (Pitch): 0.9
- เส้นผ่านศูนย์กลางใบพัด: 45 มม.
Onboard 4in1 ESC
-
Power supply: 1-2S LiPo/LiPo HV
-
Current: 12A continuous peak 15A (3 seconds)
-
Support BLHeli_S Bluejay firmware
-
Factory firmware: Bluejay ESC V0.19
-
Firmware target: Z-H-30
-
Default protocol: DSHOT300
- When use 1s battery and high KV 0702/0802 motors, should set startup power to
- 1100/1200
สปีดคอนโทรล (Onboard 4in1 ESC)
- กระแสไฟ: ต่อเนื่อง 12A / พีคสูงสุด 15A (3 วินาที)
- เฟิร์มแวร์: Bluejay V0.19 (Target: Z-H-30)
- โปรโตคอลเริ่มต้น: DSHOT300
- หมายเหตุ: หากใช้แบต 1S กับมอเตอร์ KV สูง (0702/0802) ควรตั้งค่า Startup Power เป็น 1100/1200
Onboard UART ExpressLRS 2.4GHz Receiver
-
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
-
RF Frequency: 2.4GHz
-
Antenna: enameled copper wire 31mm length
-
Telemetry output Power: <12dBm
-
Default firmware version: ExpressLRS V3.0.1
-
Firmware target: HappyModel EP 2400 RX
- Could update firmware via ExpressLRS configurator
ตัวรับสัญญาณ (Onboard UART ExpressLRS 2.4GHz)
- Packet Rate: รองรับตั้งแต่ 25Hz ถึง 500Hz
- เสาอากาศ: ลวดทองแดงเคลือบ ยาว 31 มม.
- เวอร์ชันเฟิร์มแวร์: ExpressLRS V3.0.1 (Target: HappyModel EP 2400 RX)
DJI O4 Air Unit
-
Weight:
-
Air Unit (camera module included): Approx. 8.2 g
-
Transmission Module: 30×30×6 mm (L×W×H)
-
Camera Module: 13.44×12.36×16.50 mm (L×W×H)
-
Camera Cable Length: 50mm
-
Coaxial Cable: 50 mm
-
3-in-1 Cable: 50 mm
-
Operating Frequency:
-
5.170-5.250 GHz
-
5.725-5.850 GHz
-
Operating frequency varies by region. Refer to local regulations.
-
Transmitter Power (EIRP):
-
5.1 GHz: <23 dBm (CE)
-
5.8 GHz:
-
<30 dBm (FCC)
-
<14 dBm (CE)
-
<30 dBm (SRRC)
- Live View Quality: 1080p at 30/50/60/100fps
ชุดส่งภาพ DJI O4 Air Unit
- น้ำหนัก: ประมาณ 8.2 กรัม (รวมกล้อง)
- ขนาดโมดูลส่งสัญญาณ: 30 × 30 × 6 มม.
- ขนาดโมดูลกล้อง: 13.44 × 12.36 × 16.50 มม.
- คุณภาพการดูภาพสด (Live View): 1080p ที่ 30/50/60/100fps
