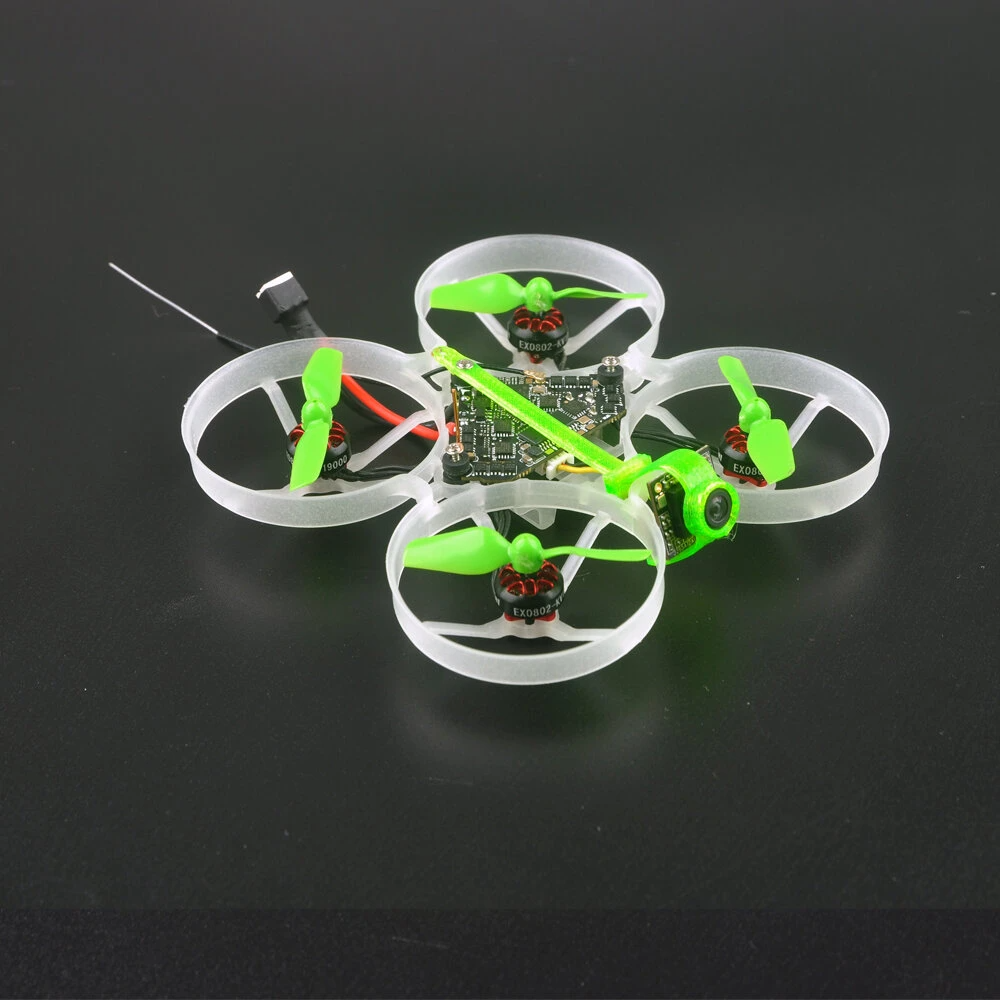

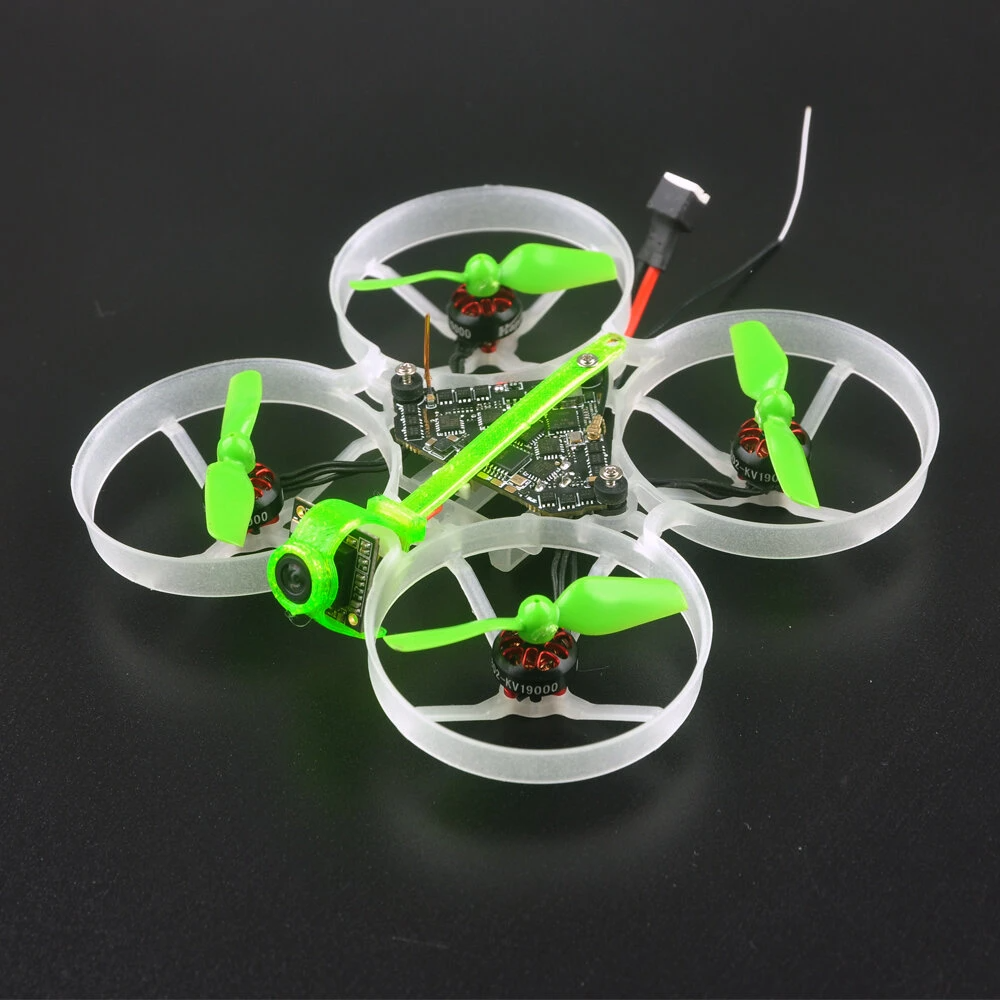

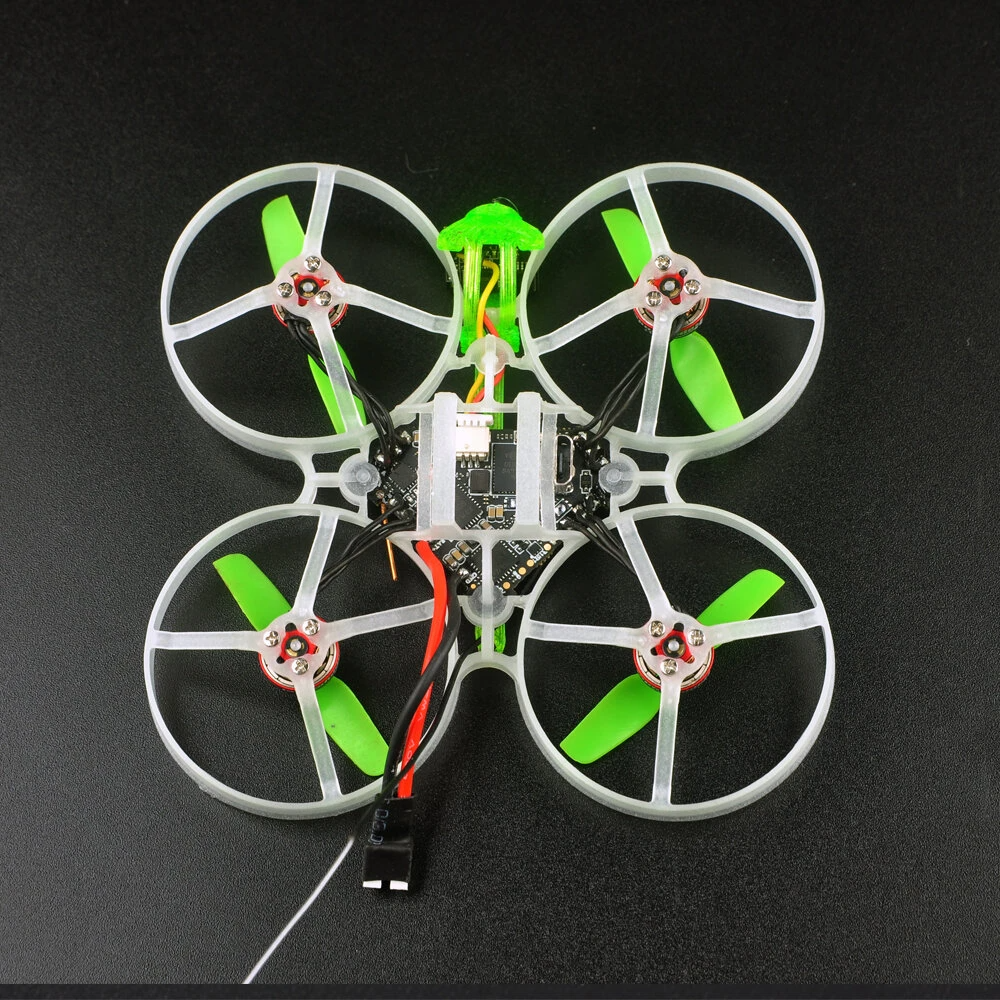

Happymodel Moblite7 1S 75mm ultra light brushless whoop
Happymodel Moblite7 1S 75mm ultra light brushless whoop
Happymodel Moblite7 1S 75mm ultra light brushless whoop
Happymodel Moblite7 1S 75mm ultra light brushless whoop
Happymodel Moblite7 1S 75mm ultra light brushless whoop

Happymodel Moblite7 1S 75mm ultra light brushless whoop

Vendor
Happymodel
Regular price
2,850.00 ฿
Sale price
2,850.00 ฿
Unit price
per
Shipping calculated at checkout.

19.5g Happymodel Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera - Compatible Frsky Receiver

Specification:

Brand: Happymodel

Item Name: Moblite7 1S 75mm ultra light brushless whoop
Wheelbase: 75mm
Size: 97x97x25mm
Weight: 19.5g (without battery)
Weight: 36g (with Original 1s 650mah Lipo battery )

 Motor

 Model: EX 0802 19000KV ( New Unibell Version)

 Configuration: 9N12P
 Stator Diameter: 8mm
 Stator Length: 2mm
 Shaft Diameter:Φ1mm
 Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
 Weight(g): 1.7g
 No.of Cells(Lipo): 1S only

 Flight Controller

 (Frsky SPI RX Version) DiamondF4 FR FC Firmware   Target: CrazybeeF4FR

 MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
 Sensor: MPU-6000 (SPI connection)
 Original whoop size compatible
 Power supply: 1S battery input (DC 2.9V-4.35V)
 Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
 Built-in Betaflight OSD(SPI Control)
 Built-in 5.8G VTX
 Built-in SPI Frsky/Flysky receiver
 Built-in 5V 1A BEC

 Onboard 4in1 ESC

 MCU Upgraded to EFM8BB21

 Power Supply: 1S LiPo/LiPo HV
 Current: 5A continuous, peak 6A (3 seconds)
 Support BLHeliSuite programmable
 Factory Firmware: O_H_50_REV16_8.HEX
 Default Protocol: DSHOT600

 Onboard Frsky SPI D8 receiver Version

 SPI BUS Receiver Frsky D8 Compatible

 Compatible Non EU transmitter D8 model
 Channels: 8CH
 Failsafe Support
 No ground interference ( Transmitter and receiver 1 m from the   ground): 200m~300m
 Onboard Flysky Receiver Version

 SPI BUS Receiver

 Protocol: AFHDS and AFHDS-2A Switchable

 Channels: 8CH (AFHDS) or 14CH (AFHDS-2A)

 No ground interference ( Transmitter and receiver 1 m from the   ground): 100~200m

 Failsafe Support

 Onboard 5.8G 40CH 25-200mW VTX

 Output Power: 25mw~200mw switchable

 Frequency: 40CH
 Input Voltage: 3.3V 5.5V
 Current Consumption: 300mA (type)
 Frequency: 5.8GHz 5bands 40 channels (include Race band)
 Smartaudio Ready

 Runcam Nano 3 FPV Camera

Model: RunCam Nano 3

Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V  120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

 Lipo Battery

 Capacity: 650mAh

 Voltage: 3.8V
 Continuous Discharge Rate: 30C
 Instantaneous Discharge Rate: 60C
 Size: 60mmx18mmx8mm
 Weight: 16g
 Connector: PH2.0

 Quantity: 2 PCS


Features:
- The lightest 1s 75mm brushless whoop
- Powerful and efficiency
- The lightest 1s AIO 5IN1 F4 flight controller
- New Unibell EX0802 brushless motors
- Low profile Canopy design
- VTX power switchable 25mw~200mw

Package Included:

1 x Happymodel Moblite7 75mm Whoop RC FPV Racing Drone
Option1: 1 x DiamondF4 FR built-in SPI Frsky Receiver
Option2: 1 x DiamondF4 FS built-in SPI Flysky Receiver
4 x EX0802 KV19000 Unibell Brushless Motor
1 x HQPROP 40MMX2 Propeller(4cw+4ccw)
1 x Runcam Nano 3 FPV Camera
1 x Built-in 5.8G 40ch 25mw-200mw VTX
2 x 1S 650mah Lipo Battery
1 x Propeller Disassemble Tool
1 x Screwdriver

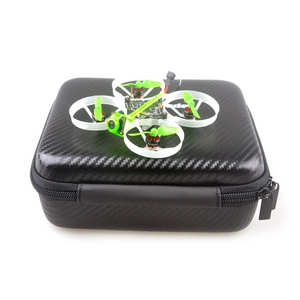

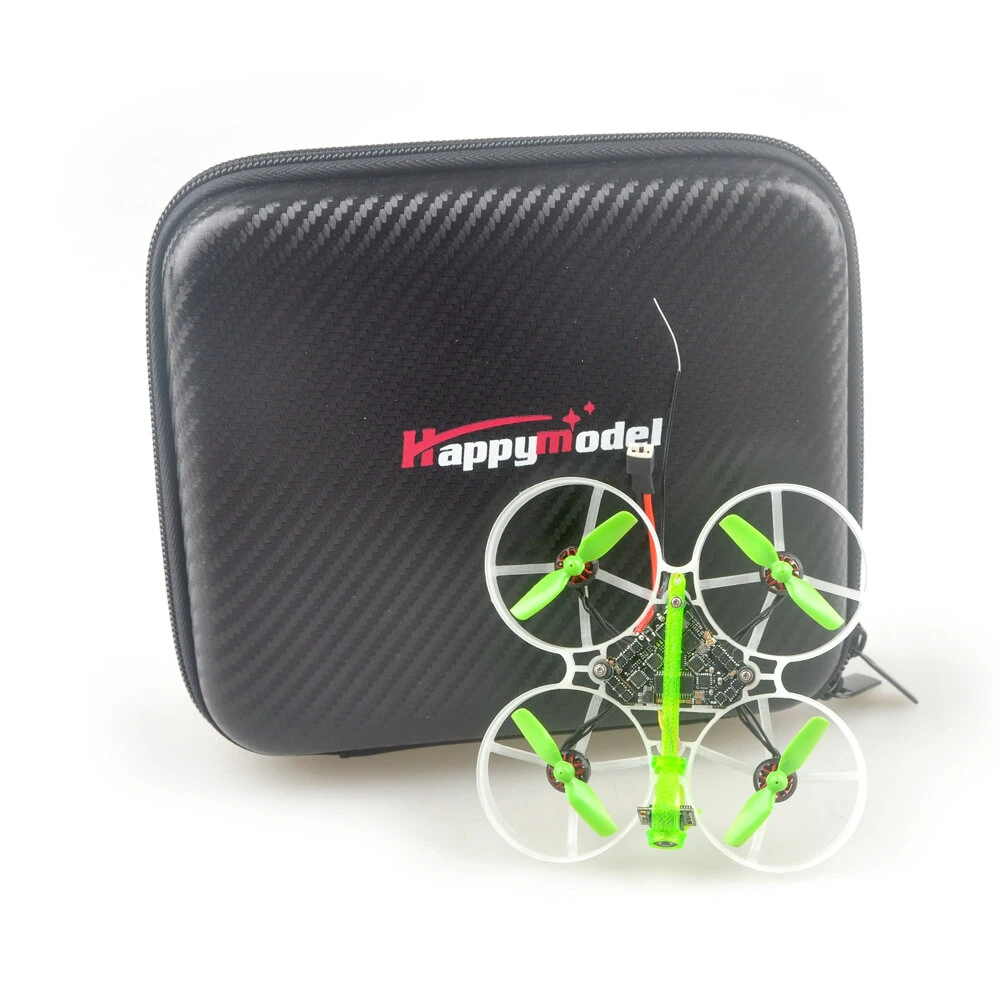

1 x Happymodel Carry Case
