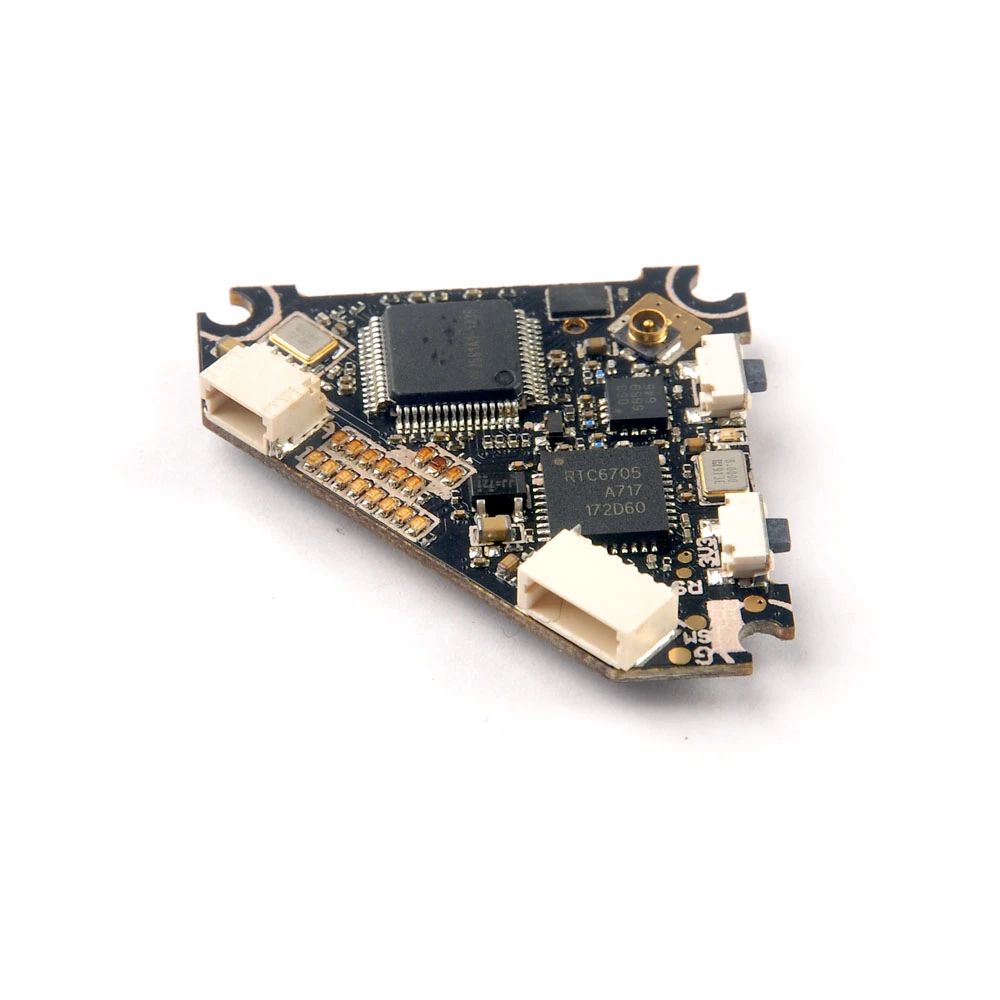

Happymodel Diamond 5.8Ghz 40CH 25/100/200mW Switchable VTX FPV Transmitter with DVR Smartaudio Ready 3.3-5.5V

Happymodel Diamond 5.8Ghz 40CH 25/100/200mW Switchable VTX FPV Transmitter with DVR Smartaudio Ready 3.3-5.5V

Vendor
Makerfire
Regular price
750.00 ฿
Sale price
750.00 ฿
Unit price
per

Specifications:

Brand Name: Happymodel

Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 4.8v~5.5v
Current consumption: 250mA~510mA(type)
Antenna: RG178 antenna

U.FL interface
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready
Weight: 3g without antenna

Video Output Size: VGA (640×480)

Video Output format: NTSC

Record video size : 1280×720 @25FPS

TF Card support: Max.32G
Interface: JST SH1.0 3pin for Camera

JST SH1.0 5pin for Connect with F3/F4 Flight controller

Compress Format: AVI



Features:
Short touch the button to Start/Stop Video recorder

The video will split to 2 minutes automatically

Best for upgrade Mobula7 / Eachine Trashcan

Small size , lighter only 3gram and easy to mount in a regular whoop

Built-in DVR(Video size 1280×720)

Auto start when power on

Note: Auto-save when Power off is not support, please remember to press the stop button after landing



Package include:

Diamond_VTX  x1

JST SH1.0 3Pin wire for camera  x1

JST SH1.0 5Pin wire for flight controller x1



Recommended parts to fit the Diamond VTX

Happymodel Mobula7 V2 canopy

CADDX EOS2 camera

Runcam Nano2 camera
