Happymodel 2.4g ExpressLRS ELRS TX module ES24TX-Lite for T-lite
Happymodel 2.4g ExpressLRS ELRS TX module ES24TX-Lite for T-lite
Happymodel 2.4g ExpressLRS ELRS TX module ES24TX-Lite for T-lite
Happymodel 2.4g ExpressLRS ELRS TX module ES24TX-Lite for T-lite

Happymodel 2.4g ExpressLRS ELRS TX module ES24TX-Lite for T-lite

Vendor
Happymodel
Regular price
1,400.00 ฿
Sale price
1,400.00 ฿
Unit price
per
Shipping calculated at checkout.

Specific Slim 2.4GHz ExpressLRS TX module for Jumper T-lite is coming out now.
This Slim TX module is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX –Slim module is a complete solution which is already pre-load the Expresslrs firmware and it’s plug and play for Jumper T-lite.
This Slim TX module come with CNC Aluminum alloy case which could help the module to dissipate heat under high power conditions.
Due to the power supply defect of T-lite with external high power TX module, we provide a power module to ensure that the TX module can work stably under high power conditions.

Specifications:
Regulatory Domain: ISM2400
MCU:ESP32(main),ESP8285(aux,as espbackpack)
RF chip:SX1280IMLTRT
JR standard 5pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: 10dBm~24dBm
Power supply voltage: 3v~4.5v
Weight: 7.5gram(without antenna and case)
Dimension: 57mm*27mm*12mm(Without CNC case)
Antenna gain:1.87dBi

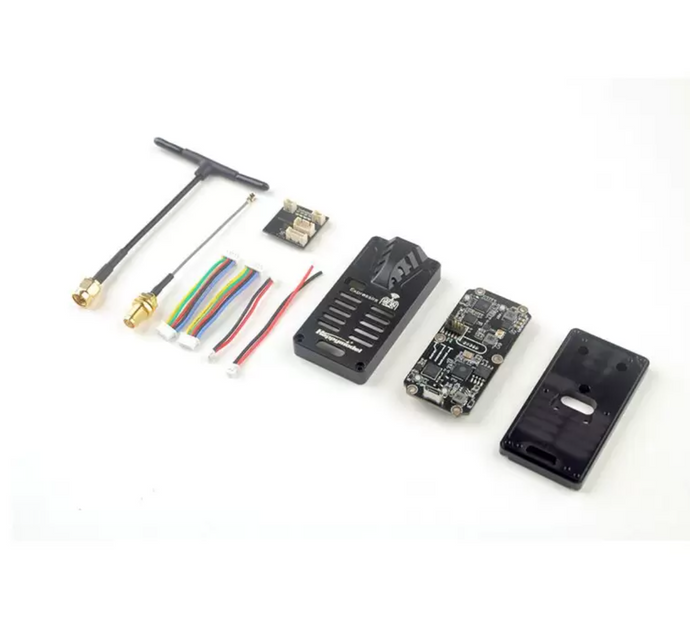

Package include:
ES24TX-Slim *1
T_Lite EXTCONV power module *1
24TX80 antenna *1
CNC Aluminum alloy case *1
Antenna adapter cable *1
Connection wire *1 set
