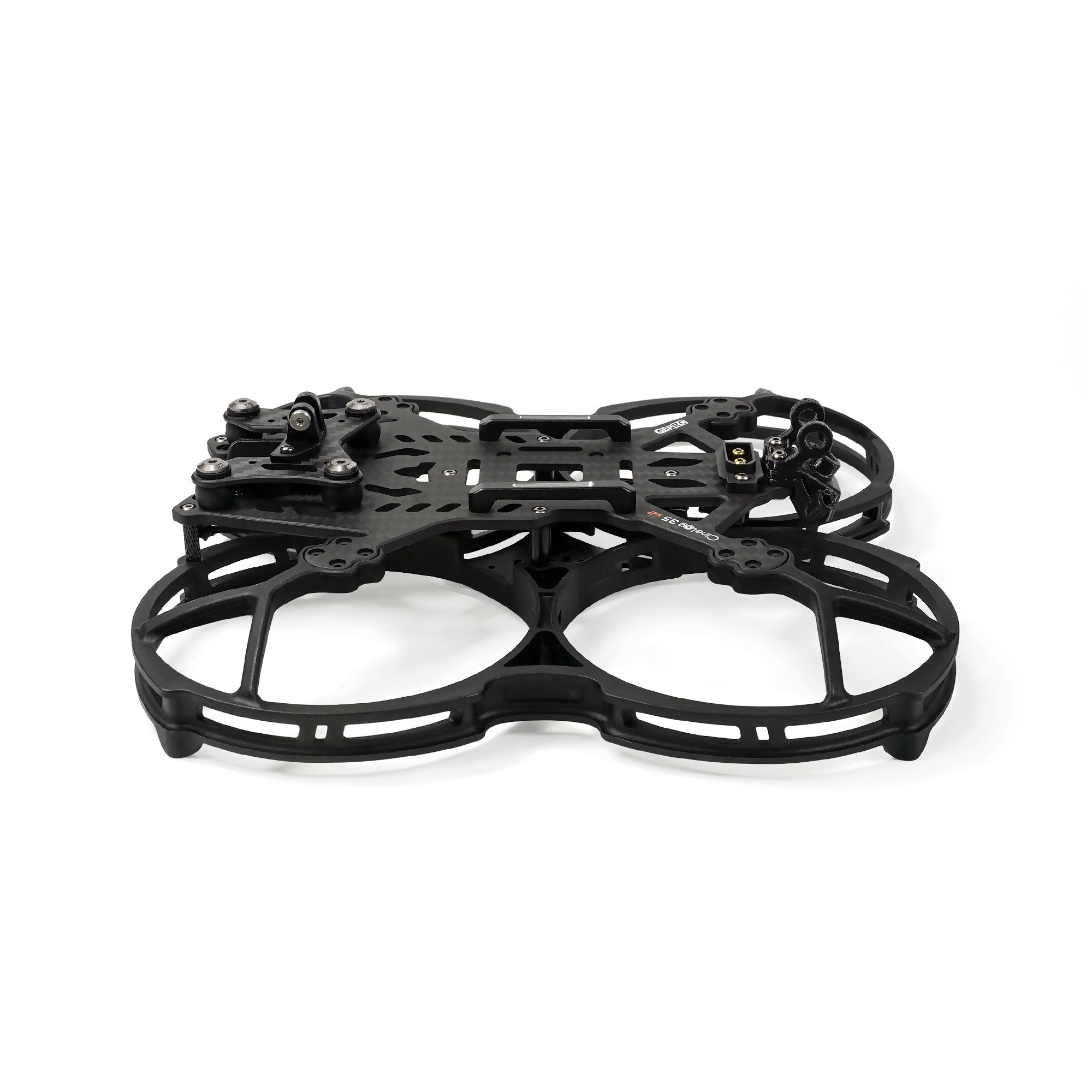

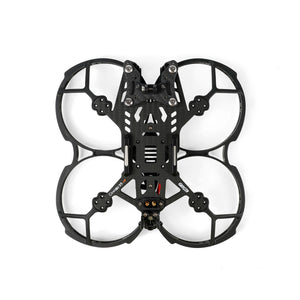

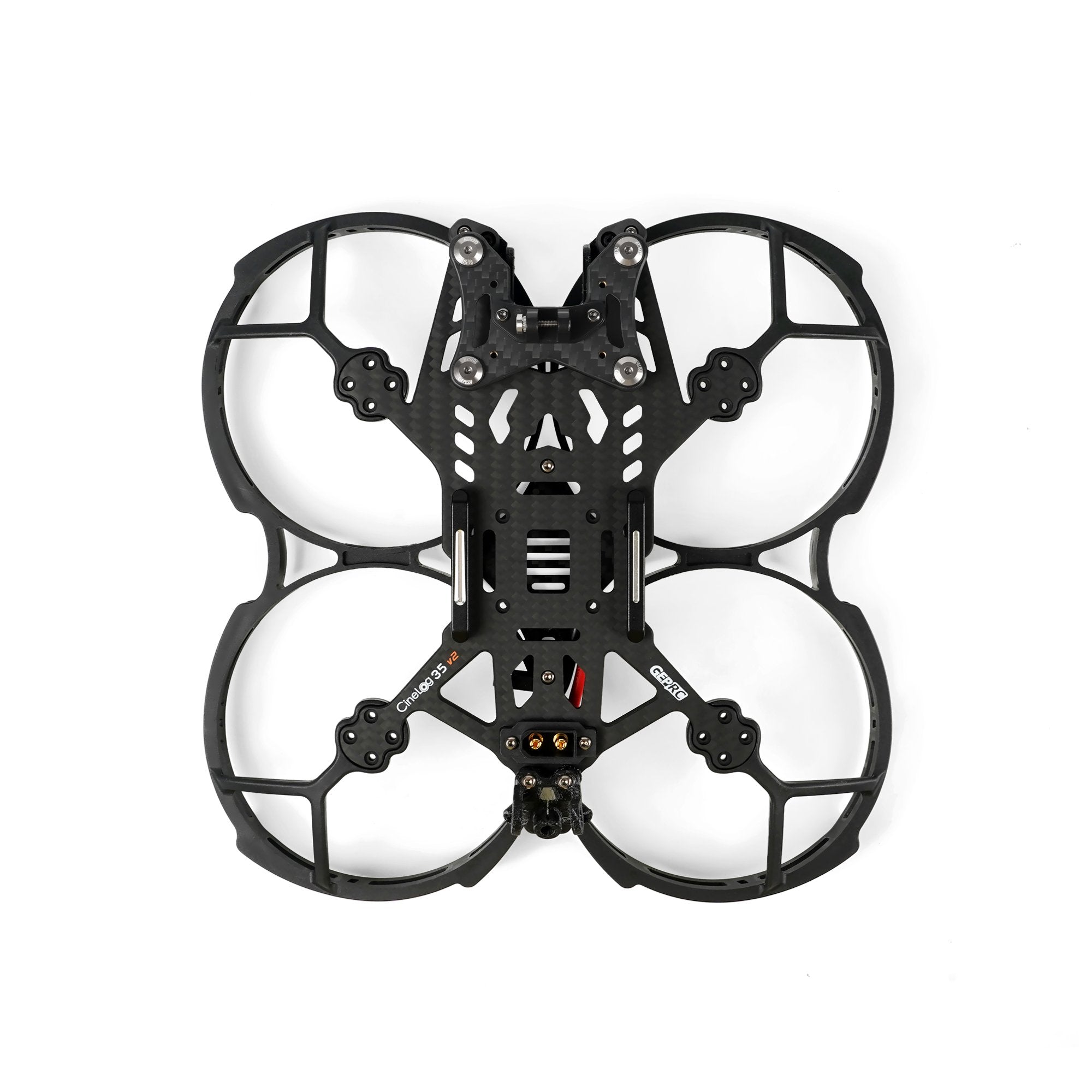

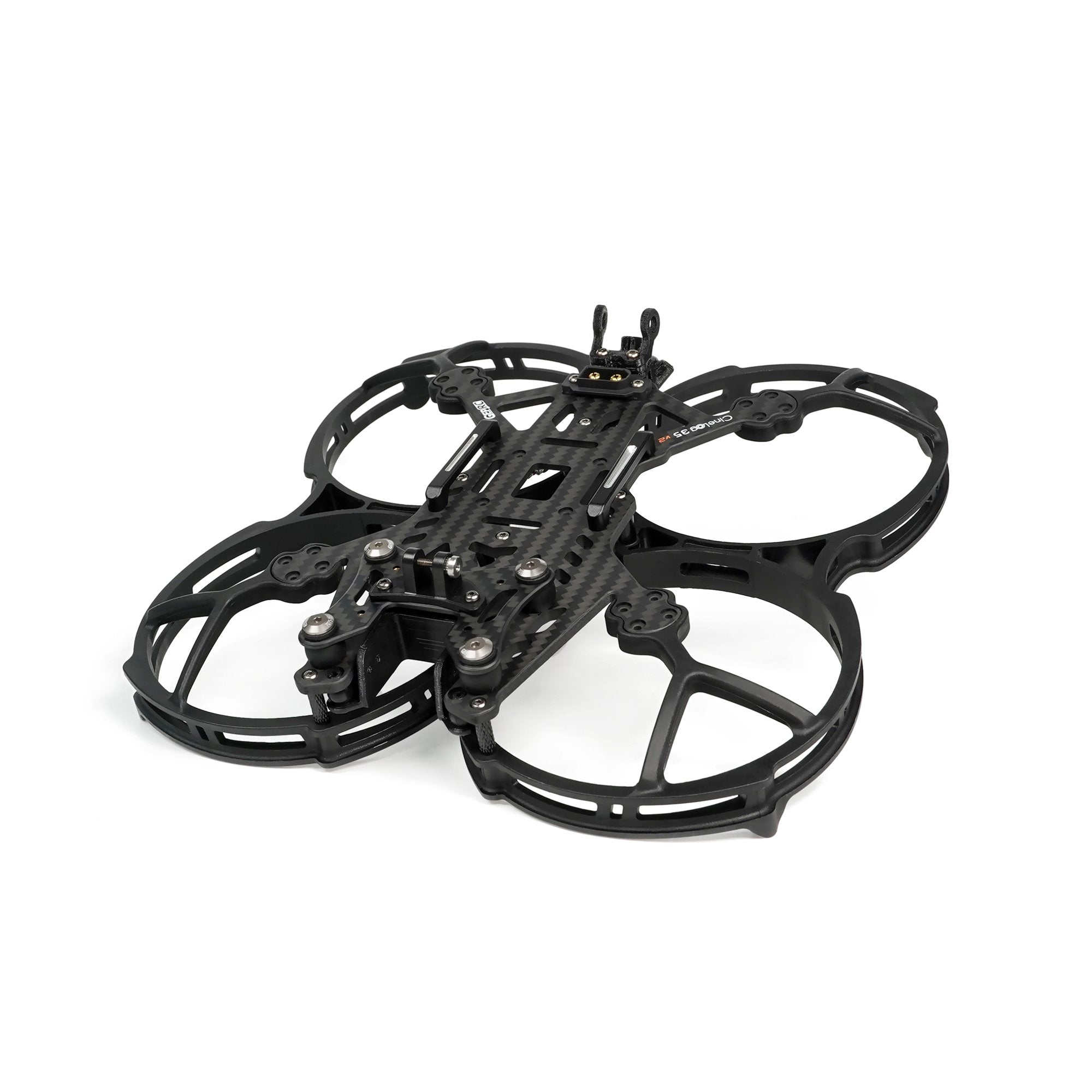

GEP-CL35 V2 Black Frame Kits
GEP-CL35 V2 Black Frame Kits
GEP-CL35 V2 Black Frame Kits
GEP-CL35 V2 Black Frame Kits
GEP-CL35 V2 Black Frame Kits

GEP-CL35 V2 Black Frame Kits

Vendor
FPVTHAI
Regular price
2,450.00 ฿
Sale price
2,450.00 ฿
Unit price
per
Shipping calculated at checkout.

Summary

The GEP-CL35 V2 version was released after careful development by the GEPRC team.

GEP-CL35 V2 is developed and upgraded on the basis of CL35. It can be mounted with O3 VTXThe camera adopts the bottom-mounted shock absorption gimbal to solve the camera IMU’s resonance issue, and achieve a good anti-shaking effect. The main carbon plate and injection prop guards increased the 7075 aluminum column for structural strengthening.

Battery installation method using a strap with 7075 aluminum parts fixed. Power XT60E1-M plug and carbon plate are integrated and integrated for convenient application. The prop guard adds a storage card and USB port to the O3 Air Unit for easy data reading.

GEPRC strives for the ultimate flight experience!

Specification

  • Model: GEP-CL35 V2
  • Motor to Motor: 142mm
  • Top Plate: 2mm
  • Bottom Plate: 1.5mm
  • Arm Plate: 3.5mm
  • FC Mounting Hole: 25.5mm x 25.5mm
  • VTX Mouning Hole : 20mm x 20mm/25mm x 25mm
  • Motor Mounting Hole: 12mm x 12mm
  • Camera Installation Space: 20mm
  • Propeller Guard Internal Diameter: 95mm
  • Suitable Propeller Size: 3.5 inch propeller
  • Weight: 133.7g

Features

  1. Prop guard for O3 Air Unit adds storage card and USB port for easy data reading.
  2. Innovative camera shock-absorbing structure to fix the issue of lens IMU resonance and achieve the optimal anti-shake effect.
  3. Battery installation method using a strap with 7075 aluminum parts fixed, solid and stable.
  4. Power cable using XT60E1-M plug and carbon plate integrated design, user-friendly.
  5. Injection molding prop guard is tough and impact-resistant, and the connection between the frame and the carbon plate is strengthened with aluminum columns.
