FlyFishRC Flash 1404 4500KV Brushless Motor – มอเตอร์บัสเลสประสิทธิภาพสูง น้ำหนักเบา สำหรับโดรน FPV ขนาด 2.5 นิ้ว ถึง 3.5 นิ้ว และโดรน CineWhoop (รองรับ 3S-4S)
รายละเอียดสินค้า: FlyFishRC Flash 1404 4500KV คือมอเตอร์บัสเลสขนาดมินิเจเนอเรชันใหม่ที่ออกแบบมาเพื่อโดรน FPV ไซส์เล็กอย่าง Toothpick, Micro Freestyle และ CineWhoop ขนาด 2.5 นิ้ว, 3 นิ้ว ถึง 3.5 นิ้ว โดยเฉพาะ โดดเด่นด้วยการออกแบบโครงสร้างสเตเตอร์ที่สมดุล มอบอัตราเร่งที่ตอบสนองไว คันเร่งนุ่มนวล เรียบลื่น และให้พละกำลังแรงบิดที่ต่อเนื่องในทุกช่วงคันเร่ง
ตัวมอเตอร์ใช้วัสดุและกระบวนการผลิตระดับพรีเมียม ทั้งแกนเพลาเหล็กกล้าความแข็งแรงสูง แม่เหล็กทรงโค้ง (N52H Arc Magnets) และตลับลูกปืนเกรดคุณภาพ ช่วยลดแรงสั่นสะเทือน (Resonance) ได้อย่างมีประสิทธิภาพ ส่งผลให้กล้องบันทึกภาพ FPV/HD ได้ภาพที่เนียนกริบ ไร้อาการภาพวุ้น (Jello) ด้วยค่า 4500KV มอเตอร์รุ่นนี้จึงรองรับการใช้งานร่วมกับแบตเตอรี่ขนาด 3S ถึง 4S LiPo ได้อย่างเต็มประสิทธิภาพ
คุณสมบัติเด่น:
-
ออกแบบเฉพาะโดรน Micro & CineWhoop: ให้แรงยกและความนิ่งที่พอดีสำหรับลำขนาด 2.5" - 3.5" ทั้งสายซิ่งบินเร็วและสายถ่ายภาพ
-
การตอบสนองคันเร่งเรียบลื่น: การบาลานซ์โรเตอร์จากโรงงานอย่างพิถีพิถัน ช่วยลดแรงสั่นสะเทือน ทำให้วิดีโอใสและบินได้ลื่นไหล
-
แม่เหล็ก N52H Arc Magnets: ให้แรงบิดที่สูงและคงที่ ทนต่อความร้อนสะสมได้ดีเมื่อใช้งานหนัก
-
แข็งแรงทนทาน น้ำหนักเบา: โครงสร้างอลูมิเนียม CNC น้ำหนักเบาเพียงประมาณ 9 กรัม ไม่เพิ่มภาระให้น้ำหนักรวมของโดรน
-
รูยึดมาตรฐาน 9x9 มม.: รองรับการติดตั้งเข้ากับเฟรมโดรนขนาดเล็กส่วนใหญ่ในท้องตลาดได้อย่างง่ายดาย
ข้อมูลทางเทคนิค (Specifications):
-
แบรนด์: FlyFishRC
-
ซีรีส์: Flash
-
ขนาดมอเตอร์: 1404
-
ค่า KV: 4500KV
-
โครงสร้าง (Configuration): 9N12P
-
แรงดันไฟขาเข้า (Cell Count): 3S - 4S LiPo
-
เส้นผ่านศูนย์กลางแกนเพลา (Shaft Diameter): 1.5 มม. (สำหรับใบพัดรู T-Mount)
-
รูยึดฐานมอเตอร์ (Motor Mount Pattern): 9 × 9 มม. (น็อตขนาด M2)
-
สายไฟมอเตอร์: สายซิลิโคนทนความร้อน 24AWG ยาวประมาณ 100 มม.
-
ขนาดตัวมอเตอร์: ~18.6 มม. × 13.2 มม.
-
น้ำหนัก: ประมาณ 9.3 กรัม (รวมสายไฟ)

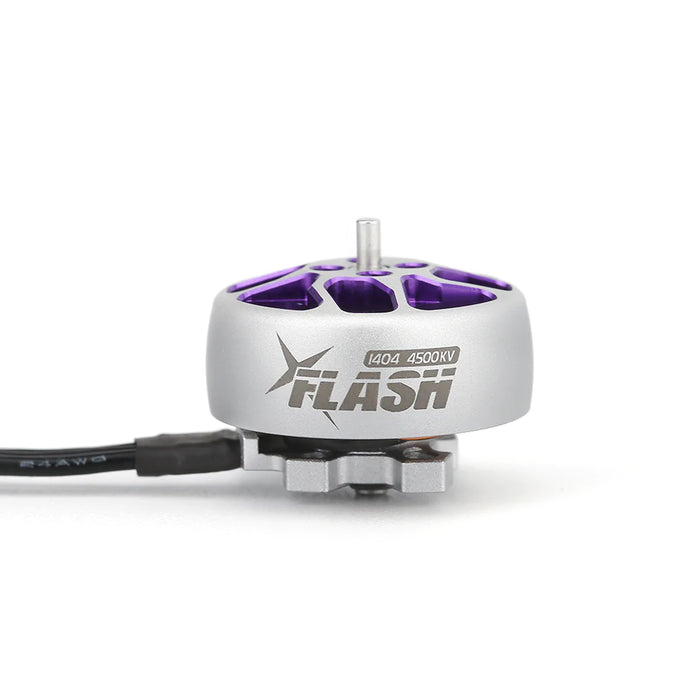

FlyFishRC Flash 1404 4500KV Brushless Motor – High-Efficiency Micro FPV Motor for 2.5-3.5 Inch Drones & CineWhoops (3S-4S Compatible)
Product Description: The FlyFishRC Flash 1404 4500KV is a premium micro brushless motor purpose-built for 2.5-inch, 3-inch, and 3.5-inch FPV drones, including toothpick rigs, micro freestyle quads, and ducted CineWhoops. Engineered with high precision and dynamic balancing, the Flash 1404 delivers a silky-smooth throttle feel, crisp control authority, and an optimal power-to-weight ratio for small-footprint builds.
Constructed using high-grade components—including N52H curved arc magnets, heat-resistant copper windings, and high-precision bearings—this motor minimizes mechanical vibrations and flight resonance to keep your video feeds clear and jello-free. Rated at 4500KV, it extracts maximum efficiency and punch when paired with 3S to 4S LiPo battery configurations.
Key Features:
-
Tailored for Micro & CineWhoops: Perfectly tuned for 2.5" to 3.5" prop sizes, delivering smooth handling for cinematic shots and punchy response for freestyle tricks.
-
Ultra-Smooth & Low Vibration: Factory dynamically balanced rotors drastically reduce motor noise and frame resonance for clean video output.
-
Premium N52H Arc Magnets: High-magnetic strength ensures high torque output and superior thermal resistance during high-power bursts.
-
Lightweight & Durable Design: Precision CNC aluminum bell provides impact resistance while maintaining a featherlight profile (~9.3g).
-
Standard 9x9mm Mounting: Features the universal 9x9mm M2 mounting footprint for seamless integration with popular micro frames.
Specifications:
-
Brand: FlyFishRC
-
Series: Flash
-
Motor Stator Size: 1404
-
KV Rating: 4500KV
-
Configuration: 9N12P
-
Input Voltage: 3S - 4S LiPo / LiHV
-
Shaft Diameter: 1.5 mm (T-Mount prop compatibility)
-
Motor Mounting Pattern: 9 × 9 mm (M2 screws)
-
Lead Wires: 24AWG silicone wire, ~100mm length
-
Motor Dimensions: ~18.6mm × 13.2mm
-
Weight: ~9.3g (including wires)
