Want to try Silverware firmware on your 1S brushless drone, please check the Lite 1S flight controller board.

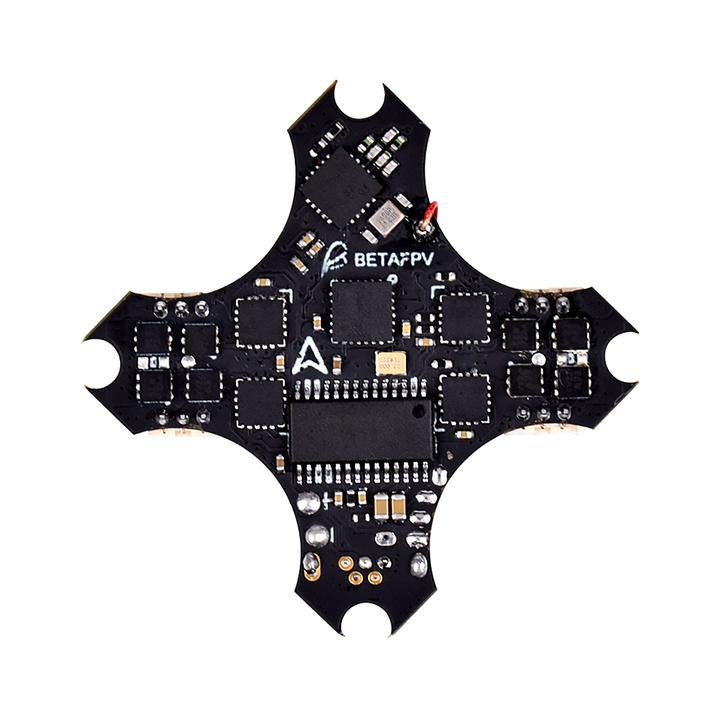

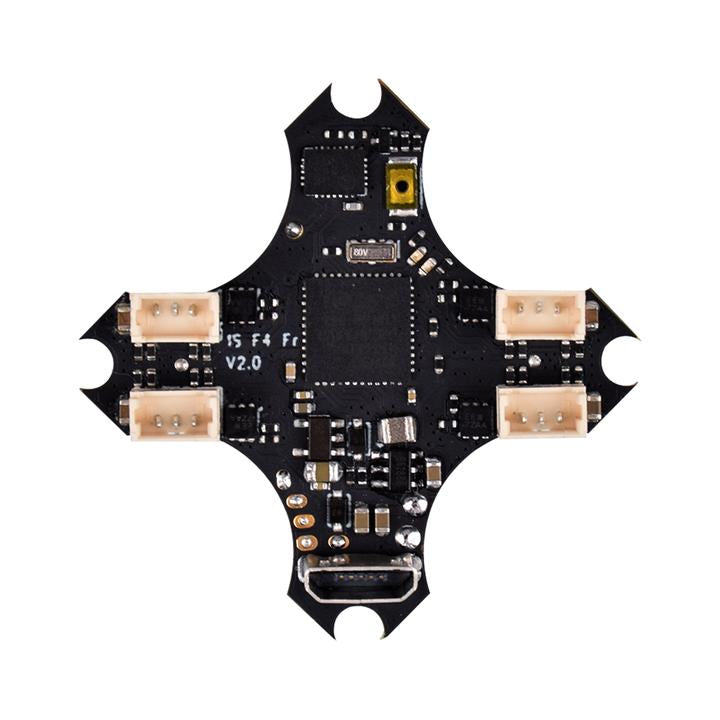

SPECIFICATIONS OF FC
- CPU: STM32F411CEU6 ( 100MHZ )
- Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
- Size: 29mm x 29mm, fully compatible with the whoop frame in the current market, Beta65 Pro frame, Beta75 Pro frame, BWhoop B06 frame, and mounting pattern
- Firmware version: Frsky / Futaba: Betaflight MATEKF411RX (MK41R) , DSMX: Betaflight MATEKF411
- Compatible with Z02, A01, M01 VTX
- OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
- Power Cable: 55mm, with BT2.0 connector

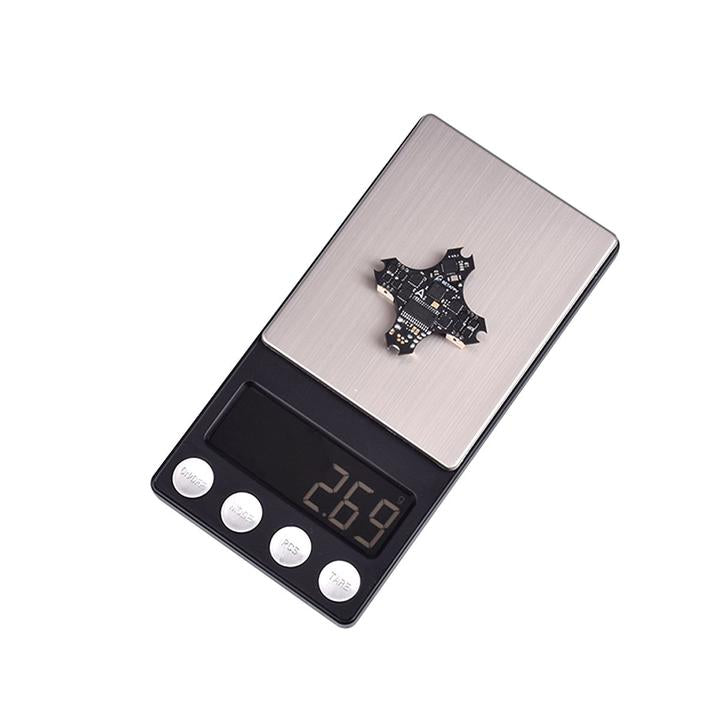

- Weight: 2.69g
SPECIFICATIONS OF ESC
- Power supply: 1S
- Current: 5A continuous and peak 6A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: O_L_5_REV16_6.HEX
- Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
RECOMMENDED PARTS LIST
- Battery: BT2.0 300mAh 1S Battery
- Frame: Beta65 Pro frame / Beta75 Pro frame
- Props: 31mm 4-Blades props (for Beta65 Pro frame) / 40mm 4-blades props (for Beta75 Pro frame)
- Motors: 0603 motors / 0703 motors / 0802 motors
DIAGRAM FOR F4 1S FC V2.1 (Frsky / Futaba RX)
DIAGRAM FOR F4 1S FC V2.0 (No RX)
DIAGRAM FOR F4 1S FC V2.0 (DSMX RX)
