DJI FPV Digital Air Unit 5.8Ghz 1080P / 60fps 28ms / 4km HD Recording FPV Camera Transmitter
DJI FPV Digital Air Unit 5.8Ghz 1080P / 60fps 28ms / 4km HD Recording FPV Camera Transmitter

DJI FPV Digital Air Unit 5.8Ghz 1080P / 60fps 28ms / 4km HD Recording FPV Camera Transmitter

Vendor
DJI
Regular price
6,000.00 ฿
Sale price
6,000.00 ฿
Unit price
per
Shipping calculated at checkout.

DJI FPV Aerial Unit 1080P / 60fps HD Record 5.8GHz 8CH FPV Transmitter Digital Camera Combo 28MS / 4km for FPV Racing Drone RC Plane

Overview
The FPV Air Unit provides high-definition video transmissions like ultra-low-latency, 1080p / 60fps video recording and eight frequency channels allow eight pilots to fly at the same time.

Trick
The air unit may become hot during or after use.
Do not touch the machine before it cools down.
Do not use the air conditioner for a long time when there is no external cooling equipment. Otherwise, the air unit may overheat and enter into the overheating protection mode.
Maintain the antenna of at least 40mm.
Keep the air unit away from metal objects or carbon fiber frames. Be sure to select a location where signals will not be blocked during the flight.

property
8 channels, 8 drones
The DJI HDL FPV power transmission system and the DJI FPV air unit are equipped with eight frequency channels which allow eight drones to fly at the same time. Each service provider has special channels. This helps reduce distractions and provides the best racing experience.
1080p aerial image
The 7,499,454 FPV air unit records video at 1080p / 60fps during flight, providing the pilot with smooth and clear aerial images.
Embedded remote controller
Users can connect a DJI FPV Air Unit wirelessly to a DJI FPV remote controller without having to purchase additional receivers. This will dramatically reduce flight preparation time.
Multi-antenna technology
The DJI FPV aerial unit has two antennas, both of which are transmitters and transmitters to ensure a wider signal coverage for reliable image transmission.

Details
Weight: Air unit (including camera): 45.8 grams / 3.9 grams (each elbow MMCX)
size
Air unit: 44 x 37.8 x 14.4 mm
Camera: 27.4 x 21.1 x 20.1 mm
Coaxial cable: 100 mm

SPECIFICATION
Operating frequency: 5.725-5.850 GHz
Transmission power (EIRP): FCC / SRRC: <30 dBm; CE: <14 dBm
Low delay mode (720p / 120fps): <28 ms
High quality mode (720p / 60fps): <40 ms
Transmission distance: FCC / SRRC: <4 km. CE: <0.7 km
Video format: MP4 (Video format: H.264; Audio format: ACC-LC)
I / O interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating temperature range: 32 ° to 104 ° F (0 ° to 40 ° C)
Input power: 7.4-17.6 V, about 4-9 W
Sensor: CMOS 1 / 3.2 ''; Effective pixels: 4 M
Lens: 2.1 mm, f / 2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150 ° (D); 122 ° (H); 93 ° (V)
Size: 22.1 x 21.1 x 20.1 mm
Weight: 8.2 grams

channel
Channel information: 8CH
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

CE / SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839

LITTLE
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745

Compatibility
DJI FPV Goggles
DJI FPV Remote Controller

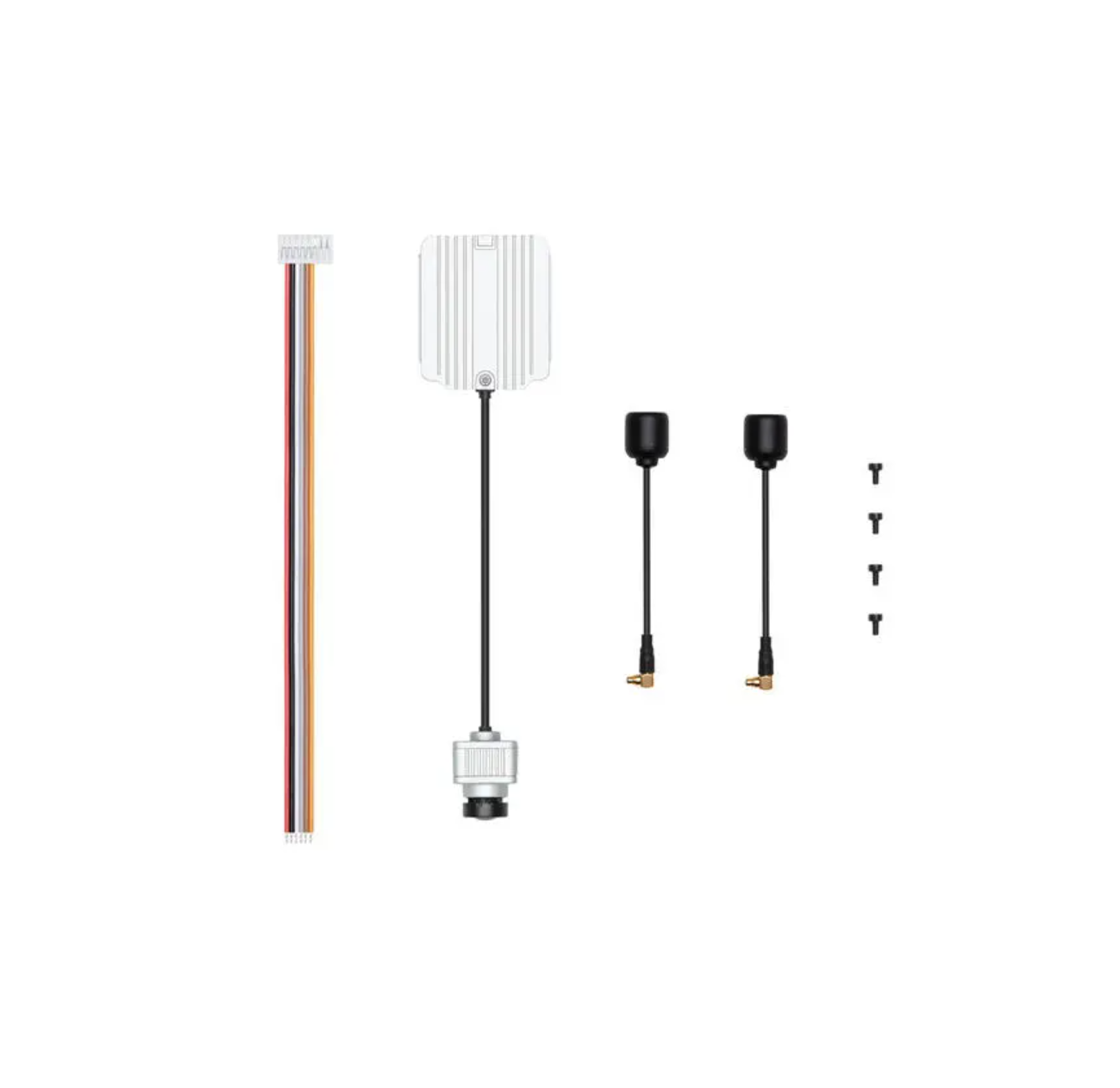

Included in the list
1 x DJI FPV Air Unit (with camera and four M2 screws)
1 x Three-in-one cable
2 x Antenna (MMCX elbow)
