Cidora SL5-E 4S 6S FPV Drone - PNP
Cidora SL5-E 4S 6S FPV Drone - PNP
Cidora SL5-E 4S 6S FPV Drone - PNP
Cidora SL5-E 4S 6S FPV Drone - PNP
Cidora SL5-E 4S 6S FPV Drone - PNP

Cidora SL5-E 4S 6S FPV Drone - PNP

Vendor
iFlight
Regular price
6,750.00 ฿
Sale price
6,750.00 ฿
Unit price
per

PRODUCT DESCRIPTION

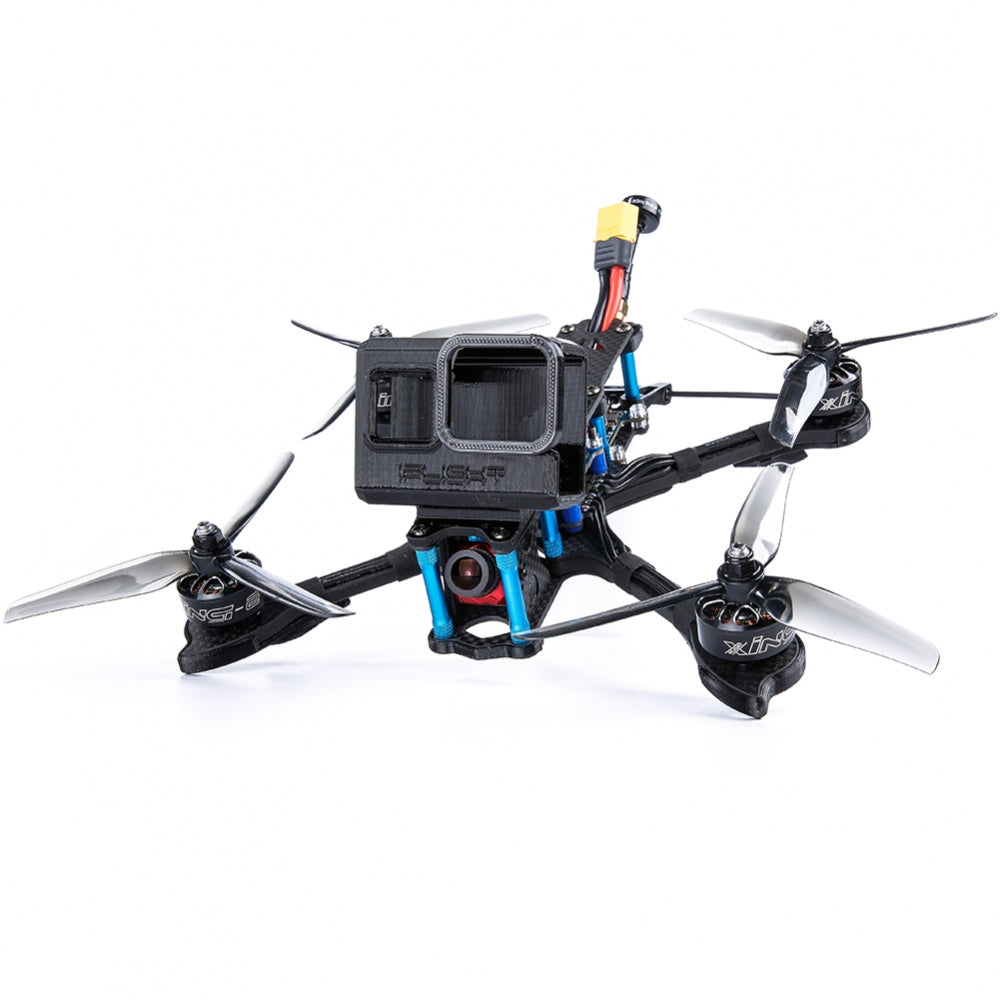

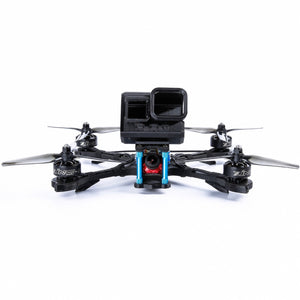

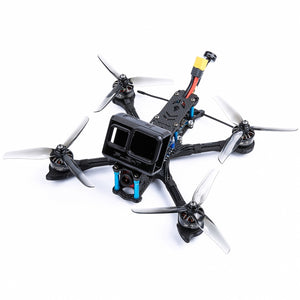

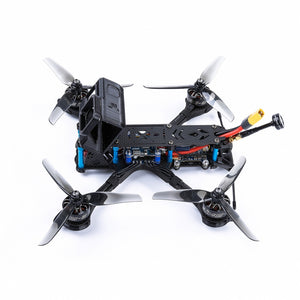

Cidora SL5-E 4S 6S FPV Drone - BNF with our best iFlight components installed and pre-tuned! SL5 is a 5" size BNF (Bind-and-Fly) quadcopter that comes fully built with everything you need to liftoff!

Different power version (4S, 6S cell count) to fit most pilots requirements. Choose your receiver option to get your FrySky or Crossfire installed and ready to be bound to your radio.

Features:

- Full 3K Carbon Fiber airframe

- Easy arm swaps -215mm wheelbase,115g

- Popular Squish X configuration

- SucceX-E F4 with 45A 4in1 ESC stack

Specifications:

- Total Dimensions: 165*138mm (body dimension)

- Frame Wheelbase: 215mm

- SucceX-E F4 Flight controller

- SucceX-E 45A 2-6s 4-in-1 ESC Dshot1200

- XING-E 2207 2450KV (4S)/XING-E 2207 1800KV (6S)

- Caddx.us Ratel 2.1mm FPV cam

- Nazgul 5140 propellers grey

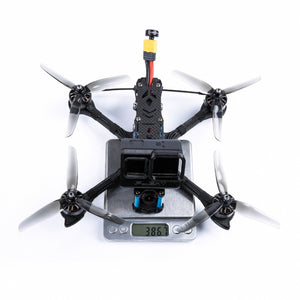

- Weight: 384.2 (without GoPro TPU mount)

SucceX-E F4 Flight controller Specification:

- MCU:STM32F405

- IMU:MPU6000

- Betaflight OSD:YES

- Blackbox:8MB

- 4X Uarts(1 2 3 6 )

- 8 x Dshot/Proshot/Oneshot output

- 8 x individual ESC power/ signal pads

- 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX

- VTX protocol:YES(IRC Tramp)

- WS2812 led Strip:YES

- Baro:No

- Beeper:YES

- Input:2-6S(Max 8S)

- BEC:5V/2.5A cont

- Firmware :betaflight_4.0.5_BETAFLIGHTF4.hex

Physical

- Mounting:30.5*30.5mm,φ4mm with Grommets φ3mm

- Dimensions:36*36mm

- Weight:7.6g

SucceX-E 45A 4in1 ESC Specification:

- Dimension: 40*43mm

- Mounting Holes: 30.5*30.5mm/Φ3mm

- Weight:14.4g

- Supports 2-6S Lipo input

- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware

- Current sensor: YES

- BEC: NO

- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

- Target: G-H-30 BLS 16.7

-BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file

5.8G 0/25/100/200/400/600mW VTX

- Input voltage: 5V

- Channel: 48

- Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW

Caddx.us Ratel 2.1mm lens FPV cam

Recommend Parts (Not included):

-TPU 3D Printed Camera Mount for Gopro Hero 5/6/7 with ND8 Filter

-TPU 3D Printed Camera Mount for GoPro Session

Package Included:

-1x Cidora SL5-E 4S 6S FPV Drone - BNF-XM+ receiver

-2 sets Nazgul 5140 propellers

NOTE: The Hero 7 camera and TPU print camera mount are not included.
