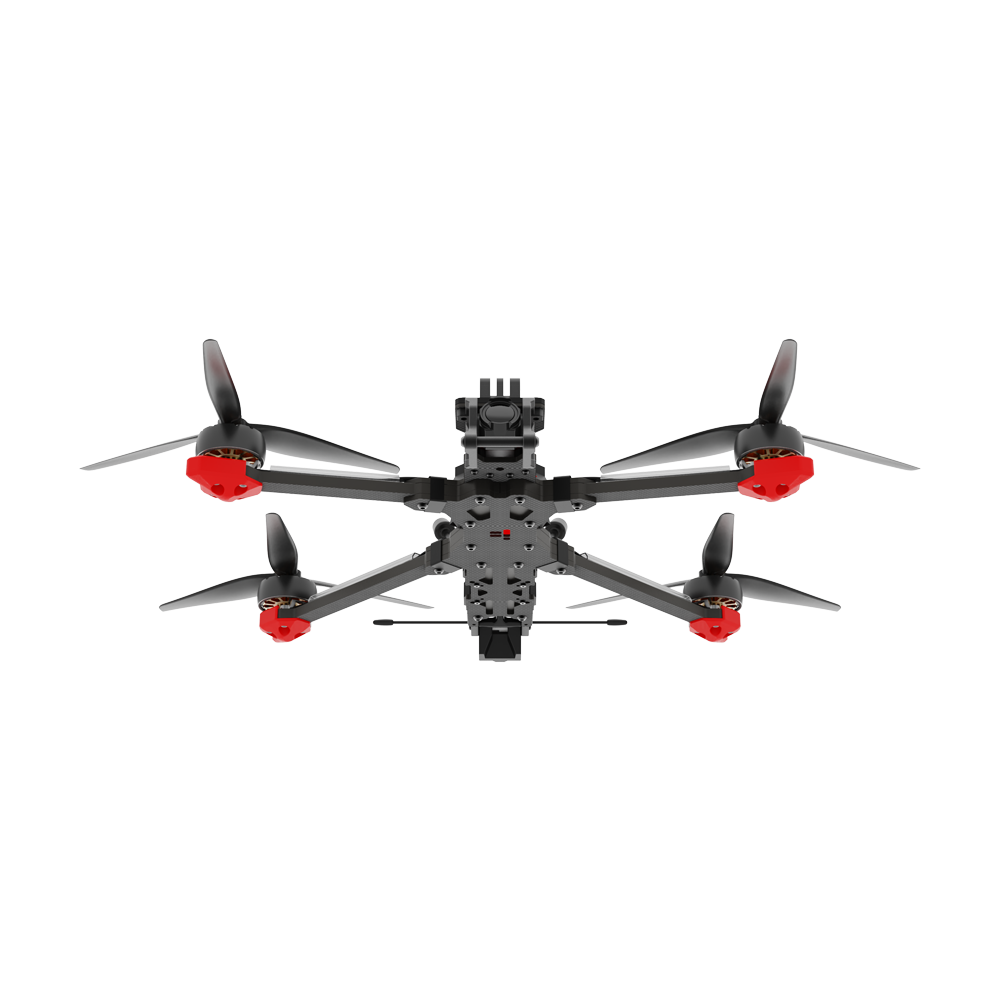

Chimera7 Pro V2 6S HD pre-order PNP O3

Vendor
FPVTHAI
Regular price
Sold out
Sale price
26,660.00 ฿
Unit price
per
Shipping calculated at checkout.

Description



The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or our new 6S 3300mAh battery.





Highlights



Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Chimera7 Pro Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

DJI O3 HD Air Unit Low-Latency Digital Transmission

Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specially Designed Heatsink for DJI O3 HD Air Unit

Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.





Changelog



December 13, 2022: New silicone inserts have been designed to replace the TPU ones,which are holding the 03 cam in the side panels.

June 27, 2023: The antenna installation method is changed from horizontal to vertical. Customers need to screw on the screws of the T-Type Antenna Mount.





Specifications



Product Name: Chimera7 Pro V2 6S HD

FC: BLITZ F722 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O3 Air Unit / RUNCAM LINK Wasp (Optional)

Frame: 327mm wheelbase

Motor: XING2 2809 motors

Prop: 7.5X3.7X3 propellers

Weight: 695±5g

Model: Chimera7 Pro

Takeoff Weight incl. 8000mAH: Approx. 1619±10g

Takeoff Weight incl. 3300mAH: Approx. 1165±10g

Dimensions (L×W×H):270x199x34mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 30 mins

Max Flight Distance: 18 km

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

Antennas: Dual Antennas

GNSS: GPS + Galileo



รายละเอียดสินค้า


ชื่อสินค้า: Chimera7 Pro V2 6S HD

เอฟซี: เครื่องควบคุมการบิน BLITZ F722

ESC: บลิทซ์ E55 4-IN-1 2-6S 55A ESC

การส่งสัญญาณวิดีโอ: DJI O3 Air Unit / RUNCAM LINK Wasp (อุปกรณ์เสริม)

เฟรม : ระยะฐานล้อ 327 มม

มอเตอร์: มอเตอร์ XING2 2809

เสา: ใบพัด 7.5X3.7X3

น้ำหนัก: 695±5ก

รุ่น : Chimera7 Pro

รวมน้ำหนักการบินขึ้น 8000mAh: ประมาณ. 1619±10ก

รวมน้ำหนักการบินขึ้น 3300mAh: ประมาณ. 1165±10ก

ขนาด (ยาว×กว้าง×สูง):270x199x34มม

ความเร็วสูงสุด: 140 กม./ชม

ระดับความสูงบินขึ้นสูงสุด: 7000 ม

เวลาเลื่อนสูงสุด: ประมาณ. 30 นาที

ระยะบินสูงสุด: 18 กม

ช่วงอุณหภูมิในการทำงาน: -10° ถึง 40° C (14° ถึง 104° F)

กำลังส่ง (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

เสาอากาศ: เสาอากาศคู่

GNSS: จีพีเอส + กาลิเลโอ



Video Transmission



Product Name: DJI O3 Air Unit

Weight: Approx. 36.4 grams(headband included)

Communication Bandwidth: Max 40 MHz

FOV (single screen): 155°

Communication Frequency:2.400-2.4835 GHz (RX only)  /  5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range:10 km (FCC), 2 km (CE), 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A



Product Name: RUNCAM LINK Wasp

FPV Cam :RunCam Wasp

Dimensions: L19mm*W19mm*H23mm

Communication Frequency: 5.725-5.85GHz

Transmission Power (EIRP):  FCC/SRRC/MIC: <20dBm;  CE: <14dBm

Input Volts:7.4-26.4V

Weight: 11.5 g

Image Sensor: 1/3”

Resolution: 720P@120fps

LENS: FOV D:155° H:125° V:89°

Coaxial Cable:  130 mm

Audio Transmission:No





Packing List



1 x Chimera7 Pro V2 6S HD

2 x Battery pad

2 x 7.5 inch Prop(Pairs)

2 x Battery strap

1 x Screw bag





Important



All iFlight BNFs are tested before shipment to guarantee highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
