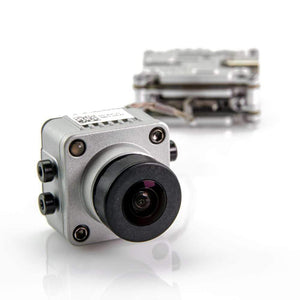

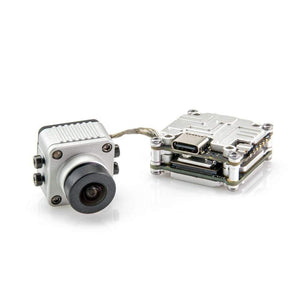

Caddx Vista HD Digital System 5.8GHz FPV Transmitter VTX FOV 150 Degree Camera 1080P Recording AIO Compatible DJI FPV Goggles Remote Controller
Caddx Vista HD Digital System 5.8GHz FPV Transmitter VTX FOV 150 Degree Camera 1080P Recording AIO Compatible DJI FPV Goggles Remote Controller
Caddx Vista HD Digital System 5.8GHz FPV Transmitter VTX FOV 150 Degree Camera 1080P Recording AIO Compatible DJI FPV Goggles Remote Controller
Caddx Vista HD Digital System 5.8GHz FPV Transmitter VTX FOV 150 Degree Camera 1080P Recording AIO Compatible DJI FPV Goggles Remote Controller

Caddx Vista HD Digital System 5.8GHz FPV Transmitter VTX FOV 150 Degree Camera 1080P Recording AIO Compatible DJI FPV Goggles Remote Controller

Vendor
Caddx
Regular price
5,500.00 ฿
Sale price
4,850.00 ฿
Unit price
per
Shipping calculated at checkout.

Description:

The Vista HD system was designed for smaller drones and loud staff alike. It can work with DJI FPV Camera, DJI FPV Goggles and DJI FPV Remote Controller, compatible with two sizes of 20 * 20mm / 25.5 * 25.5mm, compatible with toothpick drones.

Specifications:
Brand Name: Caddx
Item Name: Vista Series

Working frequency: 5.725-5.850GHz
Transmit Power (EIRP): FCC / SRRC / MIC: <30dBm, CE: <14dBm
Min. Latency (end to end): Low Latency mode (720p 120fps): 21-28ms, High quality mode (720p 60fps): 30-40ms.
Max.Transmission Distance: FCC / SRRC: 4km, CE: 0.7km
I / O interface: USB-C, IPEX, 3-in-1 port, microSD card slot.
Support flight control system: F3, F4, F7,
operating temperature range: 32 ° to 104 ° F (0 ° C ~ 40 ° C).
Input power: 7.4-26.4V

Specifications of DJI Camera:
Sensor: CMOS 1 / 3.2 ''
Effective pixels: 4M
Lens: 2.1mm, f / 2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150 ° (D); 122 ° (H); 93 ° (V)

weight:
Vista kit (including camera): 29g
Antenna: 3.5g

size:
Vista series: 30x29x13mm
Camera: 27.4x21.1x20.1mm
Coaxial cable: 80mm
Buy a replacement 8 cm / 12 cm coaxial cable (not included), click here.

property:
- Stable and clear HD video.
- Single antenna, max range up to 4km
- Allows up to 8 drones to fly simultaneously.
- Embedded remote control receiver
- 28ms ultra low latency, high definition digital image transmission. Package

included:
1x Caddx Vista Digital HD System

Vista & Air Unit Firmware upgrated!👇

1. Added ability to view HDMI live broadcast by connecting the goggles to the DJI Smart Controller (v01.00.07.00 or above). By connecting the goggles to the DJI Smart Controller using USB-C cable, users can see the camera view of the air unit on the screen of the Smart Controller, and then can transmit the live view from the Smart Controller to other display devices through an HDMI cable.
2. Added new custom on-screen display information: home point direction, home point distance, altitude, and GPS speed.
3. Added on-screen flashing prompt on the goggles when the signal of the air unit or the remote controller is weak.
3. Added menu setting to choose to enable recording after unlocking the flight controller. · Added menu setting to choose to enable the low battery warning alarm of the goggles.
4. Added support for Caddx Nebula camera model. · Optimized display and operation in the AV IN interface.
5. Added menu setting to adjust screen size and position and added on-screen display for the battery level of the goggles.
6. Fixed issue: screen blurred or froze when unlocking Air Unit (Lite).
7. Fixed issue: operation was delayed when using the remote controller on a simulator.
8. Fixed rare issue: the PID tuning did not take effect after changing the setting.

Caddx has worked with DJI to release a new generation of digital HD FPV transmitters. The Vista was fully authorized by DJI and compatible with their HD FPV System. Even better, the Caddx Vista was engineered to be lighter and smaller than the DJI Air Unit Module and also comes with mounting holes for easier installation onto your quad!

Upgrade your Vista HD system with a smaller and lighter antenna!
