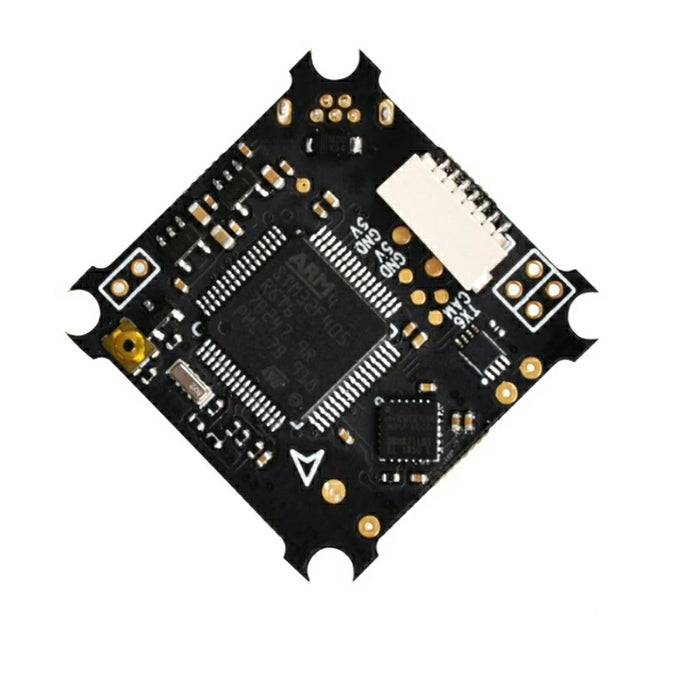

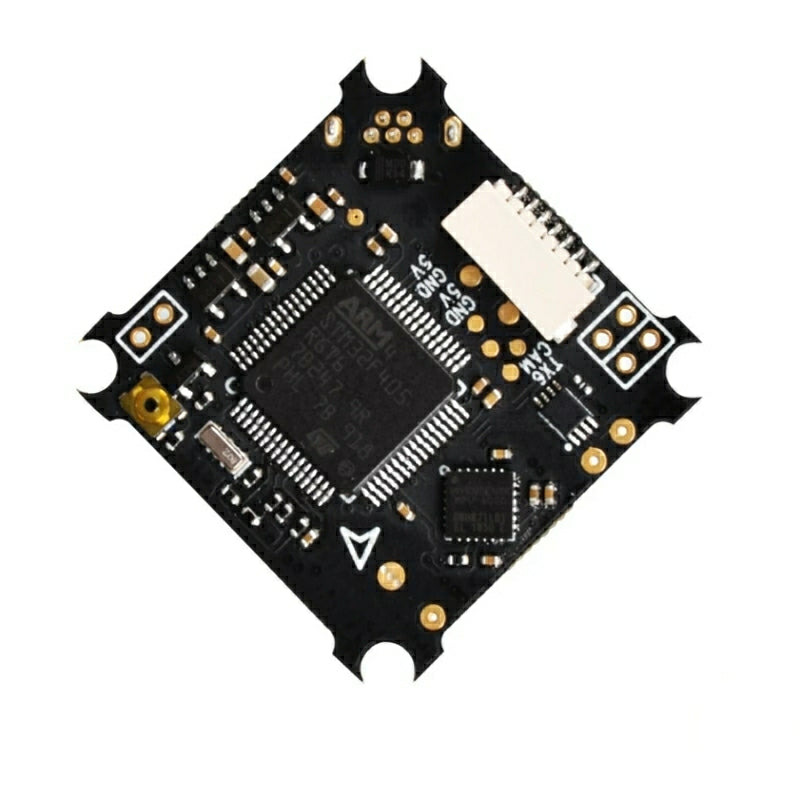

Betafpv บอร์ด F4 Brushless Flight Controller
Betafpv บอร์ด F4 Brushless Flight Controller

Betafpv บอร์ด F4 Brushless Flight Controller

Vendor
BETAFPV
Regular price
990.00 ฿
Sale price
990.00 ฿
Unit price
per

SPECIFICATIONS OF FC

CPU: STM32F405 (Overclock to 240MHz)

Six-Axis: MPU6000

Size: 26mm x 26mm, whoop mounting pattern

Firmware version: Betaflight OMNIBUSF4SD (OBSD)

OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

RX3 and TX3 are with auto inverter, supporting all RX including TBS Micro RX

TX01 and RX01 ports are available for Frsky F-Port, DSM2/DSMX

Buzzer solder pads

Support programable LED like WS2812 etc

Weight: 4.2g

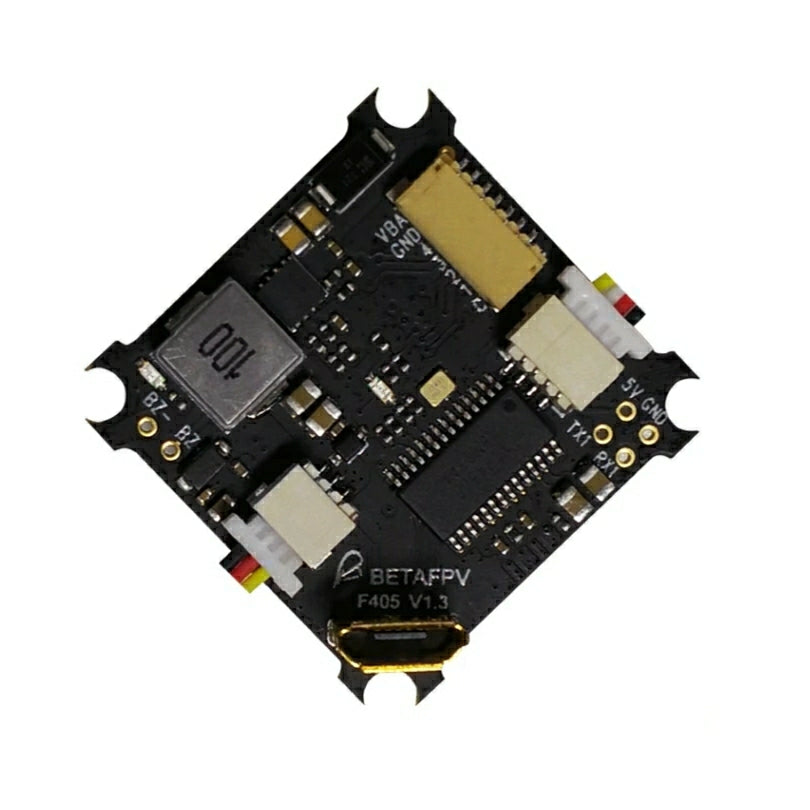

DIAGRAM FOR F405 4S FC
