Beta95X Whoop Quadcopter (HD Digital VTX) With DJI FPV Goggle Frsky FCCs
Beta95X Whoop Quadcopter (HD Digital VTX) With DJI FPV Goggle Frsky FCCs
Beta95X Whoop Quadcopter (HD Digital VTX) With DJI FPV Goggle Frsky FCCs
Beta95X Whoop Quadcopter (HD Digital VTX) With DJI FPV Goggle Frsky FCCs
Beta95X Whoop Quadcopter (HD Digital VTX) With DJI FPV Goggle Frsky FCCs

Beta95X Whoop Quadcopter (HD Digital VTX) With DJI FPV Goggle Frsky FCCs

Vendor
BETAFPV
Regular price
25,600.00 ฿
Sale price
25,600.00 ฿
Unit price
per
Shipping calculated at checkout.

SPECIFICATION

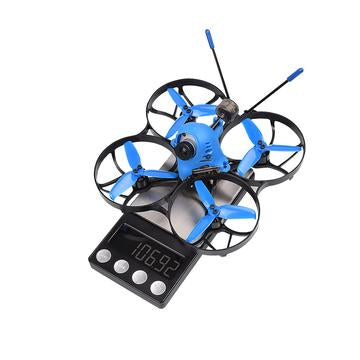

  • Weight: 110g (without battery)
  • Wheelbase: 100mm
  • F405 Flight Controller & 16A BLHeli_32 ESC V2.0
  • Frame: Beta95X Frame
  • Motors: 1106 4500KV with connector
  • Props: Gemfan 2540 3-Blades Props
  • Receiver Option: Frsky XM+ / DSMX / Futaba S-FHSS / Flysky / TBS Crossfire
  • Battery: 4S 450mAh Battery (Not including)
  • HD digital camera & VTX: Caddx Vista
  • Flight time: 4min - 5min with 450mAh 4S battery (smooth flight in a windless environment)

95X Whoop Platform

In September 2018, BETAFPV released the 75X whoop platform and create a new era of brushless whoop drones. In order to carry the 20g Caddx Tarsier 4K camera, we re-designed the 85X platform in Jan 2019. Now it is the time for the 95X whoop platform, for HD digital video transmitter.

What's is key point for the different of these whoop platforms, 75X/85X/95X? Is it the motors? the FC and ESC? the quantities of battery cells? Maybe yes for all. But the most important component is the length of the propellers. Even 85X and 95X platform have the same components, like same motors, same battery same weight etc, the 95X with 2.5" props will have a noticeable improvement in flying.

Time Whoop Platform Props Bear Load
Sep 2018 Beta75X 1.7 inch Caddx Turtle (15g)
Jan 2019 Beta85X 2.0 inch Caddx Tarsier (20g)
Jan 2020 Beta95X 2.5 inch Caddx Vista (30g)

Know more about the story about the 95X whoop platform here.

In the 95X platform, you could use the same motors in 85X drones, like 1105 or 1204 etc. But we would high recommend the 1106 motors to get an aggressive flying experience.

DJI FPV Goggles

The DJI FPV Goggles utilize the DJI HDL FPV Transmission to provide pilots with remarkable HD resolution for both viewing screens. Pilots can now enjoy both superb image quality and a minimum latency within 28 ms. Know more about DJI Digital FPV system.

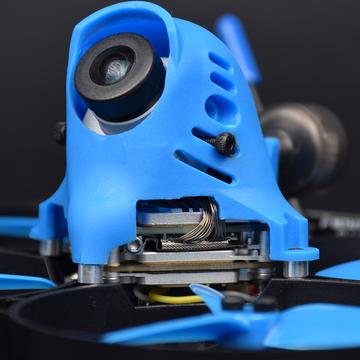

Caddx Vista

The Caddx Vista HD digital video transmitter can work with DJI FPV camera, goggles and remote controller. The totally weight (with camera and antenna) is 35g only, about 20g lighter than the DJI FPV unit. Besides, it is smaller and designed to suit for whoop drones.

The new BETAFPV mini canopy V3 could suit for the Caddx Vista very well. In order to protect the camera lens from crashes, a 3D printer TPU lens protector is included.
