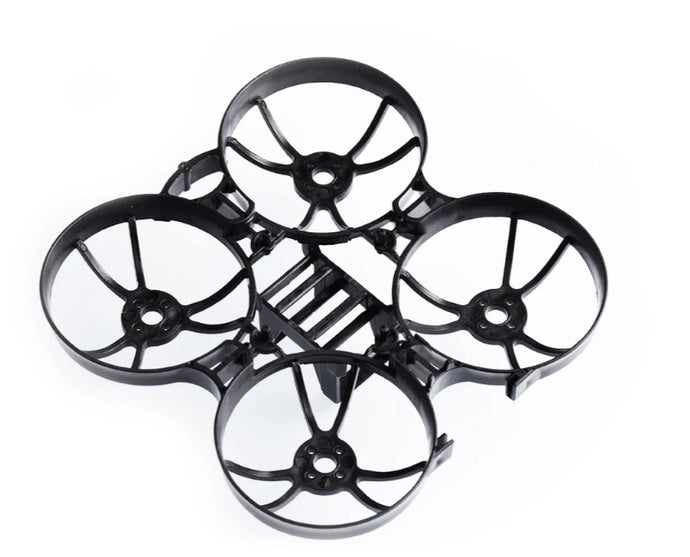

This Beta75X frame is customed for 75mm brushless whoop drone. This frame natively supports 110x motors. Also, it has a customed battery slot to support 2S battery and you could use it directly to fit S-Version 3S 300mah battery. The FC mounting columns still match the whoop style FC boards. At the same time, we would like to keep it durable and light enough for a whoop beast. Come with plastic durable package, which can protect the package from deformation during the shipping process.
Black Beta75X Frame Updated: We have already updated Black Frame to V1.2 Version, adding installation position of 4K camera for self-assembly.
NOTE: Updated part only available for the black frame, not for white one.
Specification
- Material: Clear plastic
- Color: Black / White
- Diagonal motor to motor distance: 75mm
- Motor mounting hole: only for BETAFPV 1103 motors
- FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm
- Battery slot size: 11.5x16mm, for BETAFPV 300mAh battery
- Weight: 7.3g
