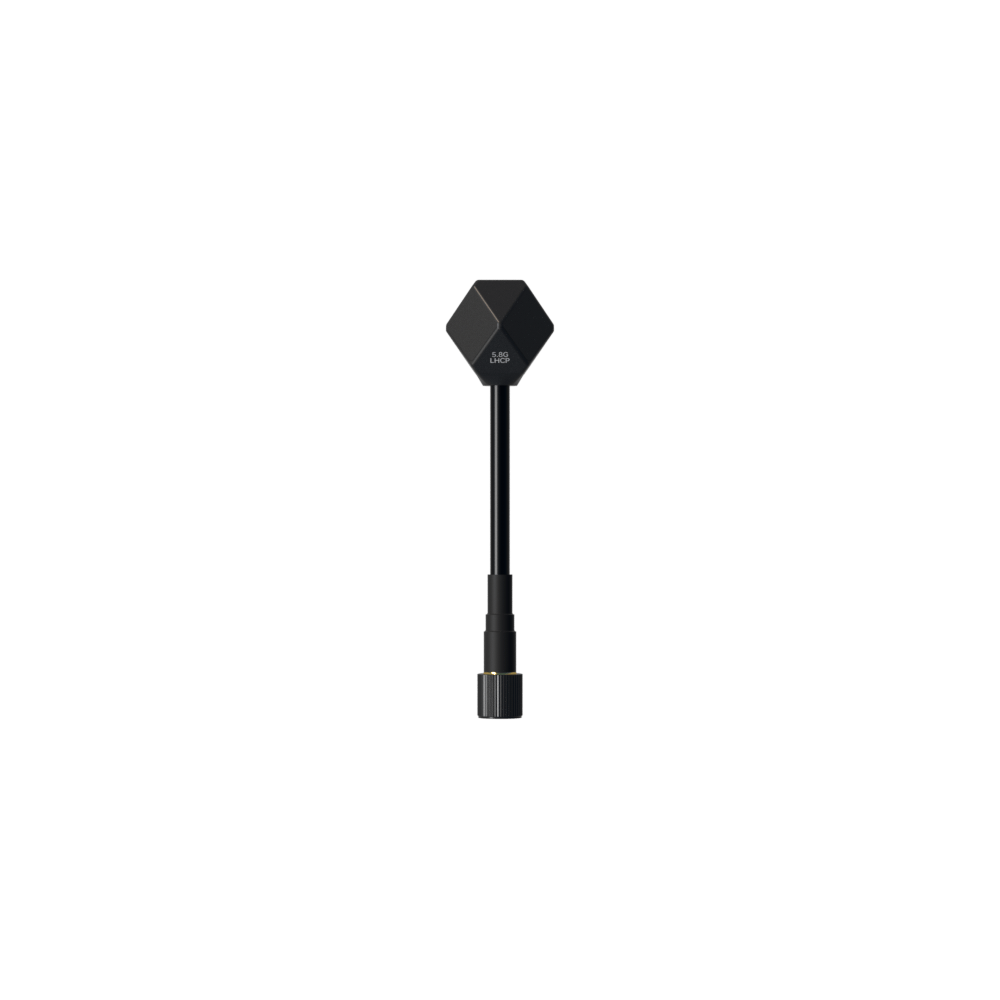

Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna
Interface: RHCP SMA
Frequency range: 5.3GHz-6GHz
Max Gain: 3.02dBi (5500MHz)
MIN Gain: 2.85dBi (5700MHz)
AVG Gain: 2.9dBi
MAX VSWR: 1.76（6000MHz）
MIN VSWR: 1.20（5300MHz）
AVG VSWR: 1.48
MAX radiation efficiency: 68.77%（5700MHz）
MIN radiation efficiency: 65.17%（5300MHz）
AVG radiation efficiency: 66.51%
Polarization: RHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 8.5g
Size: Total length: 90mm(±2mm), cable length:60mm
Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna
Interface: LHCP
Frequency range: 5.3GHz-6GHz
Max Gain: 3.05dBi (5500MHz)
MIN Gain: 2.88dBi (5800MHz)
AVG Gain: 2.95dBi
MAX VSWR: 1.74 (5700MHz）
MIN VSWR: 1.19 (5300MHz）
AVG VSWR: 1.5
MAX radiation efficiency: 68.89%（5500MHz）
MIN radiation efficiency: 64.51%（5300MHz）
AVG radiation efficiency: 66.82%
Polarization: LHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 8.5±0.5g
Size: Total length: 90mm(±2mm)
