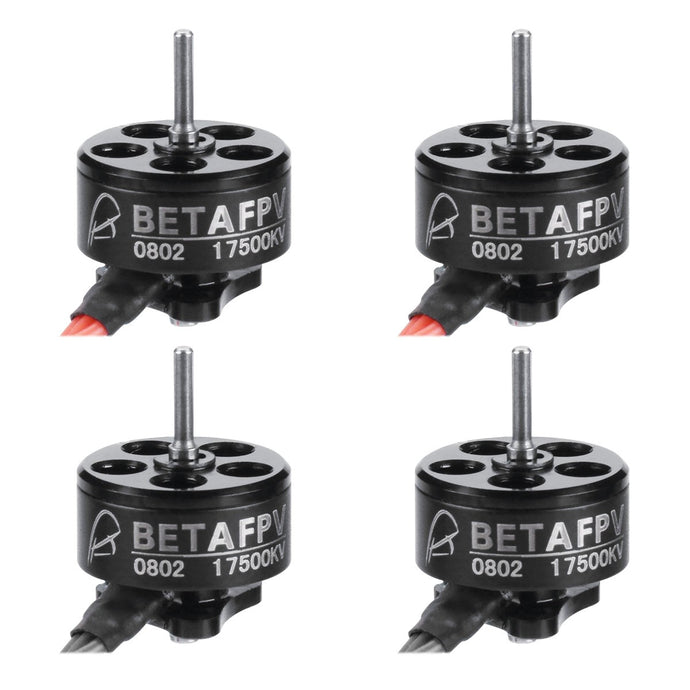

0802 motors come with three different KV -- 19500KV, 17500KV and 12000KV.
Awesome performance on power and thrust, perfect design on dynamic balance, high recommend for brushless whoop drone. There are 3 different KV value for your choice, you can pick the perfect motor for your drone. A 1.0mm header pins connector is included. So no soldering needed, just plug and play.
| 0802 Motors | Recommend Battery | Voltage |
| 19500KV | 1S | 3.7V |
| 17500KV | 1S | 3.7V |
| 12000KV | 2S | 7.4V |
Note: DO NOT recommend the 17500KV / 19500KV 0802 motors for 2S power. If you try this combo, the motors will overheat and burn (maybe the ESC). As a result, it will cause permanently damage on the motor or ESC.
BULLET POINTS
- 0802 19500KV/17500KV motors are suitable for 1S brushless drone - Beta65 Pro and Beta75 Pro.
- 0802 12000KV motors are for 2S brushless drone, like Beta65 Pro 2 and Beta75 Pro 2. The representation for power, experience the fast and powerful outdoor flight.
- Perfect for indoor high-speed flying, the power of 19500KV motors are obviously improved with the flight time of 3mins.
- Shaft diameter is 1.0mm, come with Micro JST-1.25 3-pin connector, convenience for installation.
- Compatible with 1S and 2S lipo battery, focusing on power, efficiency and durability.
Here is a specification comparison of the 19500KV, 17500KV and 12000KV motors.
- Flying time is the time from OSD voltage value 4.3V->2.8V.
- All tested with 4-blades props, 30mm props or 40mm props.
- All flight time are tested on full charged 300mAh batteries.
- 19500 KV and 17500 KV motors are tested on Beta65 Pro 1S while12000KV motors are tested on Beta 65 Pro 2.
RECOMMENDED PARTS
0802 17500KV /19500KV Motor:
- Propellers: 31mm 4-blade props/ 40mm 4-blade props (1.0 mm shaft hole)
- Frame: Beta65 Pro frame/ Beta75 pro frame
- FC: F4 2S AIO Brushless FC/ F4 1S Brushless FC
0802 12000KV Motor:
- Propellers: 31mm 4-blade props (1.0 mm shaft hole)
- Frame: Beta65 Pro 2 frame / Beta75 pro 2 frame
- FC: F4 2S AIO Brushless FC
PACKAGE
- 4 * BETAFPV 0802 Brushless Motors(19500KV/17500KV/12000KV)
- 1 * Pack of M1.6*4 screws
