โดรน BETA85 แบต4s ความชัดกล้องขนาด 4K เกรด Hobby.
Cinewhoop

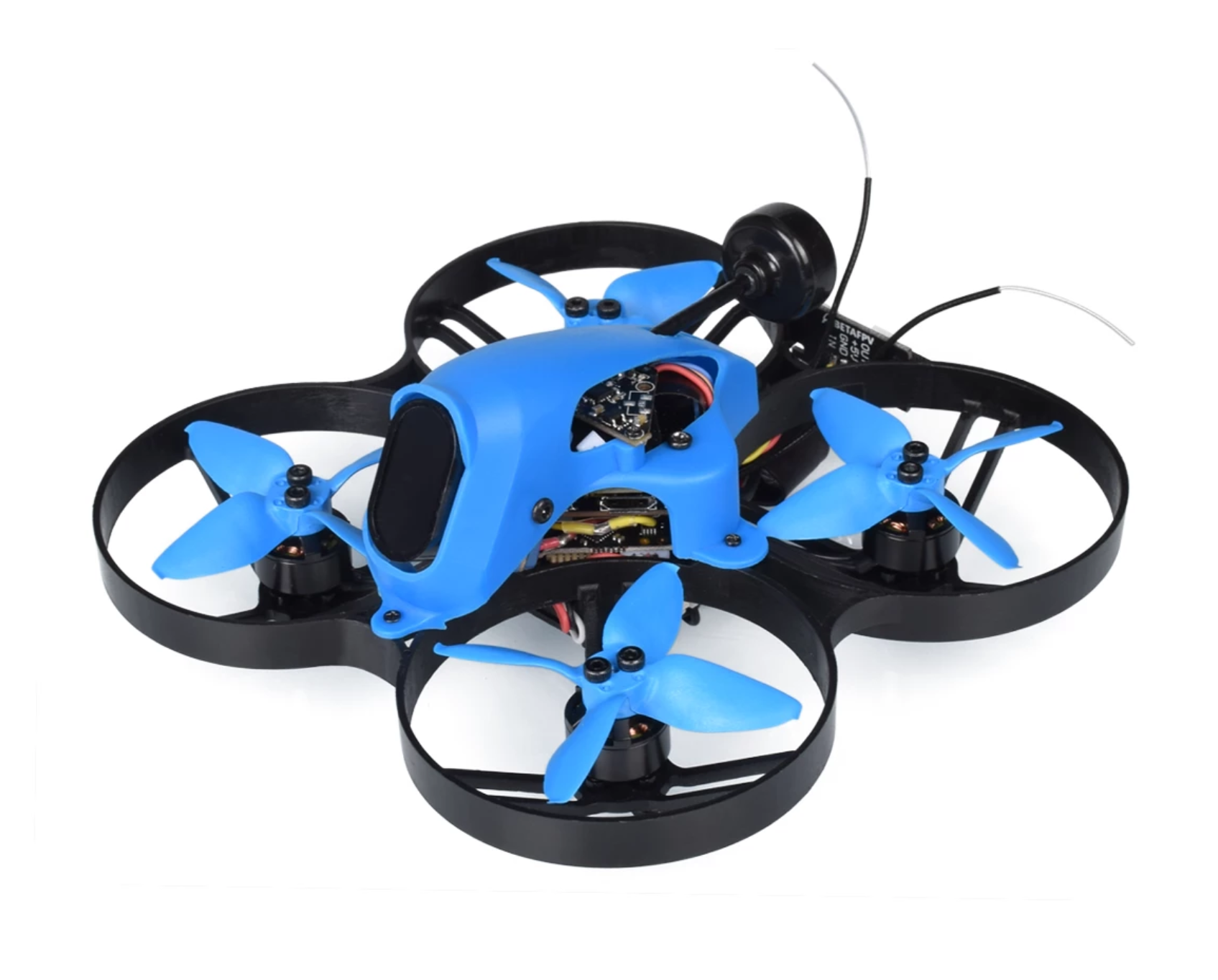

Beta85X 4K 4S Whoop - โดรน 4k ขนาดเล็กแล้วดีที่สุดในตอนนี้
BETA85X SPECIFICATIONS
- Weight: 88.6g (without battery)
- F405 V2 Flight Controller and 16A BLHeli_32 ESC
- Motors: 1105 5000KV with connector
- Props: 2" 4-Blades Props
- Camera: CADDX Tarsier 4K
- Canopy: Canopy for Tarsier 4K camera
- Receiver option: Frsky XM+ / DSMX / Futaba S-FHSS / Flysky / TBS Crossfire / PNP
- Recommend battery: 4S 450mAh Battery (Not including)
- 5.8G FPV antenna
- Flight time: 4min - 6min with 450mAh 4S battery
-
FC SPECIFICATIONS
Find more details about this F405 V2 FC in another page.
- CPU: STM32F405 (Overclock to 240MHz)
- Six-Axis: MPU6000
- Size: 26mm x 26mm, whoop mounting pattern
- Firmware version: Betaflight OMNIBUSF4SD (OBSD)
- OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
ESC SPECIFICATIONS
Find more details about this BLHeli 32 ESC board in another page.
- Support BLHELI_32
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
- Input voltage: 3-4S lipo
- Cotinue current: 16A
- Peak current: 19A
- Firmware target: BETAFPV-16A-32bit
- MCU: STM32F051K66
Camera SPECIFICATIONS
Find more details about this Caddx Tarsier 4K camera in another page.
- Weight: 19.5g
- FOV: 4KF 2.8, FOV 150°(16/9), FPV FOV 165°（4/3）
- Lens: Dual lens 2.8 / 12Mega
- Image Sensor: 12M SONY sensor
- TV System: NTSC / PAL, can be changed
- Anti-Shake: Hardware anti-shake
- Scene Mode: Auto / Personage / Scenery / Defog
- Recording Timing Larm: OFF / 1mins / 3mins / 5mins / 10mins
- Horizontal Resolution: 1200TVL
- Image: 16:9 / 4: 3 (changeable)
- Camera OSD: Seperate OSD
- The camera tilt angle is switchable from 20 degree to 30 degree with ND8 fliter.
