FrSky R9 MM-OTA ACCESS 16CH 900MHz Long Range RC Mini Receiver Support Wireless Upgrade Firmware Inverted S.Port RSSI Output

Overview:

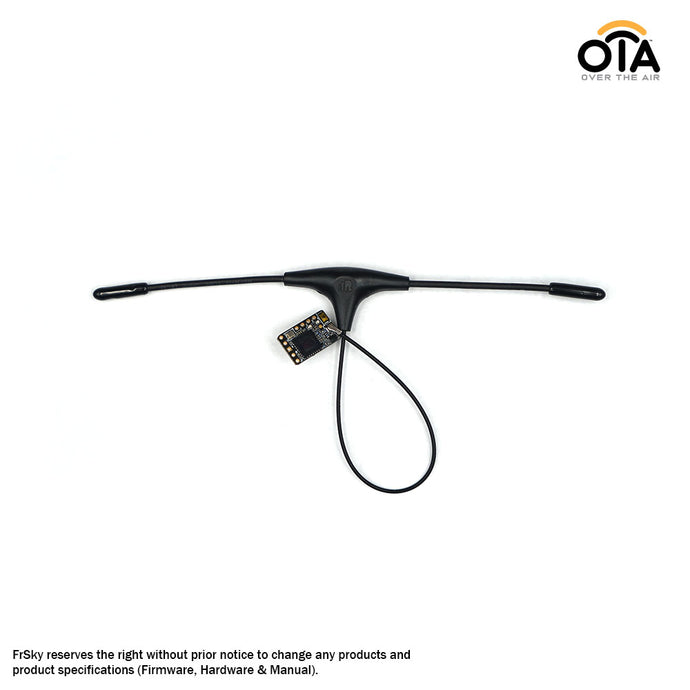

The 900MHz R9 MM-OTA receiver implements the ACCESS protocol and brings the user improved performance and features. The R9 MM-OTA supports wireless firmware updates over the air making binding to receivers even easier. As well as the convenience of checking the current receiver firmware version. The R9 MM’s compact form factor design is also carried over to the OTA version, and the R9 MM-OTA supports inverted S.Port as well.

This receiver works compatible with the new release R9M Lite Pro module,and the other 900MHz modules will also be supported when the ACCESS firmware is available.

Specification:
Brand: FrSky
Item Name: R9 MM-OTA Receiver
Dimension: 16*10*2.8mm (L×W×H)
Weight: 0.7g (without antenna)
Number of Channels:
--Non-LBT Version: 4/16CH (Telemetry)
--LBT-8CH Version: 4/8CH (Telemetry)
--LBT-16CH Version: 4/16CH (Telemetry) / 4/16CH (No Telemetry)
Operating Voltage Range: DC 3.5V – 10V
Operating Current: 100mA@5V
Operating Range: Up to 10km or above
Compatibility: R9 series module (ACCESS protocol)

Feature:
915MHz (Non-LBT Version)/ 868MHz (LBT Version)
Mini size and super lightweight
Supports OTA firmware update
Supports firmware version check
S.Port enabled and support telemetry data transmission
(Support F.Port, download firmware to support the function)
Inverted S.Port enabled
Low latency and high precision
With RSSI output in SBUS
Battery voltage detection supported
Detachable Ipex connector antenna

Package Included:
1 x R9 MM-OTA Receiver
