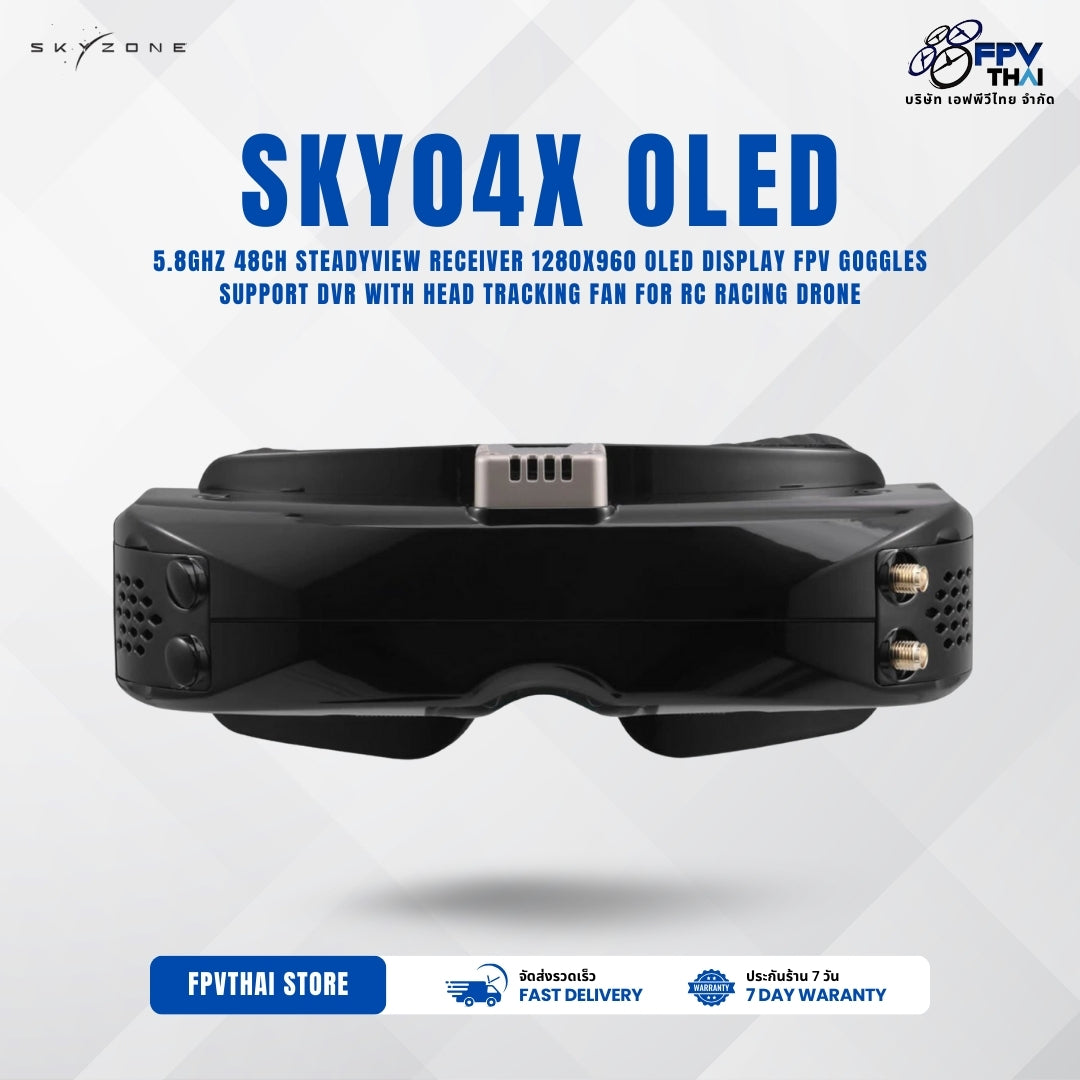

SKYZONE SKY04X OLED 5.8GHz 48CH Steadyview Receiver 1280X960 OLED Display FPV Goggles Support DVR with Head Tracking Fan for RC Racing Drone
SKY04X is the first sky zone goggles with adjustable focus, 1280 * 960 high resolution screen, bright colors and high contrast, pilots can see more details in the race.
With Steadyview receiver, the receiver combines two signals together, avoiding tearing and rolling of images, making the picture more stable and clear in challenging conditions.
The newly designed lens features 46 degree focus adjustment and field of view, giving pilots a more realistic FPV experience.
A new operating system with 10 languages to choose from, pilots have no problem with the menu system. With a shuttle wheel and a new user interface, pilots can set them all just by turning the wheel without having to remove their glasses.
Description:
Brand: SKYZONE
Model: SKY04X
Item: 5.8GHz 48CH Steadyview Receiver 1280X960 FPV Goggles
Screen: OLED
Resolution: 1280X960
FOV (Diagonal): 46 °
AspectRatio: 4: 3/16: 9
Focus: -6 ~ + 6 adjustable
Interpupillary distance (IPD): 58-71 ((
Receiver: 5.8Ghz 48CH Steadyview Receiver
Language: 10 languages
Power supply: DC6.5-25.2V / USB5V
PowerConsumption: 720mAat12V
DVR: H264,30fps, MOV6Mbps, SD card support up to 128Gb
Head Tracker: Accelerometer 3 แกน, 3-axisgyroscope
Size: 185 * 75 * 67mm
Weight: 267g
* SteadyView Receiver
The SteadyView receiver combines two signals together, making the picture more stable and clear in challenging conditions.
With a glasses module compartment, more upgradeable capability.
* Focus adjustment
The new optics have a large field of view (46 degrees) and the lens features focus adjustment (-6 ~ + 6) without the need for a diopter anymore.
* OELD screen
1280 * 960 screen has high definition and vivid color, high contrast ration, pilots can see more details.
* Advanced screen settings
Switchable aspect ratio and 4 preset screen settings and 3 custom settings for indoor flight, outdoor or weather.
* Shuttle wheel control
No more confusing multi-function buttons or a 5-way joystick with smooth and intuitive shuttle controls.
* New user interface with 10 languages.
New UI with easy to use shuttle wheel, 10 languages to choose from for local users.
BAND / CHANNEL Desk:
| Band / ch | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| A | 5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M |
| B | 5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M |
| IS | 5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M |
| F | 5740M | 5760M | 5780M | 5800M | 5820M | 5840M | 5860M | 5880M |
| R | 5658M | 5695M | 5732M | 5769M | 5806M |
5843M |
5880M | 5917M |
| L | 5362M | 5399M | 5436M | 5473M | 5510M | 5547M | 5584M | 5621M |
| Sensitivity | -98dBm ± 1dBm | |||||||
| Antenna port | 2 X SMA-K, 50 ohms |
SKY04X FPV GOGGLE User Manual: Click here
Package included:
1x glasses
1x Receiver module
2x Faceplate (wide and narrow)
1x sponge velcr0
1x zipper
1x power cable
1x Headtracker Cable
2x 5.8GHz 2dD antennas
1x video / audio cable
1x USB-C cable
1x Uer manual
