Description
Feature
- 1. Adopts the high-performance STM32H743 as the main controller
- 2. Equipped with MPU6000 and 42688-P dual gyroscopes
- 3. 512MB high-capacity black box storage
- 4. Bluetooth parameter tuning
- 5. Plug-and-play, no soldering required
- 6. Integrated barometer
- 7. Features 7 UART ports
- 8. Independent BEC with 12V@2.5A and 5V@3A outputs
- 9. Supports multiple firmware options
- 10. Equipped with the TAKER H65_8S_32Bit 65A 4IN1 ESC for a smooth flight experience
Specifications

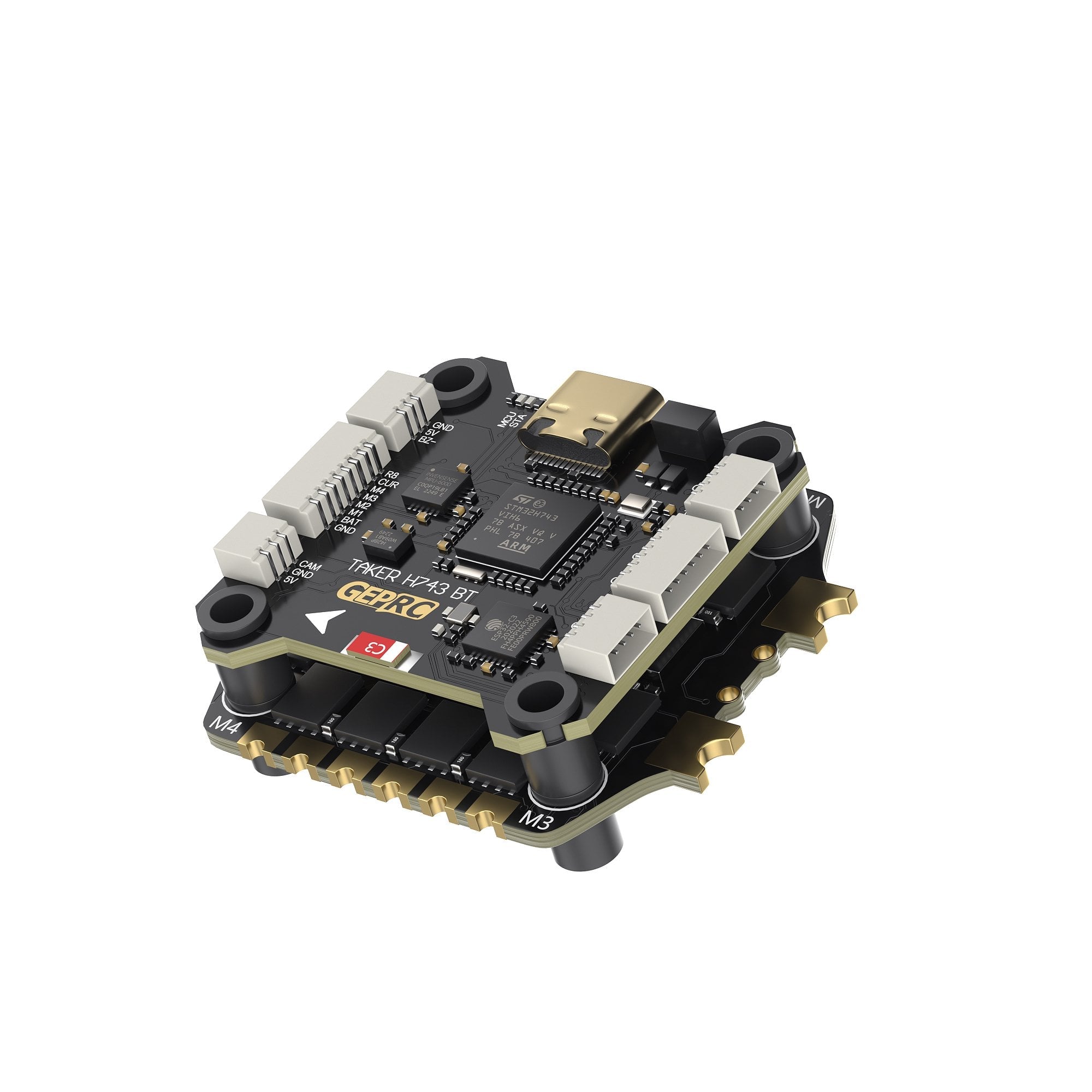

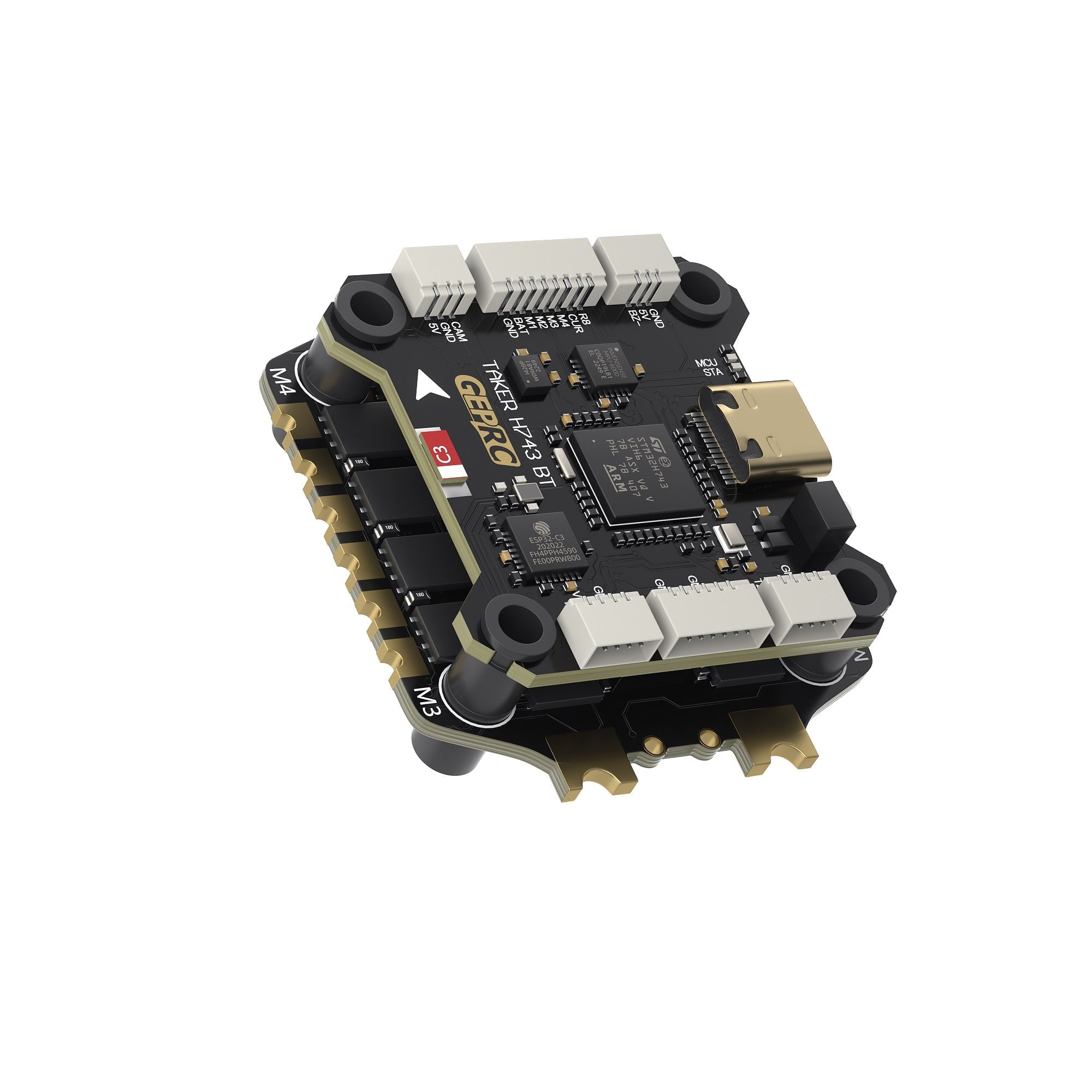

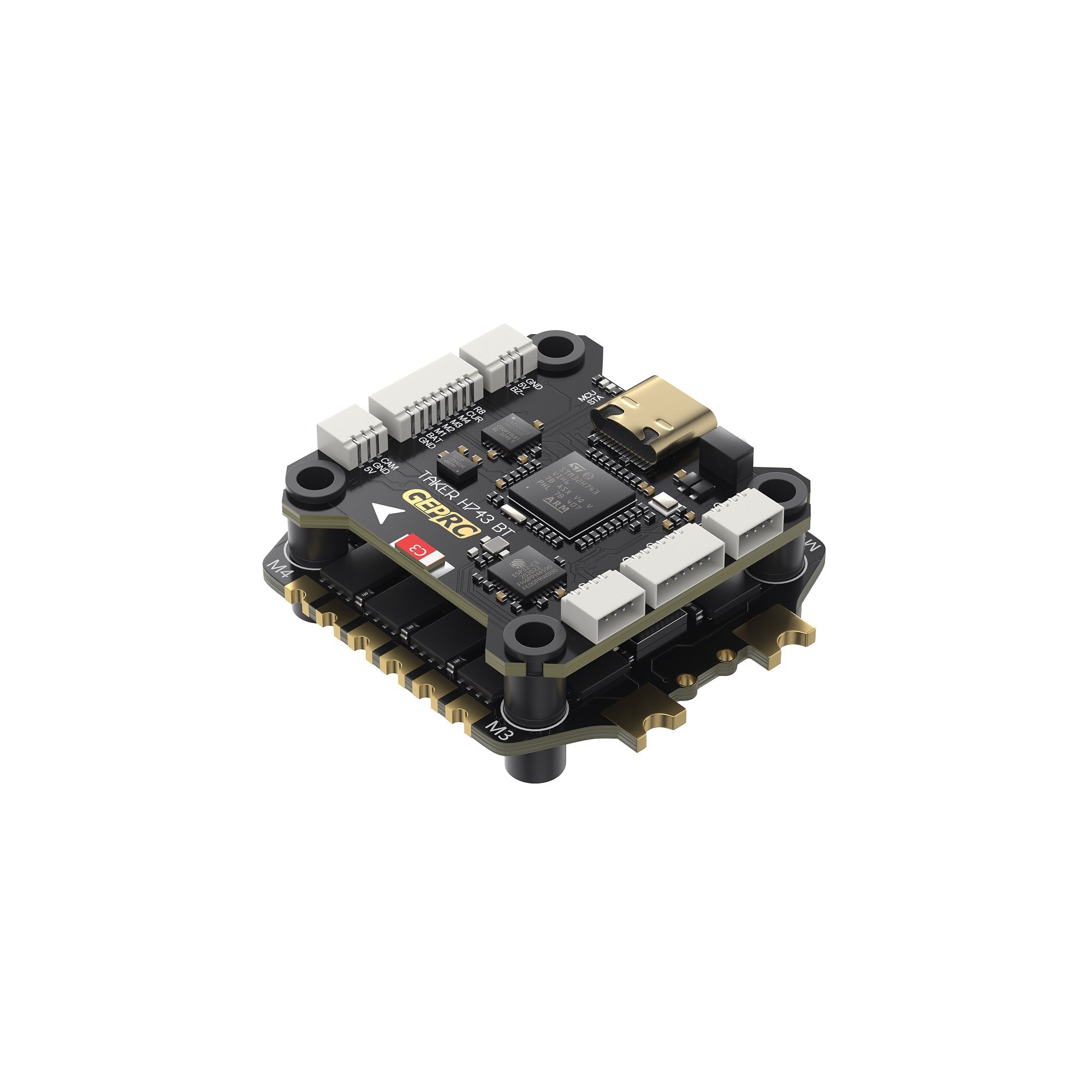

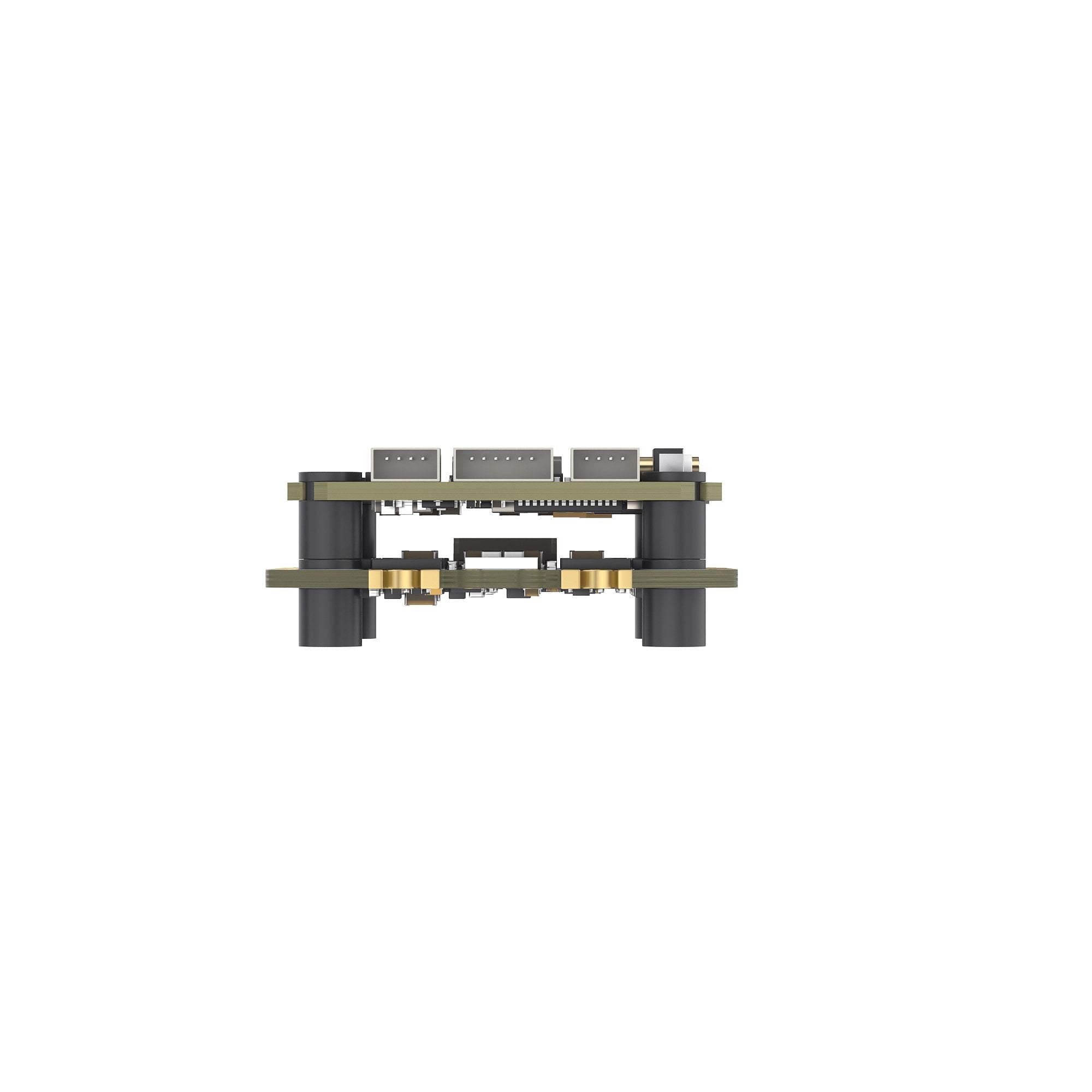

TAKER H743 BT 32Bit 65A STACK

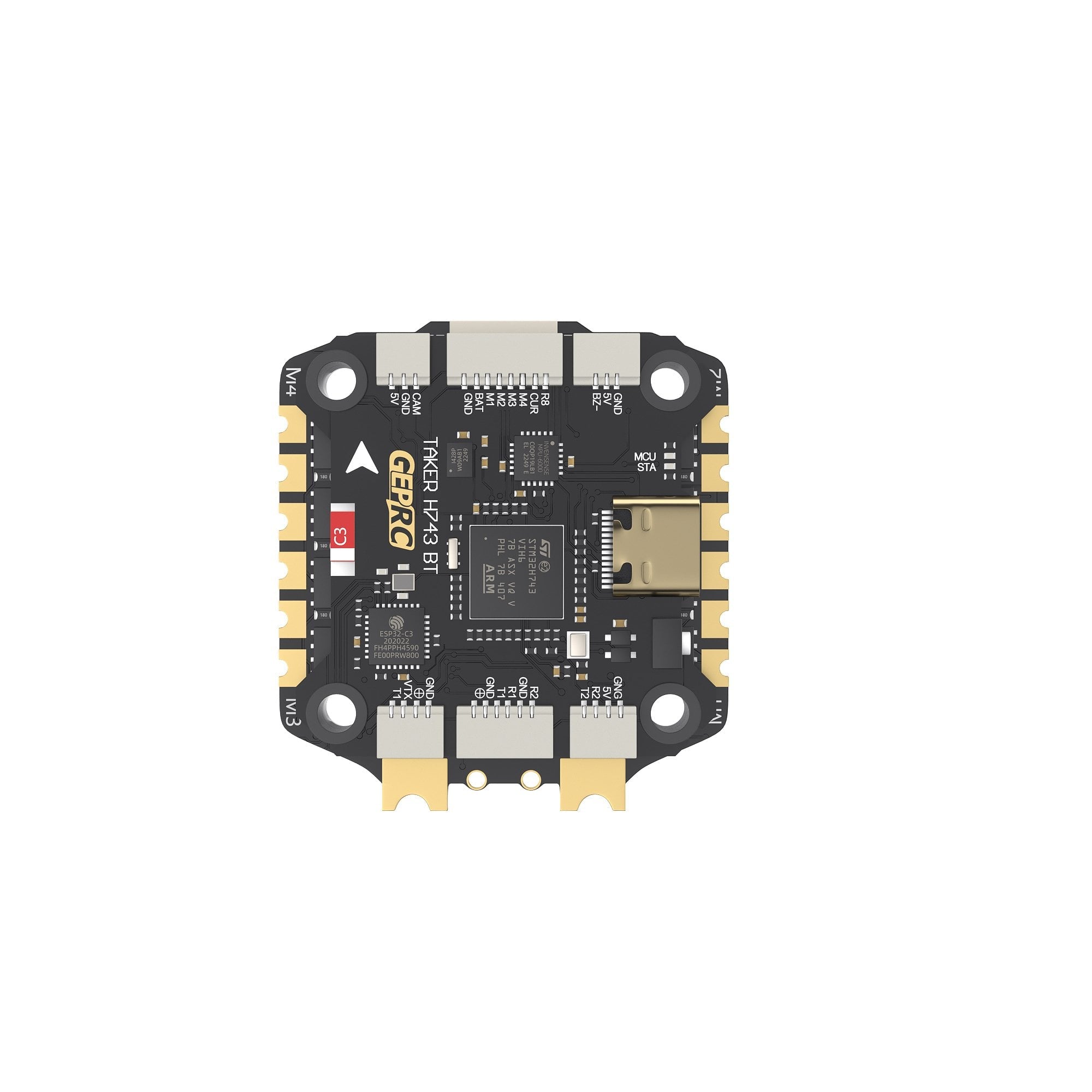

FC model: TAKER H743 BT Flight Controller
- MCU: STM32H743
- IMU: MPU6000 + ICM42688-P(dual gyro)
- Air Unit Connection: direct plug for DJI Air Unit
- Black Box: 512M onboard
- Bluetooth: Supported
- Barometer: Supported
- USB Interface: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V@3A,12V@2.5A dual BEC
- Target: GEPRC_TAKER_H743
- Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
- Input Voltage: 3-6S LiPo
- UART Ports: 7 groups (UART3 fixed for Bluetooth)
- Power Filtering: Integrated LC filter
- Weight: 8.4g

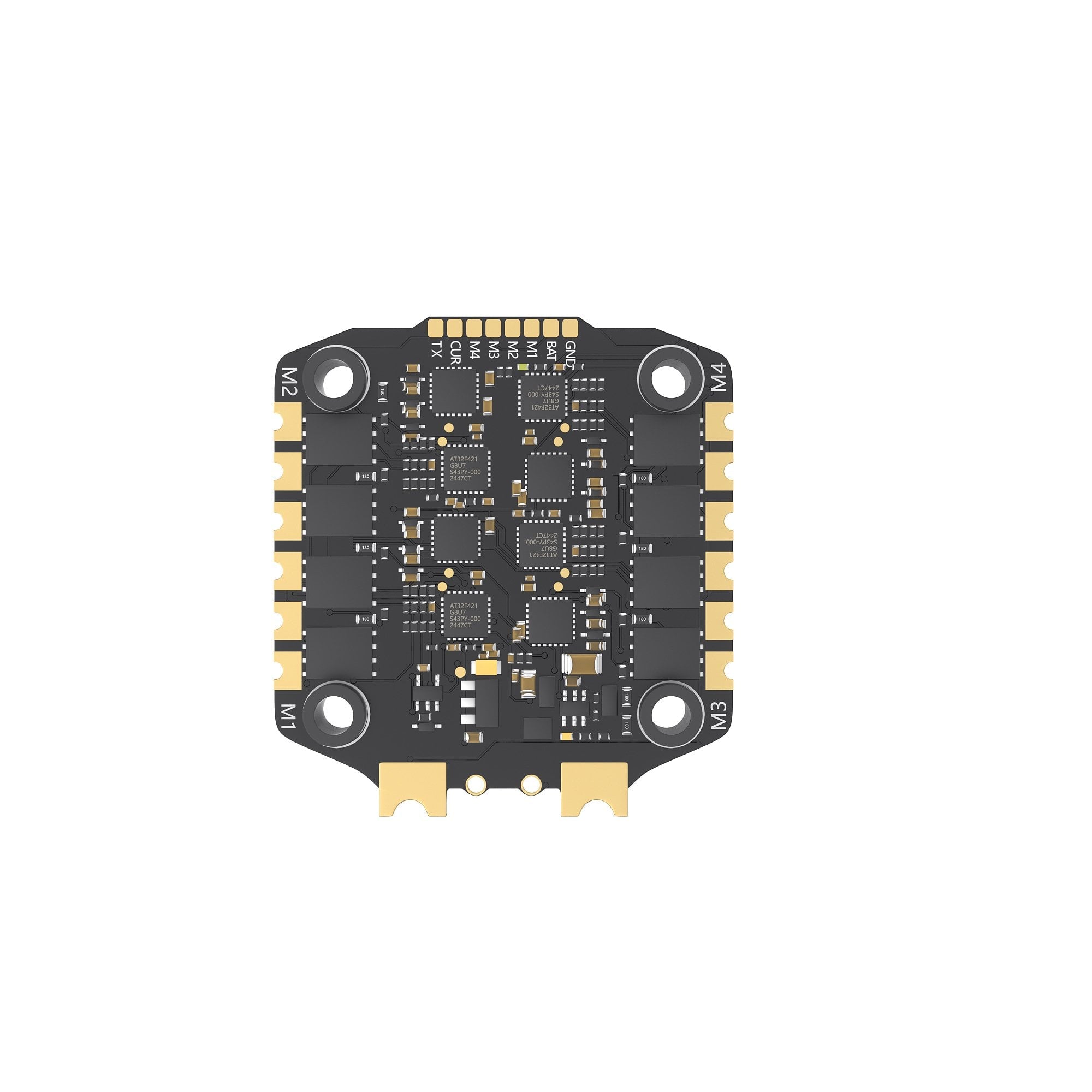

ESC Model: TAKER H65_8S_32Bit 65A 4IN1 ESC
Input Voltage: 3-8S Lipo(STACK only supports 3-6S)
Ammeter: Support
Continue Current：65A
Burst Current：70A（5 seconds）
Support Protocol: Dshot 150/300/600
Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 15.8g
Target: GEPRC_F4_4in1
Includes
1 x TAKER H743 BT Flight Controller
1 x TAKER H65_8S_32Bit 65A 4IN1 ESC
1 x Electrolytic capacitor(50V 1000uF)
1 x DJI connection cable(SH1.0 6pin 100mm)
1 x FC adapter cable(SH1.0 8pin 30mm)
1 x Receiver silicone cable(SH1.0 4pin 150mm)
1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)
1 x VTX connection cable(SH1.0 4pin-6pin 100mm)
1 x XT60 power cable(12AWG 110mm)
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts(M3)
12 x Silicone anti-shake pads(M3)
