Summary

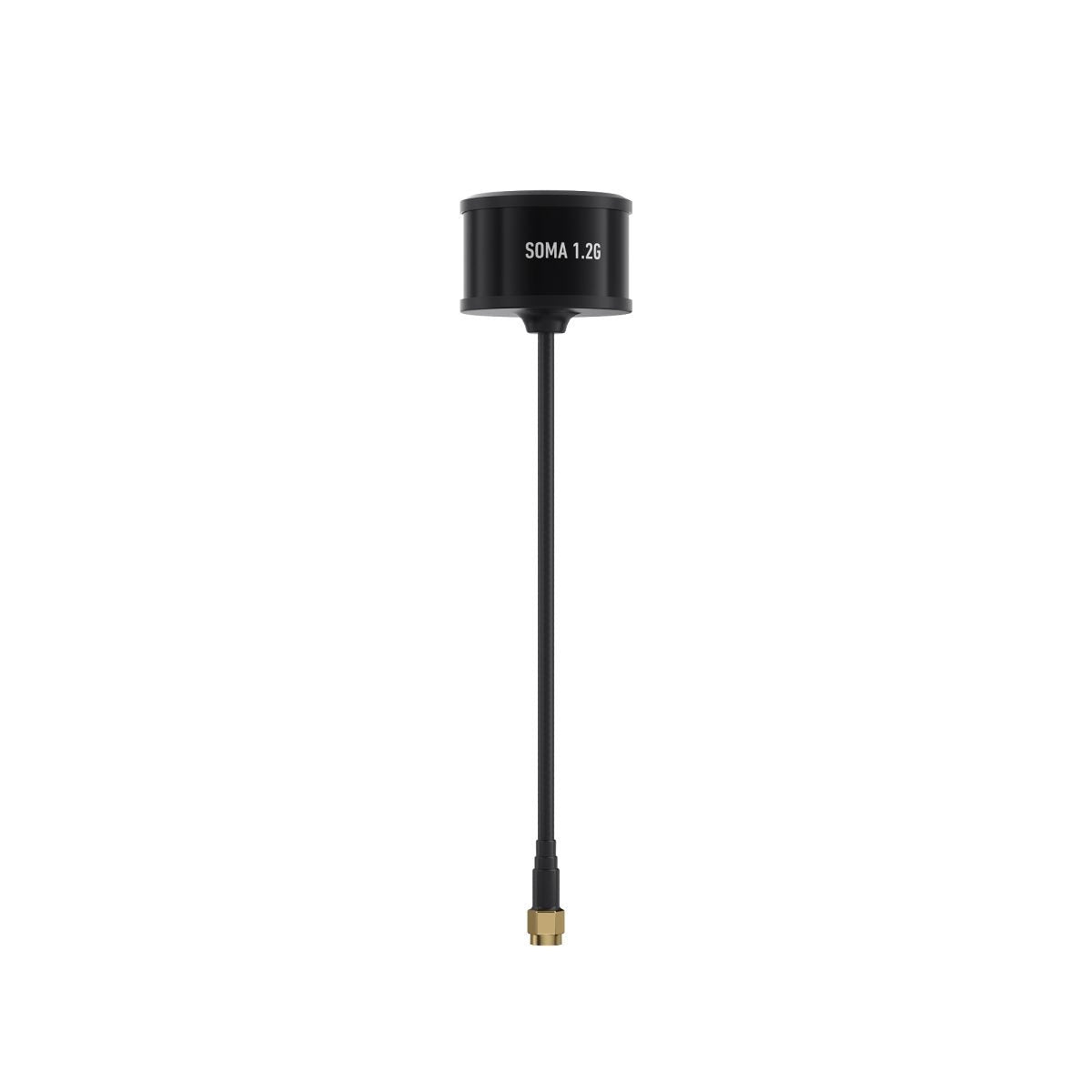

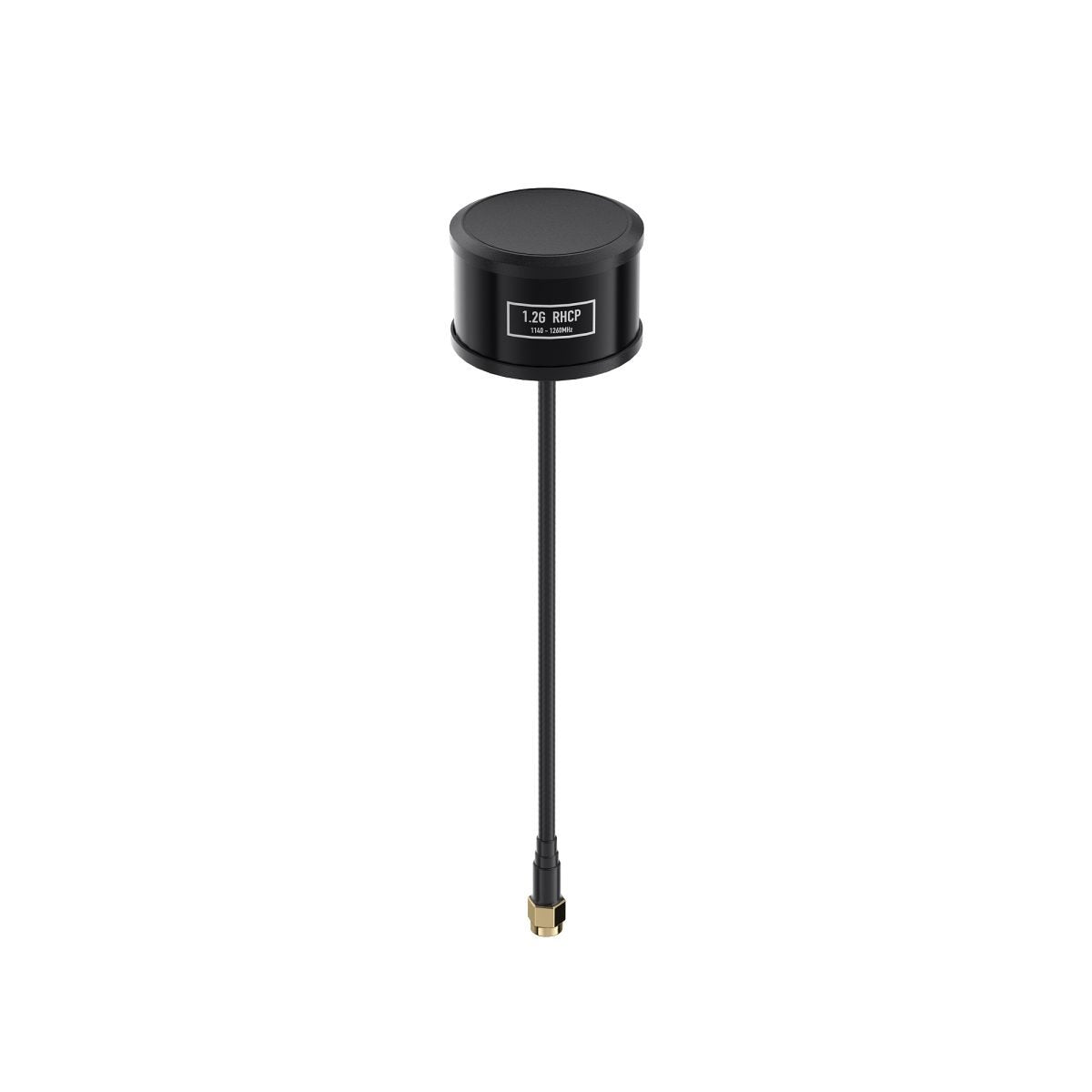

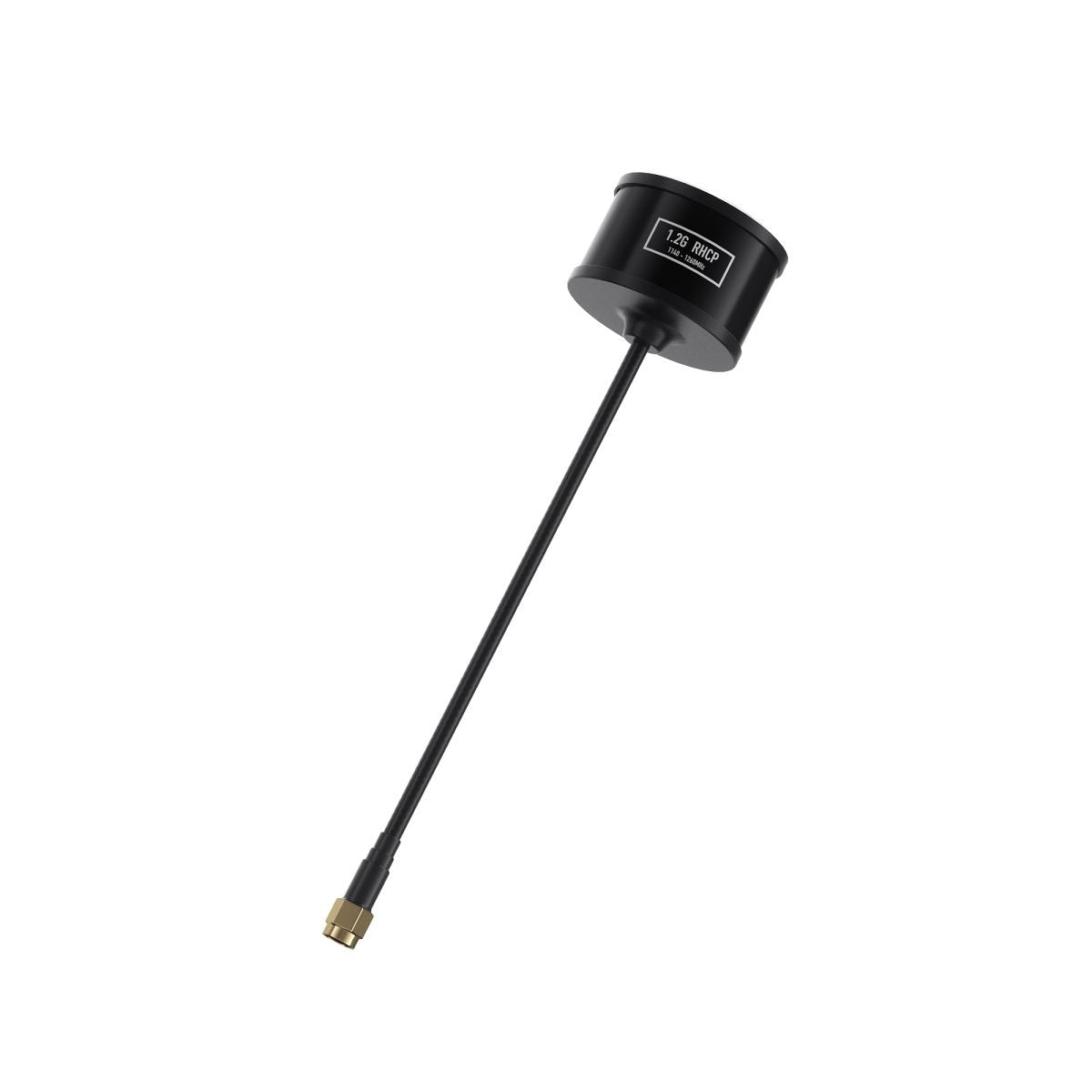

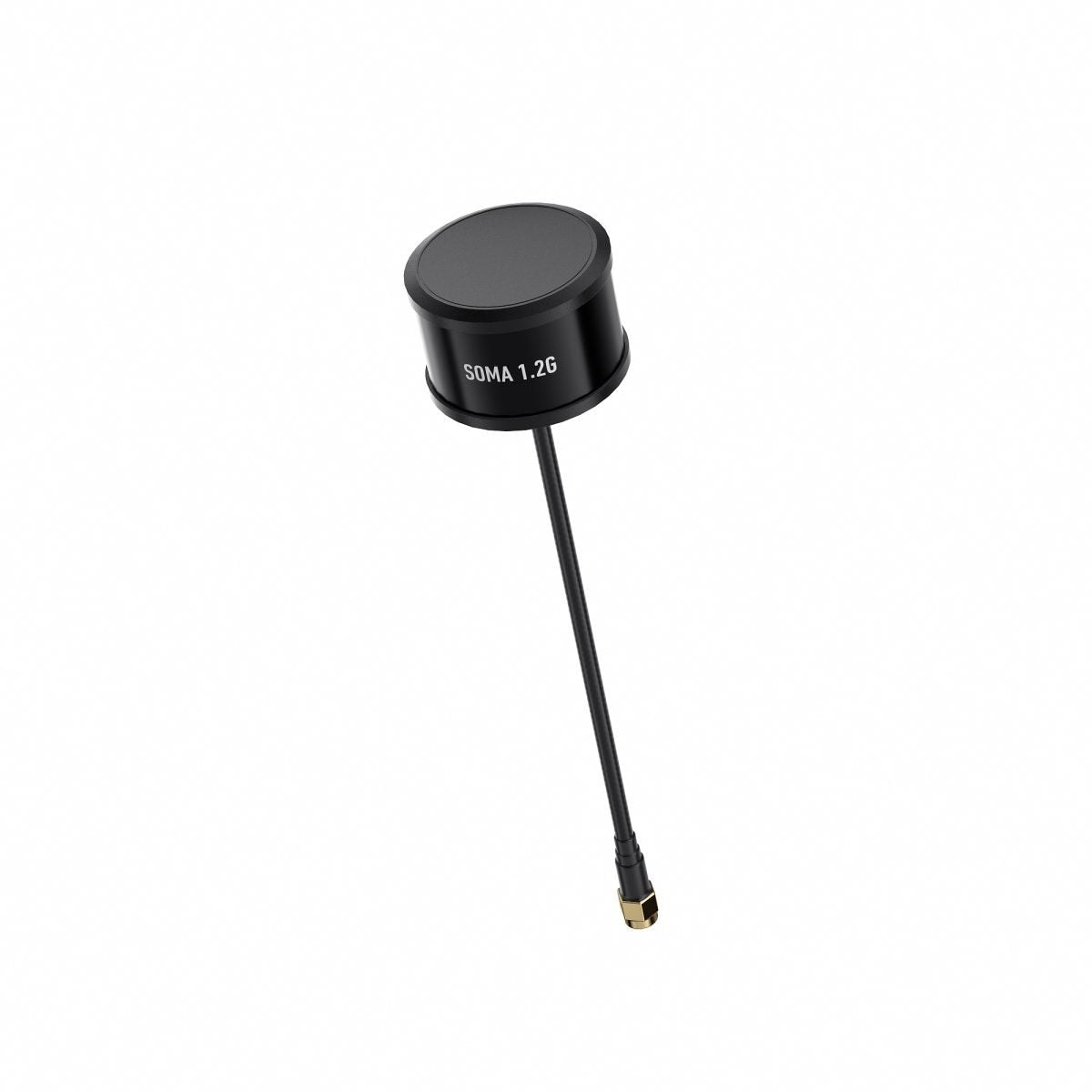

The GEPRC SOMA 1.2G/1.3G antenna utilizes flexible PCB material, delivering up to 2dbi gain. It ensures wide signal coverage, maintaining robust communication even amidst significant angular variations. Its outstanding cross-polarization suppression capability effectively minimizes interference, making it ideal for use even in environments with strong electromagnetic fields.
Features
- Two-bandwidth design:1.2G band spans 1140-1260MHz and 1.3G band spans 1260-1360MHz.
- Narrower bandwidth results in higher gain, reaching up to 2dbi.
- Utilizes robust RG141 coaxial cable with a durable plastic casing.
- Features high-quality SMA connectors to minimize signal loss.
- Each antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.
Specifications
Model: GEPRC SOMA 1.2G antenna
- 1.2G Center Frequency: 1200MHz
- 1.2G Bandwidth: 1140MHz～1260MHz
- Polarization: RHCP
- Gain: 2dbi
- Axial Ratio: ≤3
- VSWR: ≤1.5
- Radiation Efficiency: 75%
- Cross Polarization Suppression: -25dB
- Length: 170mm
- Antenna Design: FPC+PCB
- Antenna Weight: 17.6g
- Enclosure Material: ABS
- Connector Type: SMA
Model: GEPRC SOMA 1.3G antenna
- 1.3G Center Frequency: 1310MHz
- 1.3G Bandwidth: 1260MHz～1360MHz
- Polarization: RHCP
- Gain: 2dbi
- Axial Ratio: ≤3
- VSWR: ≤1.5
- Radiation Efficiency: 75%
- Cross Polarization Suppression: -25dB
- Length: 170mm
- Antenna Design: FPC+PCB
- Antenna Weight: 17.6g
- Enclosure Material: ABS
- Connector Type: SMA
Includes
1 x GEPRC SOMA 1.2G/1.3G antenna
