Description
Features
- Smooth, ultra-thin design.
- Low VSWR, high gain directional antenna, up to 17dBi.
- 1/4 aluminum alloy base, compatible with various brackets.
- High-quality SMA connector for lower impedance and better transmission efficiency.
- Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards
Specifications

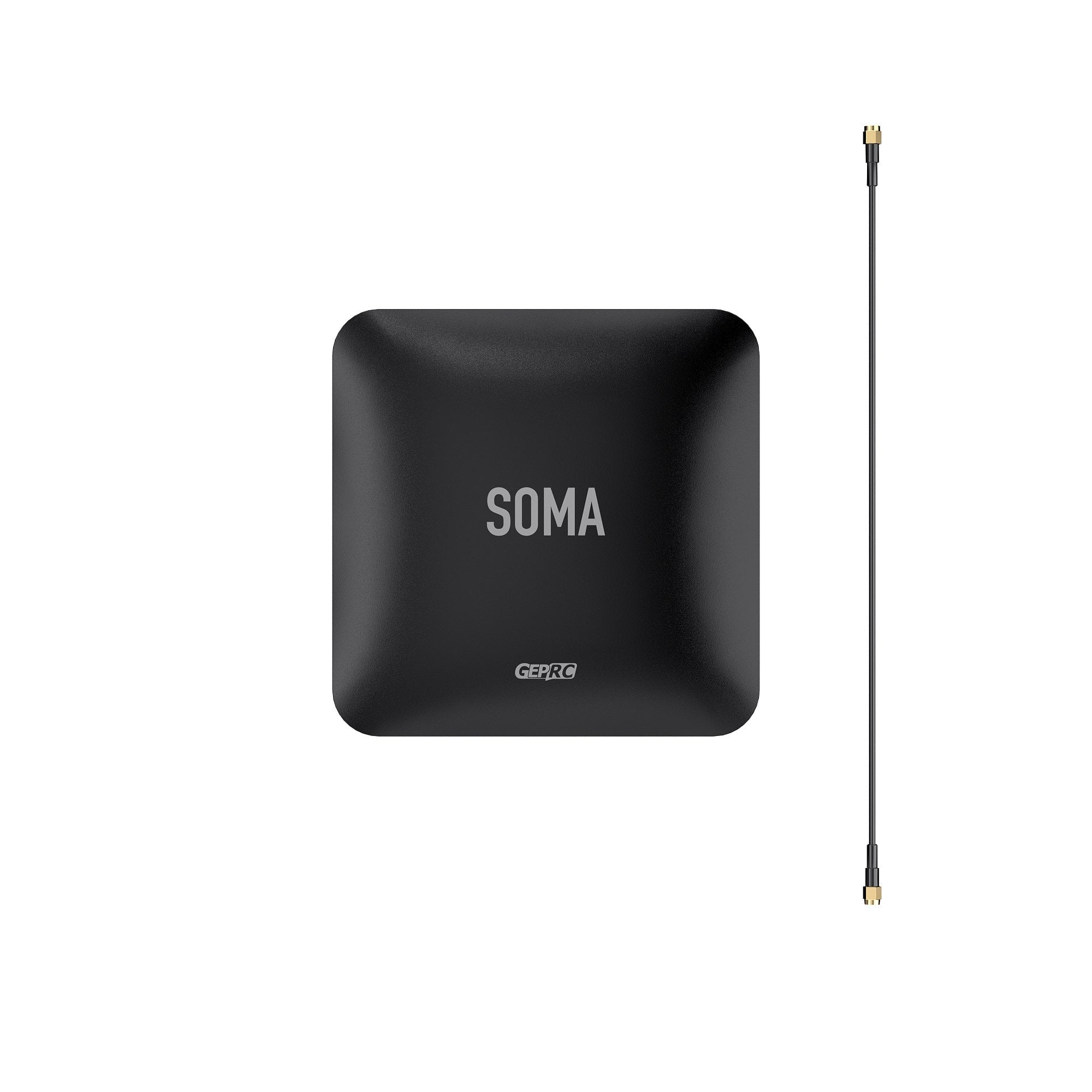

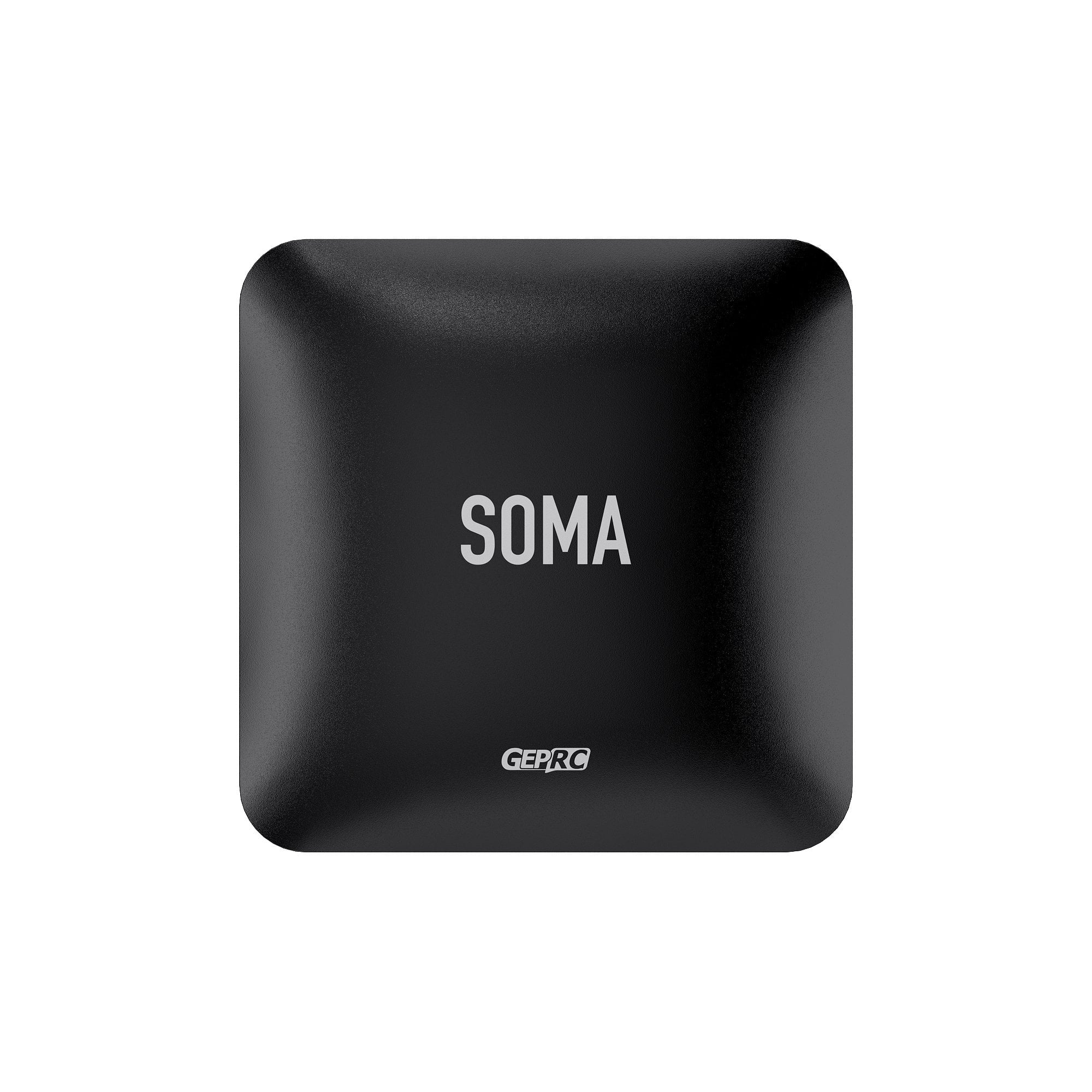

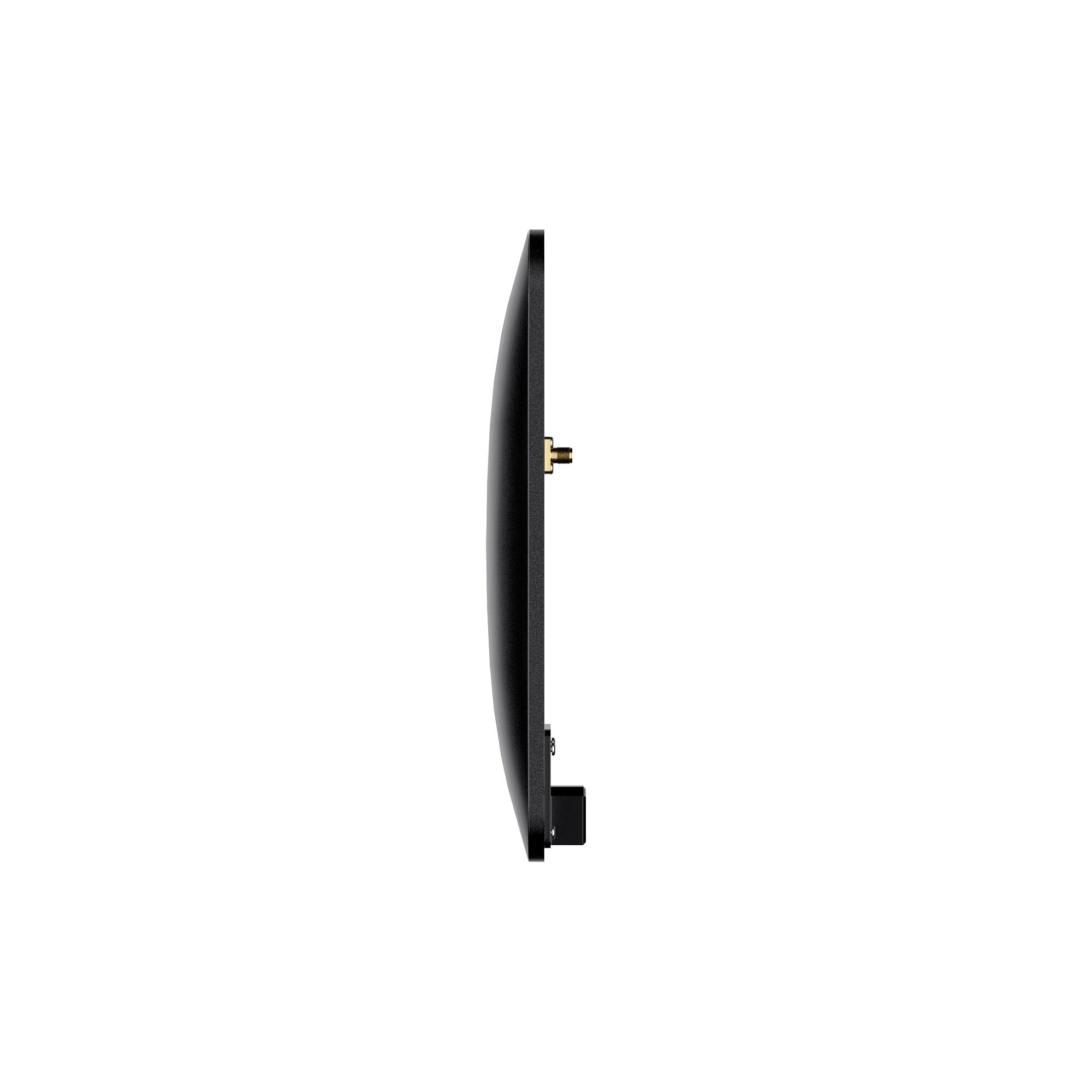

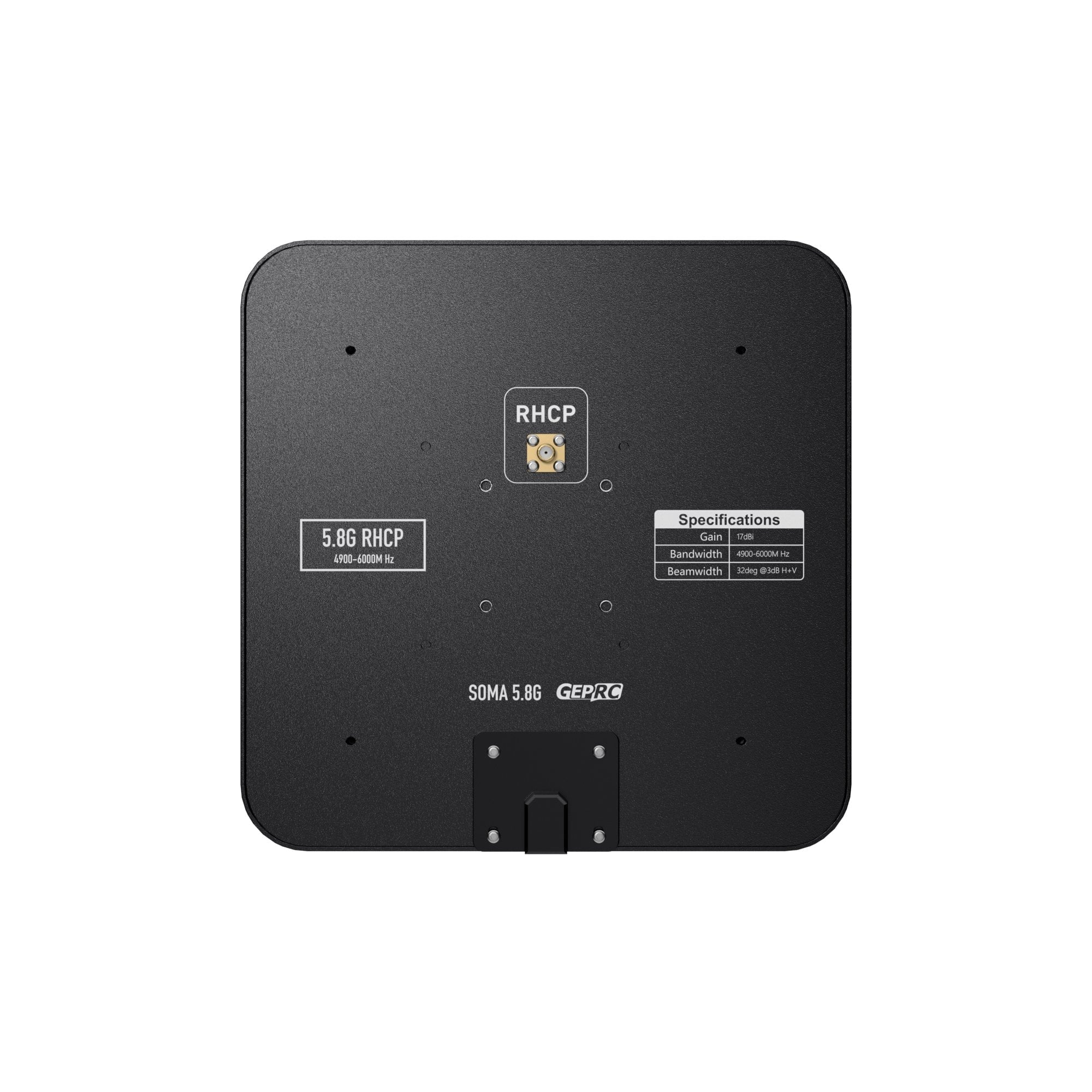

- Model: GEPRC SOMA 5.8G Directional Patch Antenna
- Center Frequency: 5.45GHz
- Bandwidth: 4.9GHz~6GHz
- Polarization: RHCP
- Gain: 17dBi
- Axial Ratio: ≤3
- SWR：≤1.5
- Radiation Efficiency: 88.5%
- Cross polarization suppression: -25dB
- Overall Dimension: 203.5mm x 203.5mm x 20mm
- Antenna Weight: 272g
- Enclosure Material: ABS
- Connector Type: SMA (external thread, internal hole）
Includes
1 x SOMA 5.8G Directional Patch Antenna
