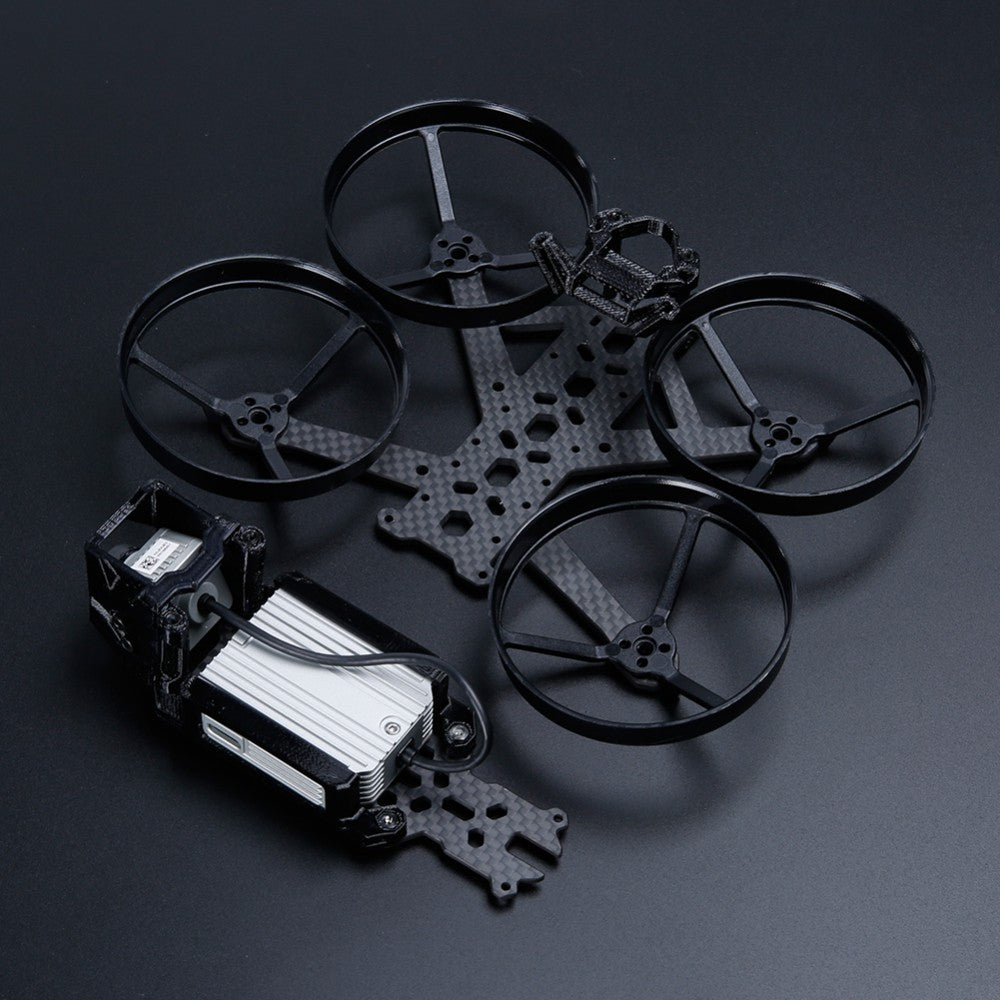

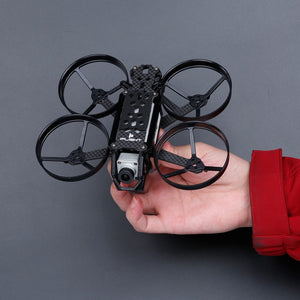

iFlight TITAN DC2 HD Whoop Frame
iFlight TITAN DC2 HD Whoop Frame

iFlight TITAN DC2 HD Whoop Frame

Vendor
iFlight
Regular price
Sold out
Sale price
1,350.00 ฿
Unit price
per
Shipping calculated at checkout.

PRODUCT DESCRIPTION

Features:

  • Less than 250grams included 4S 450mAh battery
  • No Props or frame in view!
  • Low Resonance frame construction (Less Jello, more Cinematic)
  • DJI FPV Air Unit 720p 120fps FPV feed (record in 1080p/60fps)
  • Butter smooth XING1404 4S
  • Duct prop guards to protect the sensitive environment or yourself


Specification:



  • Wheelbase: 122mm
  • Bottom plate thickness: 3mm
  • Top plate thickness: 2mm
  • Top and bottom plate spacing: 25mm (aluminum column height 25mm)
  • Ducted propeller size: 2.3 inch
  • Maximum propeller size without ducts: 2.5 inch (or 65mm props)
  • FC pattern: 20*20mm,30.5*30.5mm
  • FPV cam spacing: 19mm
  • Weight: 165g (without battery)


  • TITAN DC2 HD Frame recomonded(not included)
  • SucceX-A F4/40A BLHeliS true AIO board (link)
  • Motor: XING NANO 1404 4600KV (link)
  • 2.3 inch ducted, 2.5 inch or 65mm unducted propellers
  • Battery: 4s 450mAh (link)
  • Battery: 4s 650mAh (link)


Package included:

  • 1x TITAN DC2 HD Frame
  • 1x Ducts
  • 1x iFlight Lipo Strap
