Product Description

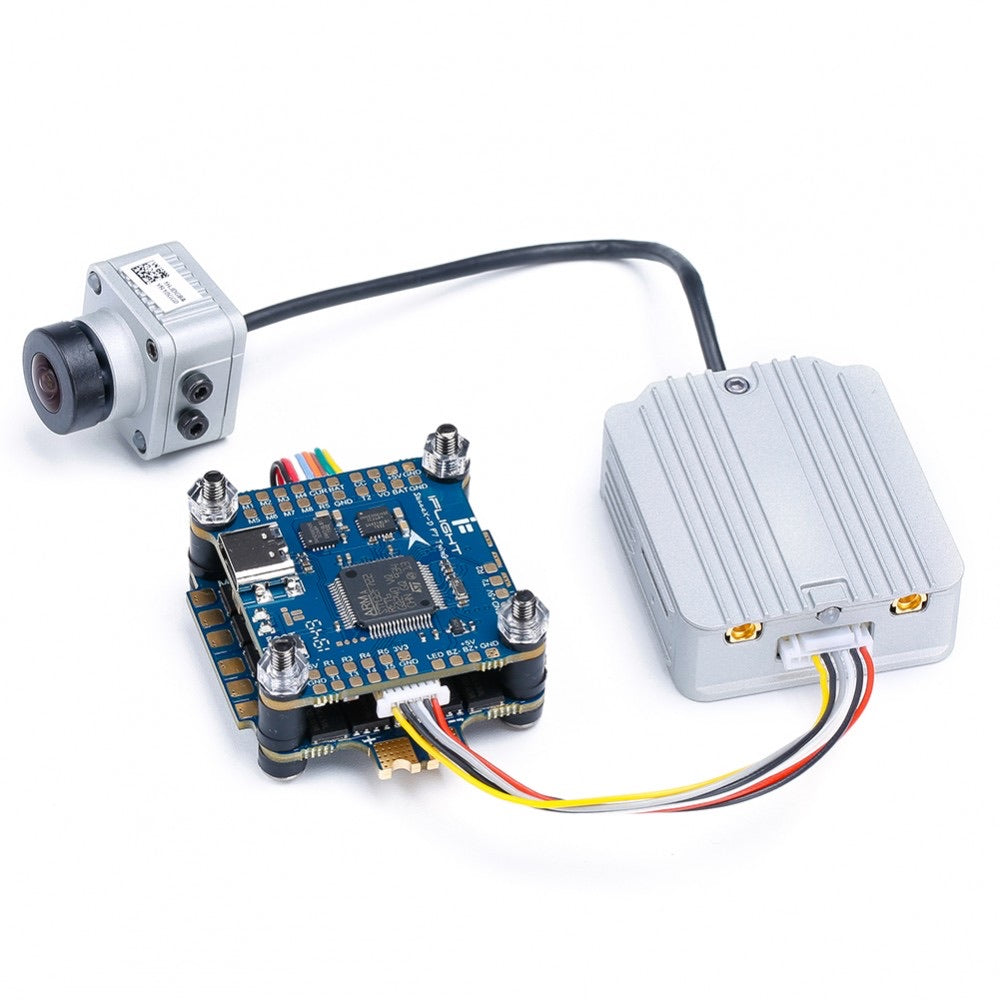

The SucceX-D F7 V2.1 is designed to work seamlessly with DJI’s new HD FPV system. To make things even simpler, the DJI Air unit can just be plugged into the FC with the included wire harness. In addition, we added the popular and reliable USB Type-C instead of Micro USB and therefore the same standard than your DJI module.

Features

• Universal USB Type C connector instead of micro USB

• Plug-and-Play. No need to solder tiny wires.)

• Supports BLHeli pass-through for easy ESC upgrade and configuration.

• Designed to support DJI Digital FPV.

FC // SucceX-D F7 V2.1 TwinG

  • MCU: 216MHz STM32F722
  • Gyro:2x ICM20689
  • Baro: YES
  • Blackbox:32MB
  • Betaflight OSD: YES
  • BEC: 5V 2.5A / 9V 2.5A
  • Current sensor scale:  100
  • Inverter for SBUS input (UART2-RX)
  • Smartaudio & Tramp VTX protocol supported
  • Beeper pad : Yes
  • RSSI input pad: No
  • UARTs:5
  • Motor outputs: 8
  • 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
  • 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)
  • BLHeli32 Telemetry:RX5
  • Input voltage:recommended 2-6S, MAX 8S
  • Firmware Target:   IFLIGHT_F722_TWING
  • Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ3mm
  • Dimensions:   36*36mm

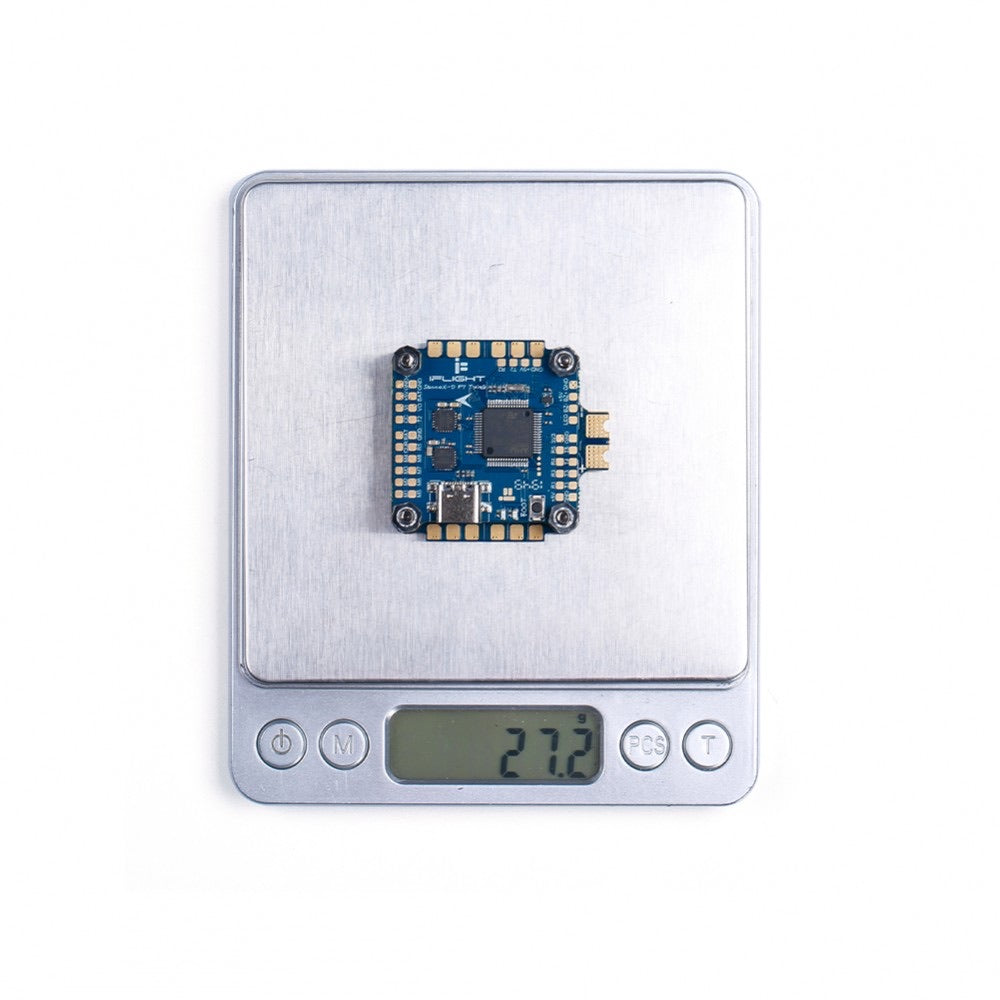

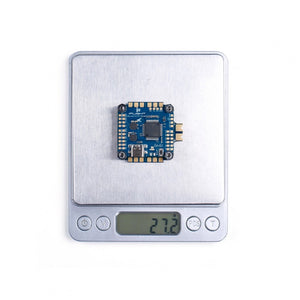

  • Weight: 7.5g
  • USB type-C



ESC // SucceX 50A
  • Top Features:

    - 8 layers single-board stacking PCB board

    - 4oz 1.6mm thick power board

    - 32bit FO51K86 MCU, 48kHz maximum clock speed

    - TDK MLCC Low ESR ceramic capacitors

    - Top grade NTMFS5C430NL MOSFET

    Specification:

    • MCU: STM32F051
    • Up tp 48kHz PWM frequency
    • Capacitance: 470uF/50V
    • Current Sensor: Yes
    • Input: 2-6S LIPO
    • Constant: 50A / Burst: 60A
    • BlHeli32 telemetry: Yes
    • BEC: No
    • Supports up to Dshot1200, Proshot, Oneshot, Multishot
    • Target: iFlight-BL32-4IN1
    • Weight:14.4g
    • Mounting pattern: 30.5*30.5mm/Φ3mm

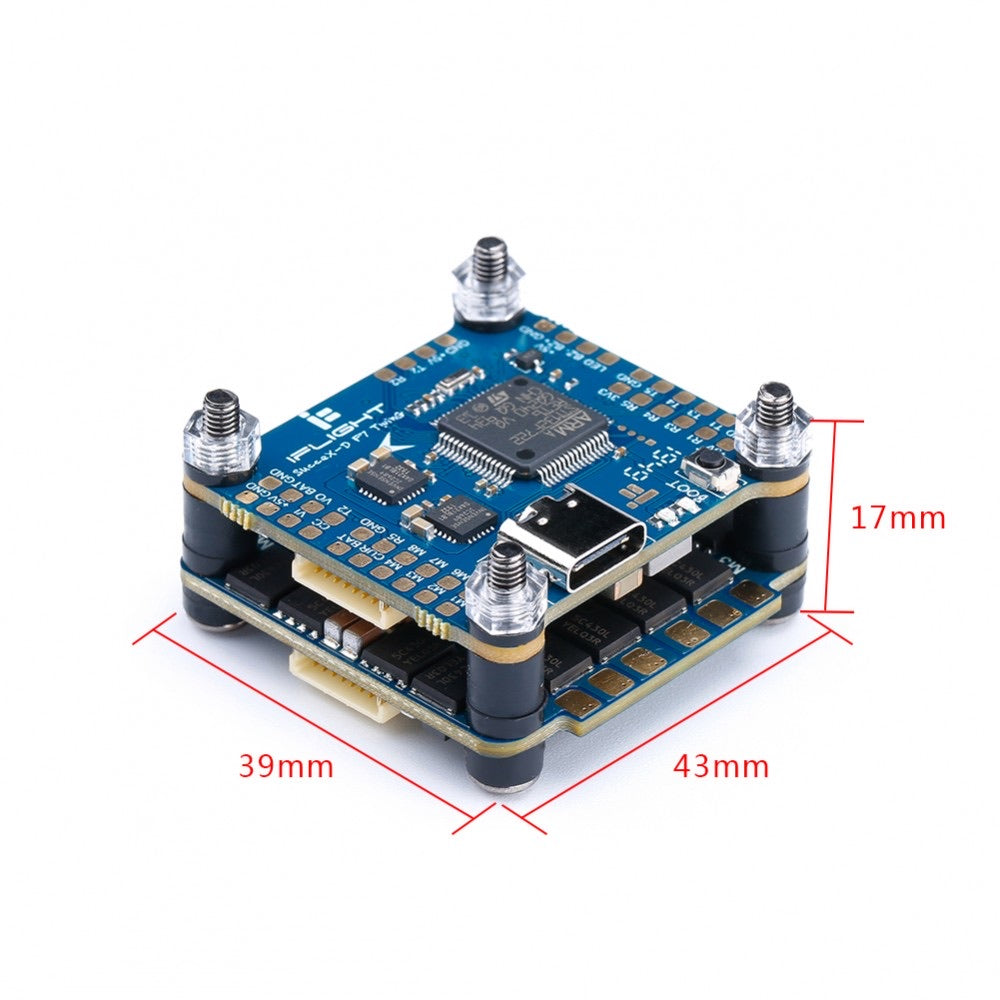

    • Dimensions43*39mm (including the power pads)
Package included:
  • 1pc x SucceX-D F7 V2.1 TwinG Flight Controller
  • 1pc x SucceX 50A 4in1
