FC
- MCU: STM32G473CEU6
- Gyro: ICM42688P
- Blackbox memory: 16MB
- Sensor: Voltage & Current
- BEC: 5V, Max. 2A

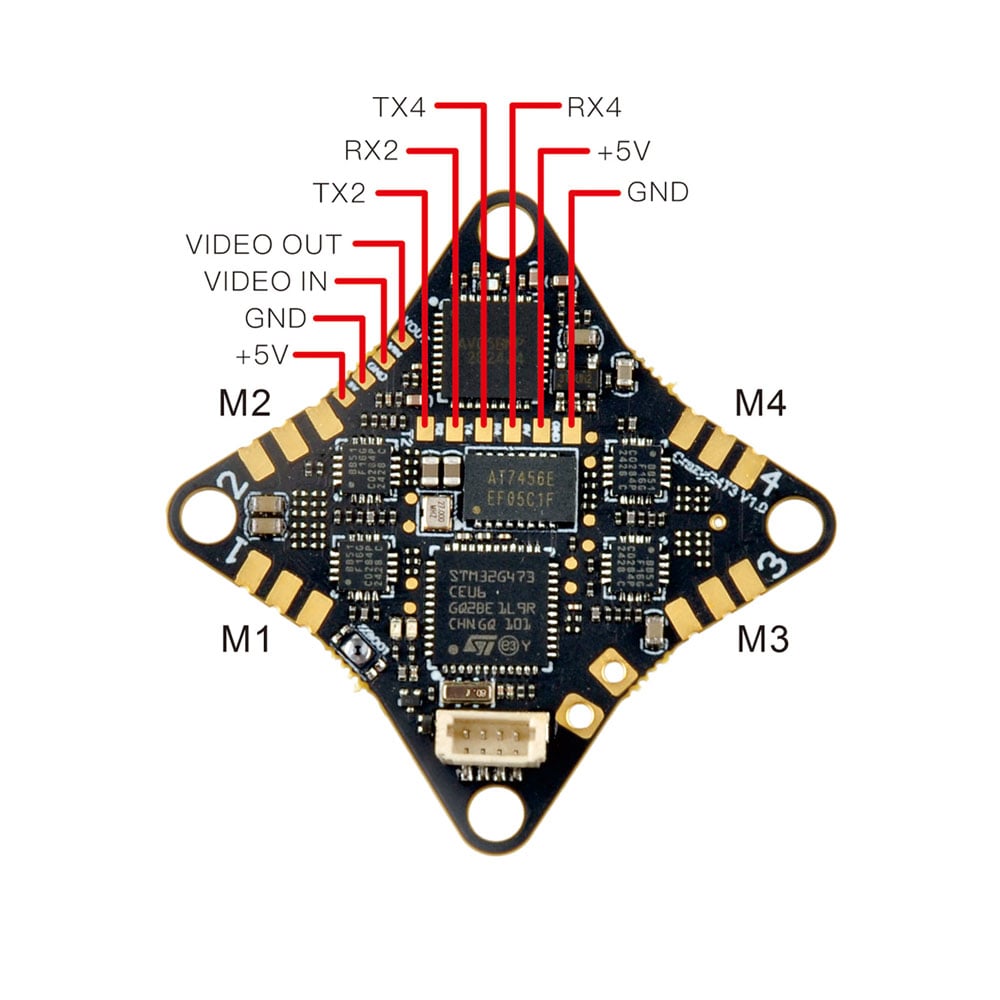

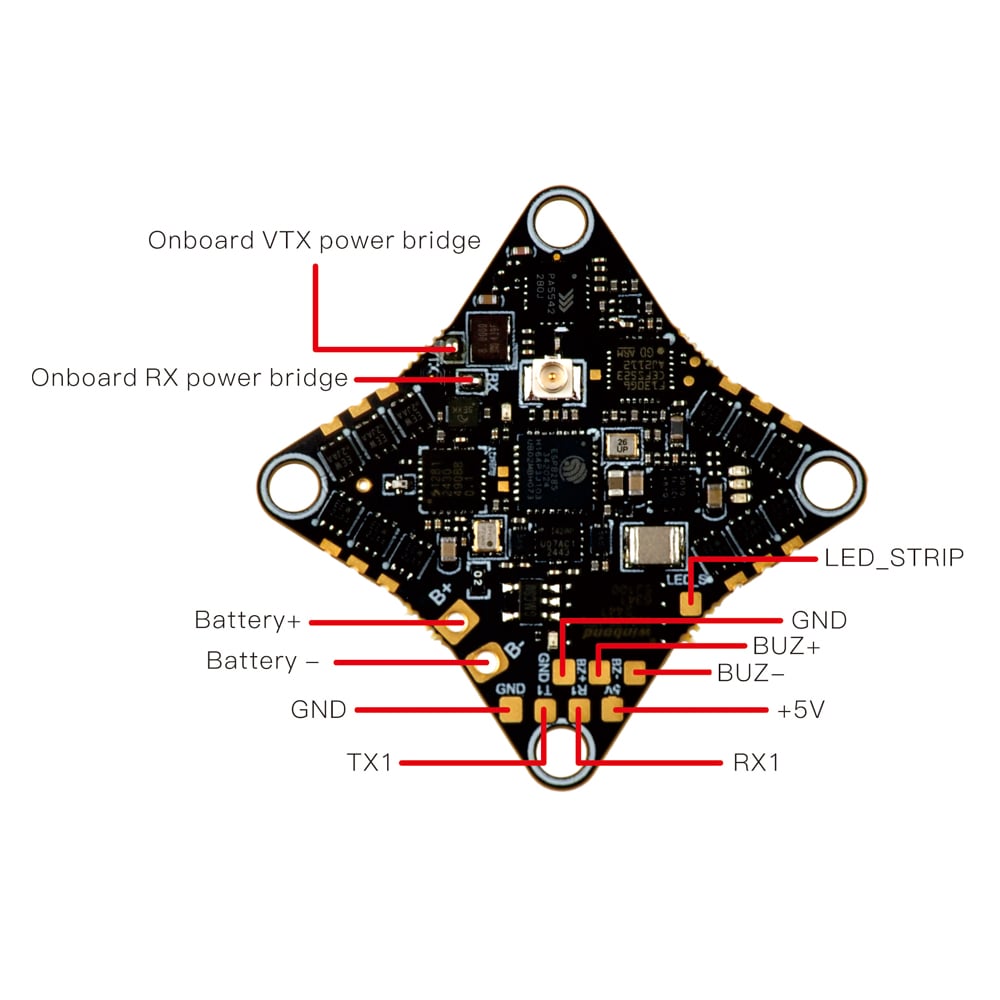

- UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)
- BetaFlight OSD: AT7456E
- ESC: 5A continuous
- RX: Serial ELRS 2.4GHz
- RX antenna: Enameled copper wire 31mm length
- Receiver firmware target: HappyModel EP1/EP2 2.4GHz RX
- OPENVTX: 5.8GHz 48 channels, Max. 400mW
- FC firmware target: CRAZYBEEG473
- USB port: SH1.0-4Pin
- Battery connector: A30
- Mounting hole size: 5mm x 25.5mm

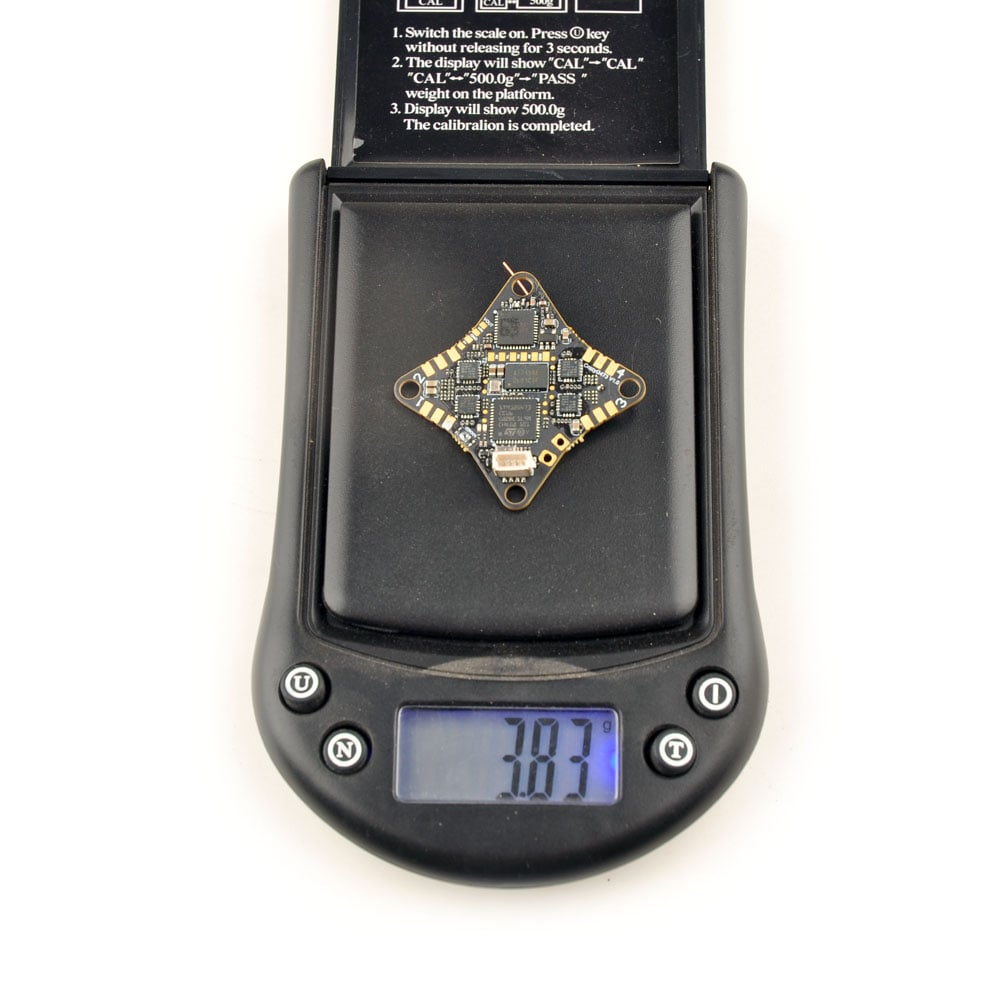

- Weight: 3.8g without pigtail and vtx antenna
ESC
- Power input: 1S Only
- Current: 5A continuous, 6A peak
- ESC firmware: V0.21.hex Bluejay
- Firmware target: A_X_5_96KHz
- Digital signal protocol: DShot300, DShot600
VTX
- OPENVTX Firmware
- Support firmware upgrade by openvtx configurator
- Output power: PIT/10/25/100/400
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.1
- Modulation type: FM
- Operating temperature: -10℃~+80℃
- Antenna port: IPEX1/U.FL
RECEIVER
- Serial ExpressLRS 2.4GHz
- Antenna: Enameled copper wire 31mm length
- Firmware target: HappyModel EP1/EP2 2.4GHz RX
- Telemetry output Power: <12dBm
- Compatible with ExpressLRS V3.x.x TX Module
- ExpressLRS firmware version 3.0.1
- Support flash firmware by WIFI
- Bind method is the same like all ExpressLRS 2.4GHz receivers
