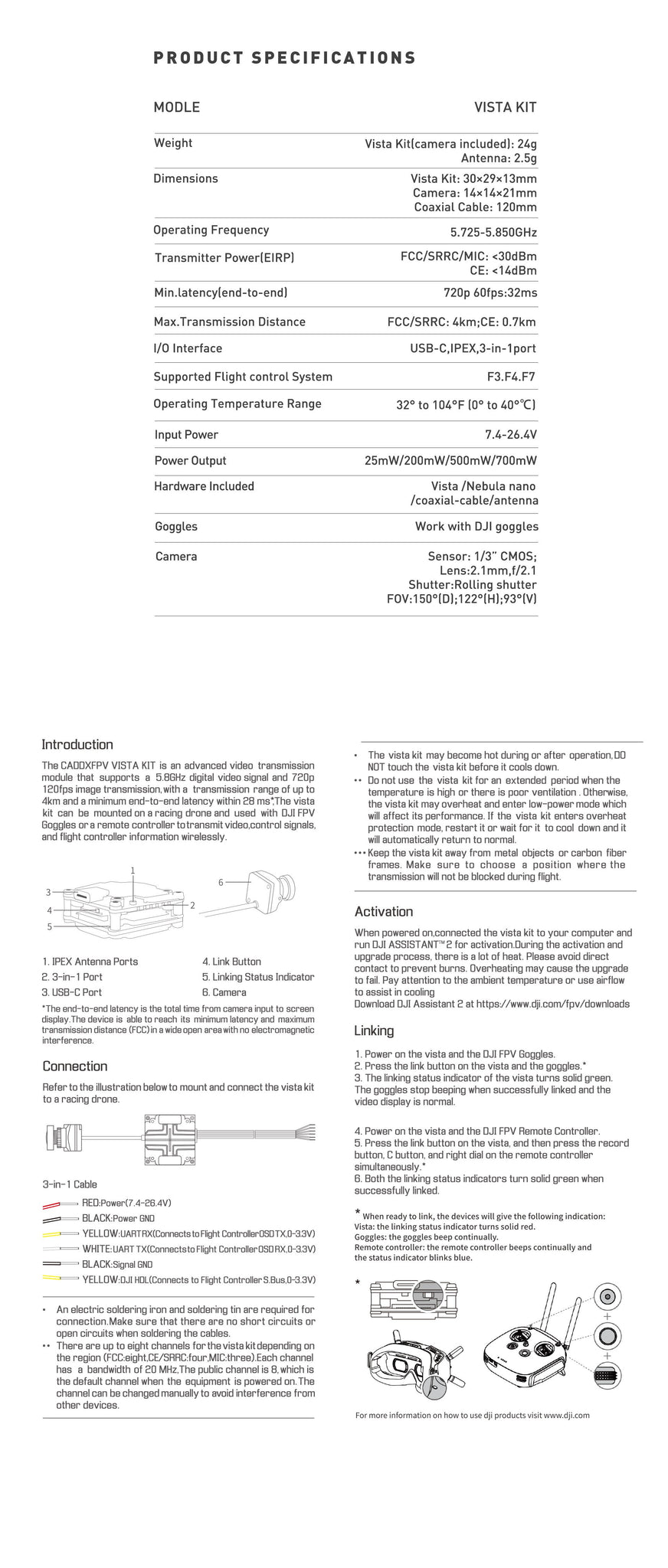

Specifications:
Model: Vista KIT
Weight: Vista KIT (including camera): 24g / antenna: 2.5g
size:
Vista series: 30x29x13mm
Camera: 14x14x21mm
Coaxial cable: 80mm / 120mm
Working frequency: 5.725-5.850GHz
Transmit Power (EIRP): FCC / SRRC / MIC: <30dBm, CE: <14dBm
Min. Latency (end to end): 720p 60fps: 32ms
Max.Transmission Distance: FCC / SRRC: 4km, CE: 0.7km
I / O interface: USB-C port, IPEX, 3-in-1 port
Support flight control system: F3, F4, F7
Operating temperature range: 32 ° to 104 ° F (0 ° C ~ 40 ° C)
Input power: 7.4-26.4V
Output power: 25mW / 200mW / 500mW / 700mW
Hardware included: Vista / Nebula nano / coaxial cable / Antenna.
Goggles: Work with DJI goggles.
Camera: Sensor: 1 / 3''CMOS
Lens: 2.1mm, f / 2.1
Shutter: Rolling shutter
FOV: 150 ° [D], 122 ° [H], 93 ° [V]
Package included:
1 x Caddx Nebula Nano Kit Vista HD Digital 5.8GHz FPV Transmitter VTX + 2.1mm 150 ° 720P 60fps FPV AIO Camera for DJI Digital Unit Googles
