Specifications

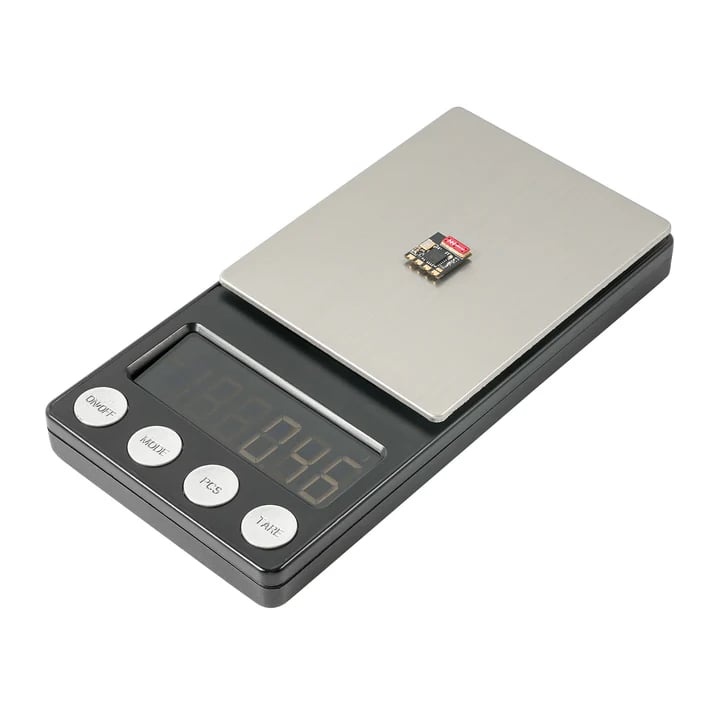

- Weight: 0.46g (Flat Antenna V1.2), 0.47g (Tower Antenna)
- Size: 11mm*10mm*3mm (Flat), 10mm*10mm*6mm (Tower)
- MCU: ESP8285
- Telemetry power: 17mW
- Frequency bands: 2.4GHz ISM
- Input voltage: 5V
- Antenna: Integrated SMD ceramic antenna
Diagram

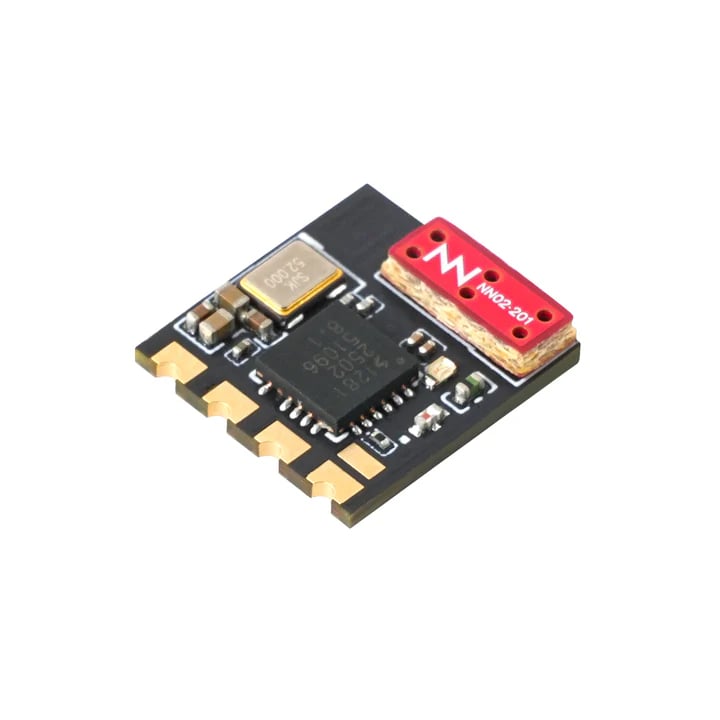

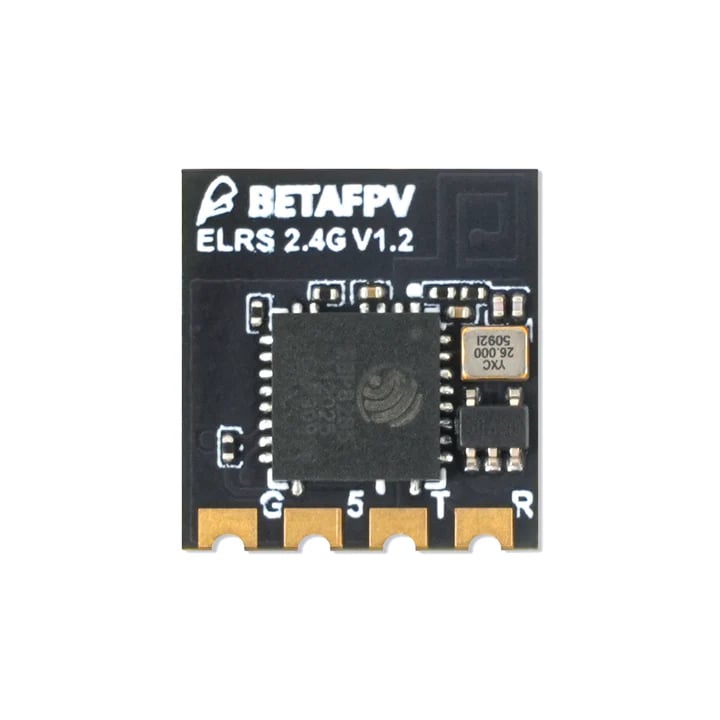

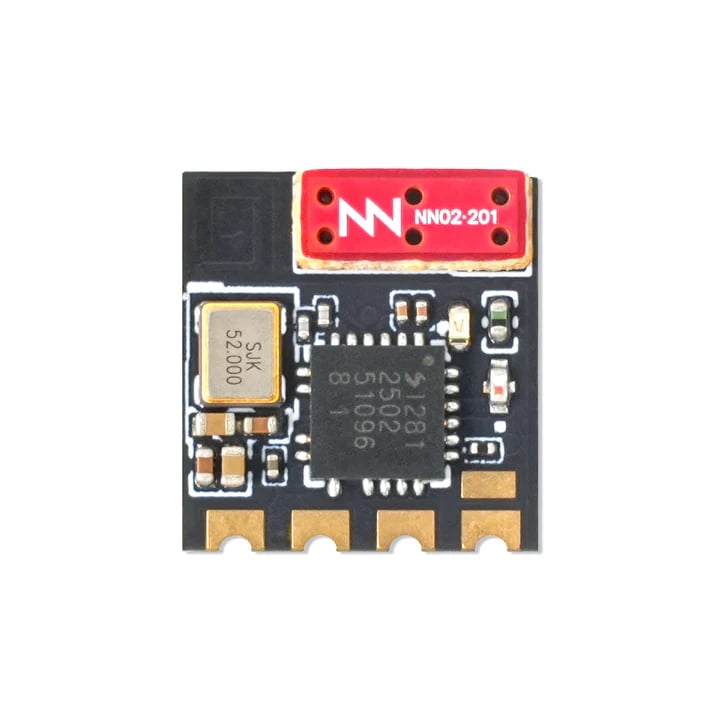

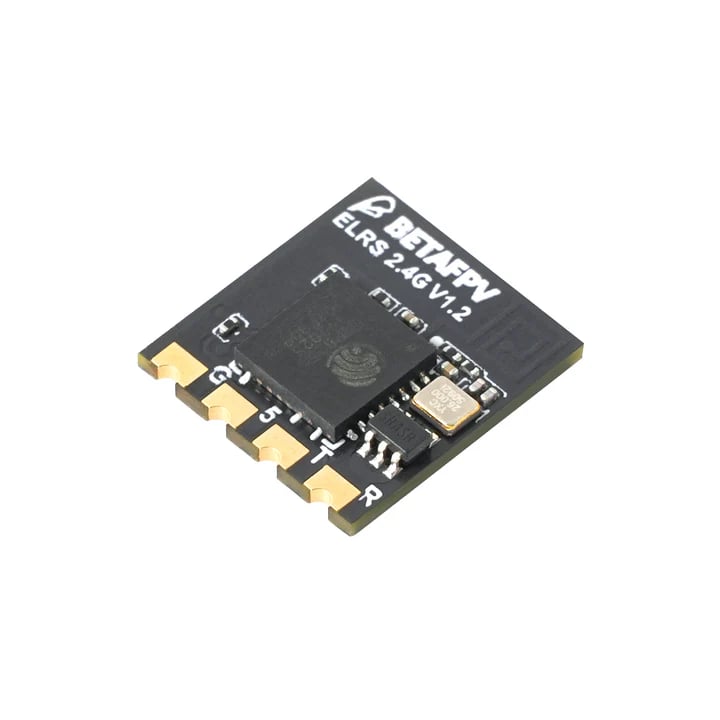

Flat antenna 2.4G V1.2:
Tower antenna:
BETAFPV ExpressLRS Receivers
Selecting the right receiver is crucial for optimal quadcopter and RC model performance. BETAFPV's comprehensive ExpressLRS lineup - featuring the ELRS Lite, Nano, Micro, and our newest SuperD receivers - delivers tailored solutions to meet every pilot's FPV requirements.
| SuperD RX | Micro RX | Nano RX | Lite RX | |
| Weight | 1.1g (RX only) | 3.5g (RX only) | 0.7g (RX only) | 0.46g (Flat V1.2) |
| Antenna | U.FL + T antenna | U.FL + T antenna | U.FL + T antenna | SMD ceramic antenna |
| MCU | ESP32-PICO-D4, dual SX1280 | ESP8285 |
ESP8285 |
ESP8285 |
| RF Chip | Dual SX1280 + Dual PA | SX128X | SX1280 + PA, SX1276 + PA | SX128X |
| Frequency | 2.4GHz ISM | 2.4GHz ISM | 2.4GHz ISM, 915MHz (FCC), 868MHz (EU) |
2.4GHz ISM |
| Telemetry Power | 100mW | 17mW | 100mW | 17mW |
| Serial Output Protocol | CRSF | PWM or CRSF | CRSF | CRSF |
| Model Type | FPV Drone, Fixed-wing aircraft | Fixed-wing aircraft, Helicopter, RC Cars, RC Boats | FPV Drone | FPV Drone, Whoop Drone |
