Gaoneng GNB 720mAh 100C 3S 11.4V LiHV Battery (XT30 Plug) – แบตเตอรี่โดรน FPV ซีรีส์ LiHV 3S ขนาดความจุ 720mAh อัตราดิสชาร์จ 100C/200C จ่ายไฟแรง นิ่ง เสถียร สำหรับโดรน FPV ไซส์ 2 ถึง 3 นิ้ว และ Toothpick / CineWhoop 3S
รายละเอียดสินค้า: Gaoneng GNB 720mAh 100C 3S 11.4V (HV) คือแบตเตอรี่ลิเธียมไฮโวลเทจ (LiHV) ระดับพรีเมียมจากแบรนด์ Gaoneng (GNB) ที่ออกแบบมาสำหรับโดรน FPV ขนาดเล็กถึงปานกลางระบบไฟ 3S (เช่น โดรนไซส์ 2 นิ้ว, 2.5 นิ้ว, 3 นิ้ว, Toothpick และ CineWhoop ไซส์เล็ก) มอบความจุแน่น 720mAh ช่วยเพิ่มระยะเวลาการบิน (Flight Time) ให้ยาวนานยิ่งขึ้นโดยยังคงน้ำหนักตัวลำที่สมดุล
แบตเตอรี่รุ่นนี้เป็นประเภท LiHV (ชาร์จไฟได้สูงสุด 4.35V/Cell) ให้แรงดันไฟเริ่มต้น 11.4V (สูงสุด 13.05V) ซึ่งสูงกว่าแบตเตอรี่ LiPo 3S 11.1V ปกติ ส่งผลให้มอเตอร์มีรอบ RPM และแรงบิด (Punch) เพิ่มขึ้นอย่างเห็นได้ชัด มาพร้อมอัตราการจ่ายไฟต่อเนื่อง 100C (Burst Peak สูงสุด 200C) และความต้านทานภายในต่ำ ช่วยลดอาการแรงดันไฟตกวูบ (Low Voltage Sag) ขณะอัดคันเร่งด่วน พร้อมขั้วต่อ XT30 มาตรฐานที่นำกระแสไฟได้อย่างเสถียรและปลอดภัย
คุณสมบัติเด่น:
-
แบตเตอรี่ LiHV 11.4V (High Voltage): ให้พาวเวอร์และรอบมอเตอร์สูงกว่าแบต LiPo 3S ทั่วไป ตอบสนองคันเร่งได้อย่างฉับไว
-
อัตราการจ่ายไฟ 100C / Peak 200C: จ่ายกระแสไฟแรงเสถียร รองรับการเร่งแซงและการเล่นท่า Freestyle ได้อย่างนุ่มนวล
-
ความจุแน่น 720mAh: เพิ่มระยะเวลาการบินให้ยาวนานยิ่งขึ้น เหมาะทั้งสายบินถ่ายวิดีโอ (Cinematic) และสายบินเล่นทั่วไป
-
ขั้วต่อ XT30 มาตรฐาน: พร้อมสายซิลิโคนทนความร้อน นำกระแสไฟได้ดี ทนต่อความร้อนสูงขณะบิน
-
น้ำหนักเบาและขนาดกะทัดรัด: ออกแบบมาเพื่อรักษาสมดุล Center of Gravity (CG) ของโดรนไซส์ 2–3 นิ้วได้อย่างดีเยี่ยม

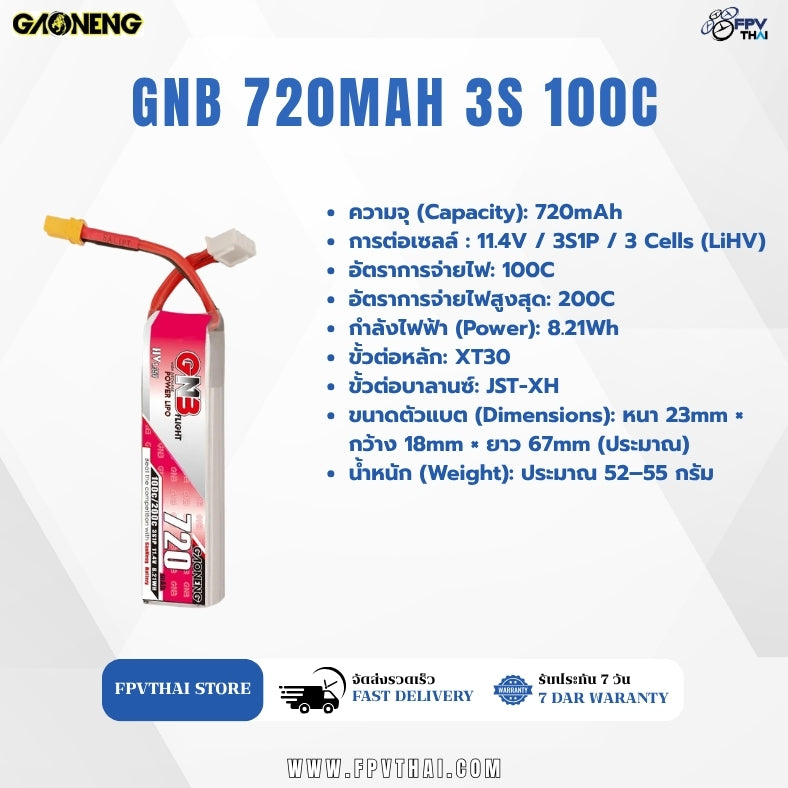

ข้อมูลทางเทคนิค (Specifications):
-
แบรนด์: Gaoneng (GNB)
-
ความจุ (Capacity): 720mAh
-
การต่อเซลล์ (Configuration): 11.4V / 3S1P / 3 Cells (LiHV)
-
อัตราการจ่ายไฟต่อเนื่อง (Continuous Discharge Rate): 100C
-
อัตราการจ่ายไฟสูงสุด (Max/Burst Discharge Rate): 200C
-
กำลังไฟฟ้า (Power): 8.21Wh
-
ขั้วต่อหลัก (Main Connector): XT30 (พร้อมสายบาลานซ์ JST-XH 3S)
-
ขั้วต่อบาลานซ์ (Balance Connector): JST-XH
-
ขนาดตัวแบต (Dimensions): หนา 23mm × กว้าง 18mm × ยาว 67mm (ประมาณ)
-
น้ำหนัก (Weight): ประมาณ 52–55 กรัม
Gaoneng GNB 720mAh 100C 3S 11.4V LiHV Battery with XT30 Plug – High-Voltage Power Pack for 2"-3" FPV Drones, Toothpicks & 3S CineWhoops
Product Description: The Gaoneng GNB 720mAh 100C 3S 11.4V LiHV Battery is a high-performance power solution designed specifically for 3S micro FPV quads, 2" to 3" Toothpicks, and light CineWhoops. Featuring a generous 720mAh capacity in a lightweight footprint, this pack provides the perfect balance between extended airtime and agile flight performance.
As a High-Voltage (LiHV) pack, it charges up to 4.35V per cell (13.05V total), delivering elevated initial voltage, punchier throttle response, and higher motor RPM than standard 11.1V 3S LiPo batteries. Combined with a solid 100C continuous discharge rate (200C burst) and low internal resistance, the GNB 720mAh pack minimizes voltage sag under throttle punch-outs. Factory-fitted with an efficient XT30 connector, it is ready for high-demand micro FPV flying.
Key Features:
-
High-Voltage LiHV Chemistry (11.4V Nominal / 13.05V Max): Provides extra throttle punch, higher power density, and increased motor output.
-
100C Continuous / 200C Burst Rating: Ensures linear power delivery and smooth voltage maintenance during fast maneuvers.
-
720mAh Optimized Capacity: Offers longer flight duration without adding excessive weight to 2"-3" drone frames.
-
Standard XT30 Connector: Heavy-duty silicone wires with gold-plated XT30 plug for low-resistance current output.
-
Compact & Lightweight: Fits neatly on micro battery trays while maintaining optimal center-of-gravity (CG).
Specifications:
-
Brand: Gaoneng (GNB)
-
Capacity: 720mAh
-
Configuration: 11.4V / 3S1P / 3 Cells (LiHV)
-
Continuous Discharge Rate: 100C
-
Max Burst Discharge Rate: 200C
-
Energy Power: 8.21Wh
-
Main Connector: XT30
-
Balance Connector: JST-XH
-

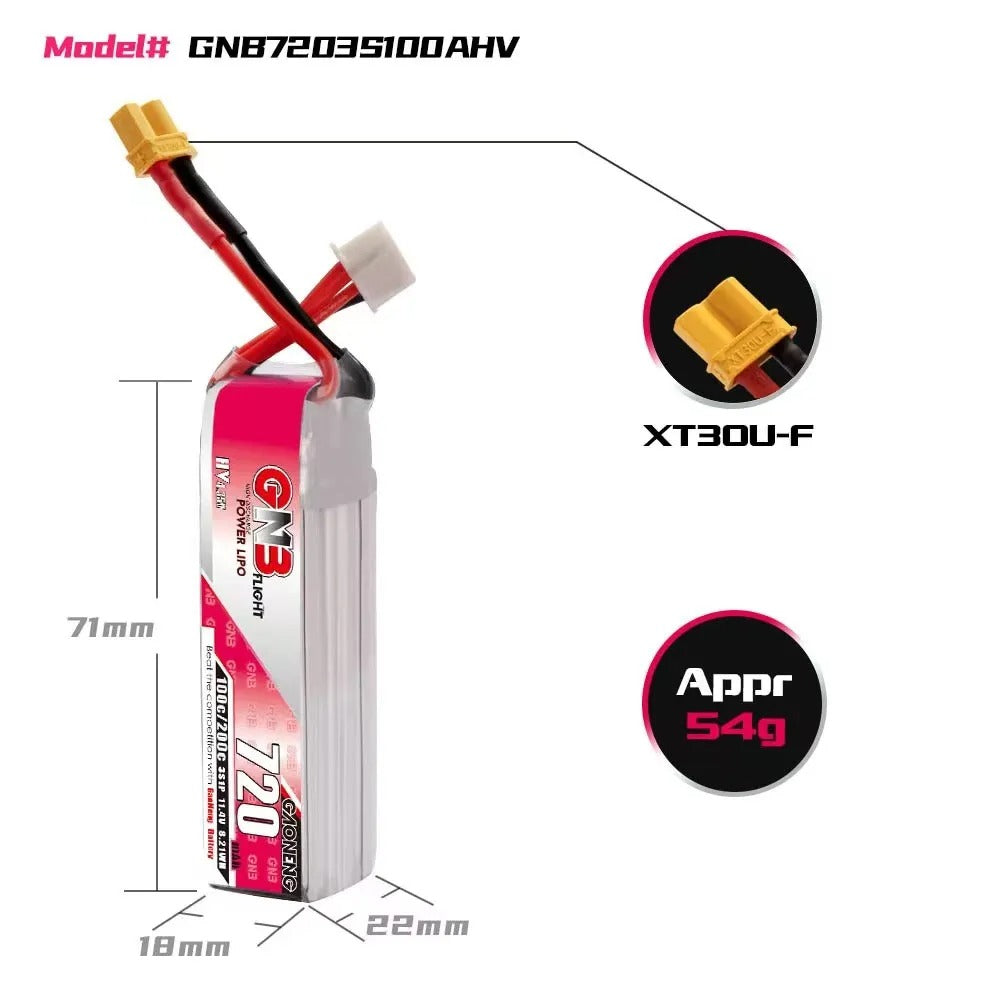

Dimensions: ~23mm (T) × 18mm (W) × 67mm (L)
-
Weight: Approx. 52g–55g
